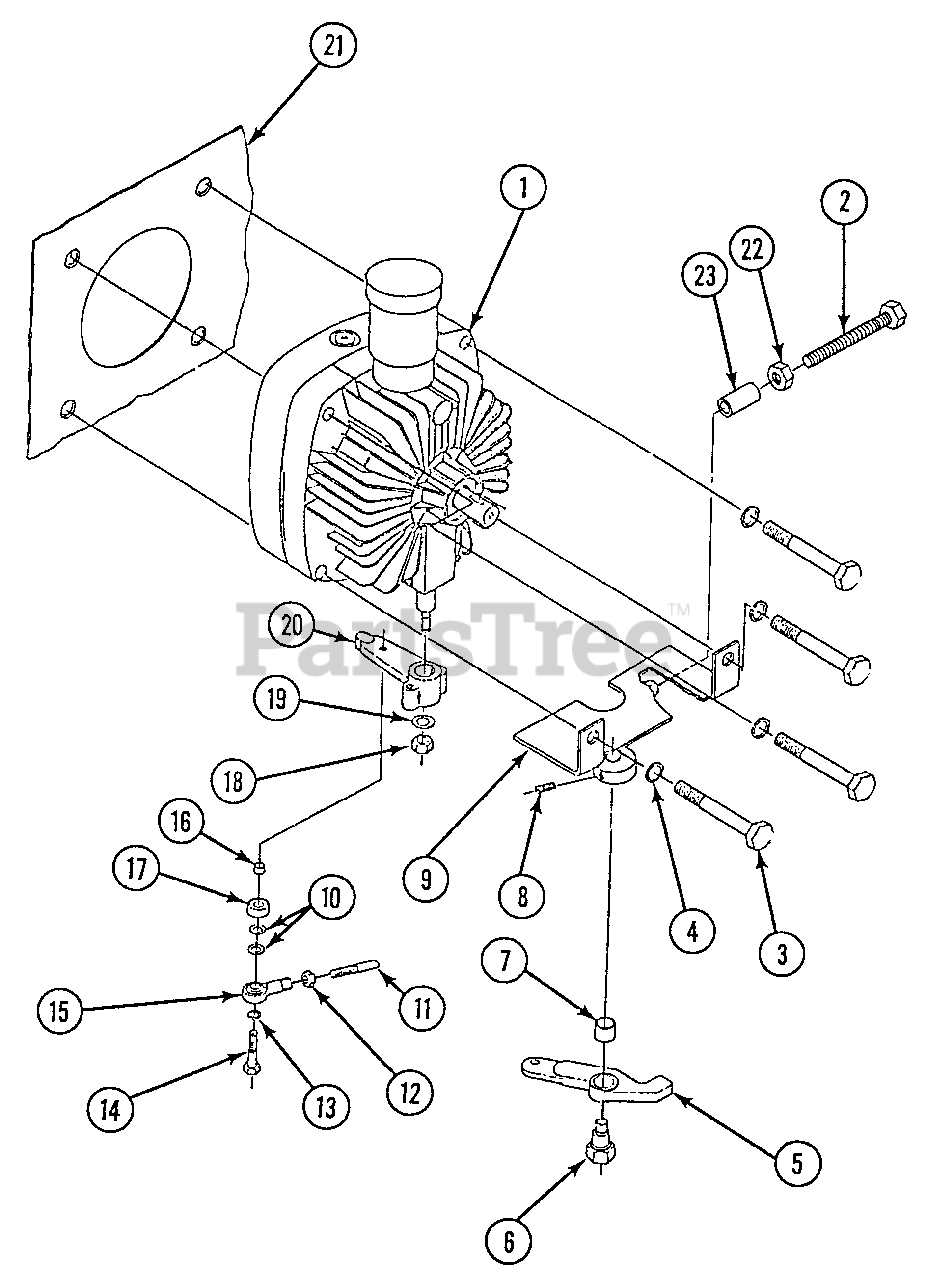

Z 4801M (80001) - Snapper 48" Mower Deck Assembly Joystick Hydrostat Parts Parts Diagram

48" Mower Deck Assembly

Joystick Hydrostat Parts Parts Diagram

  • Title

1

Snapper 7079176

HYDRO, LEFT

$

$

Not available

1

Snapper 7079177

HYDRO, RIGHT

$

$

Not available

2

Snapper 7079584

CAPSCREW, 5/16-16 X 3 FULL THRD. GR.2
(Superseded to 7079584YP)

$6.49

$

Usually ships in 2-12 days

0

3

Snapper 7090590

CAPSCREW, 3/8-16 X 3 GR. 5
(Superseded to 7090590YP)

Note: Was 79504

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7079268

LOCKWASHER, 3/8 SPLIT SPRING
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

5

Snapper 7079505

CAM BAR

$

$

Currently unavailable

6

Snapper 7079506

CENTERING CAM

$

$

Currently unavailable

7

Snapper 7079507

BUSHING, BRONZE

$

$

Currently unavailable

8

Snapper 7079571

SCREW, HX. SCKT 1/2 DOG SET

$

$

Currently unavailable

9

Snapper 7079509

CENTERING CAM BRKT. WLDT. LEFT

$

$

Currently unavailable

9

Snapper 7079508

CENTERING CAM BRKT. WLDT. RIGHT

$

$

Currently unavailable

10

Snapper 7079575

WASHER, 6.4 MM I.D. (ZINC PLATED)

Note: Was 79586

$

$

Not available

11

Snapper 7079510

PUSH-PULL CABLE, LEFT

$

$

Not available

11

Snapper 7079511

PUSH-PULL CABLE, RIGHT

$

$

Not available

12

Snapper 7090095

NUT, 1/4-28 (COMES WITH #11)
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7090052

LOCKWASHER, 1/4 SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

14

Snapper 7079577

CAPSCREW, 1/4-20 X 1-1/2 GR.5
(Superseded to 703234)

Note: Was 79588

$4.49

$

In Stock, only 4 left!

0

15

Snapper 7079513

BALL JOINT, FEMALE 1/4-28
(Superseded to 7079513YP)

$23.99

$

Usually ships in 2-12 days

0

16

Snapper 7079514

BUSHING BALL JOINT

$

$

Currently unavailable

17

Snapper 7079515

BEARING, CAM

$

$

Currently unavailable

18

Snapper 7091299

NUT, 3/8-16
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7090517

WASHER, 3/8 STD. FLAT
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

20

Snapper 7079516

CONTROL ARM

$

$

Currently unavailable

21

Snapper 7079498

SIDE PLATE WLDT. LEFT

$

$

Currently unavailable

21

Snapper 7079499

SIDE PLATE WLDT. RIGHT

$

$

Currently unavailable

22

Snapper 7079583

NUT, 5/16-18 PLAIN

$

$

Currently unavailable

23

Snapper 7079591

SPACER, STOP

$

$

Currently unavailable
