Z 4801M (80001) - Snapper 48" Mower Deck Assembly Final Drive Wheel W/Welded Hub Parts Diagram

48" Mower Deck Assembly

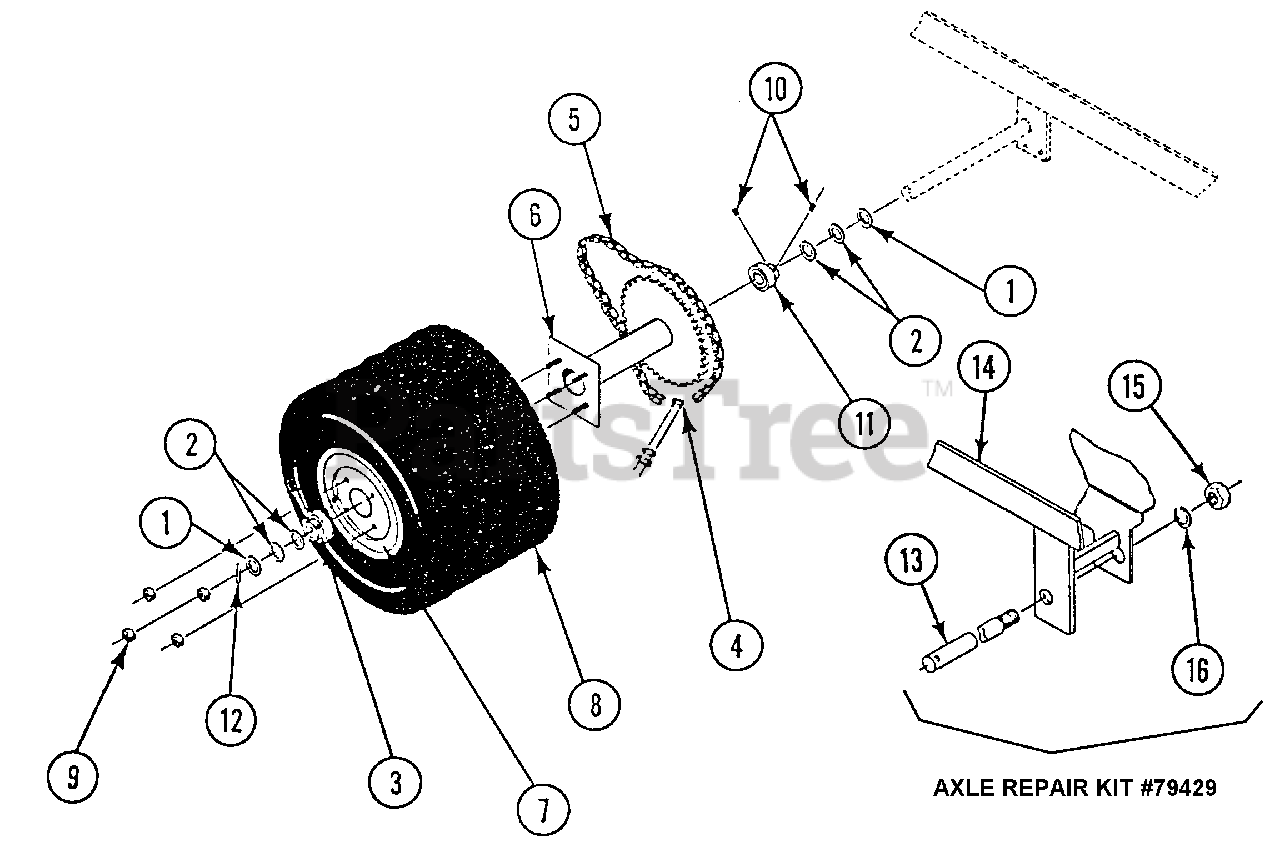

Final Drive Wheel W/Welded Hub Parts Diagram

  • Title

1

Snapper 7079019

WASHER, 1-1/2 OD X 1 ID X 1/16 THK

$

$

Not available

2

Snapper 7079020

WASHER l-1/2 OD X 1 ID X 1/8 THK

$

$

Not available

3

Snapper 7079330

BEARINGS 1" BORE, W/COLLAR
(Superseded to 7079330YP)

$56.99

$

Usually ships in 2-12 days

0

4

Snapper 7079160

MASTER LINK, #50 CHAIN
(Superseded to 7079160YP)

$3.99

$

In Stock, only 1 left!

0

5

Snapper 7079084

CHAIN, #50 ("LB" FRAME) 56 ROLLERS
(Superseded to 7079084YP)

$42.99

$

Usually ships in 2-12 days

0

5

Snapper 7079152

CHAIN, #50 ("S" & "LK" FRAME) 60 ROLLERS
(Superseded to 7079152YP)

$54.99

$

Usually ships in 2-12 days

0

6

Snapper 7079065

DRIVE WHEEL HUB WELDMENT
(Superseded to 7079065YP)

Note: WHEN REPLACING USE P/N 79541, CAST DRIVE WHEEL HUB, P/N 79565, CAPSCREW, 1/2"-20 X 1" GR.5 (4), P/N 90254, LOCKWASHER, 1/2" SPLIT SPRING (4), P/N 79539, SPROCKET, P/N 79543, LUG BOLT, 1/2"-20 (4)

$267.99

$

Usually ships in 2-12 days

0

Snapper 7079541

CAST DRIVE WHEEL HUB

Note: Use When Replacing 79065, Drive Wheel Hub Weldment

$

$

Currently unavailable

Snapper 7090392

CAPSCREW, 1/2"-20 X 1" GR.5
(Superseded to 703880)

Note: Was 79565 (Use When Replacing 79065, Drive Wheel Hub Weldment)

$4.49

$

In Stock, Qty 20+

0

Snapper 7090254

LOCKWASHER, 1/2" SPLIT SPRING
(Superseded to 5025331SM)

Note: Use When Replacing 79065, Drive Wheel Hub Weldment

$3.49

$

In Stock, Qty 20+

0

Snapper 7079539

SPROCKET
(Superseded to 7079539YP)

Note: Use When Replacing 79065, Drive Wheel Hub Weldment

$94.99

$

Usually ships in 2-12 days

0

Snapper 7079543

LUG BOLT, 1/2"-20
(Superseded to 7079543YP)

Note: Use When Replacing 79065, Drive Wheel Hub Weldment

$5.49

$

Usually ships in 2-12 days

0

7

Snapper 7079162

WHEEL, W/RIM & TIRE ("S" FRAME)
(Superseded to 7079162YP)

$219.99

$

Usually ships in 2-12 days

0

7

Snapper 7079172

WHEEL, W/RIM & TIRE ("LB" & "LK" FRAMES)
(Superseded to 7079172YP)

$222.99

$

Usually ships in 2-12 days

0

8

Snapper 7079162

TIRE 18/9.50 X 8 ("S" FRAME)
(Superseded to 7079162YP)

Note: Was 79337

$219.99

$

Usually ships in 2-12 days

0

8

Snapper 7079338

TIRE 20/10 X 10 ("LB" & "LK" FRAMES)

$

$

Not available

9

Snapper 7079293

LUG NUT, 60 DEG, 1/2-20

$

$

Currently unavailable

10

Snapper 7079288

SETSCREW, 1/4-28 X 5/16, W/NYLOC
(Superseded to 7079288YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7079330

BEARINGS 1" BORE, WITH COLLAR
(Superseded to 7079330YP)

$56.99

$

Usually ships in 2-12 days

0

11

Snapper 7079331

WITHOUT COLLAR
(Superseded to 1711534SM)

$46.99

$

Usually ships in 2-12 days

0

12

Snapper 7079364

PIN, SPIROL, 5/16 X 1-1/2, STD DUTY
(Superseded to 7079364YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7079428

AXLE, REMOVEABLE

$

$

Currently unavailable

14

Snapper 7079540

FRAME

$

$

Currently unavailable

15

Snapper 7079439

NUT, 7/8-14

$

$

Currently unavailable

16

Snapper 7079440

LOCKWASHER, 7/8 SPLIT SPRING

$

$

Currently unavailable

79429

Snapper 7079429

AXLE REPAIR KIT

Note: Use When Replacing 79065, Drive Wheel Hub Weldment

$

$

Currently unavailable
