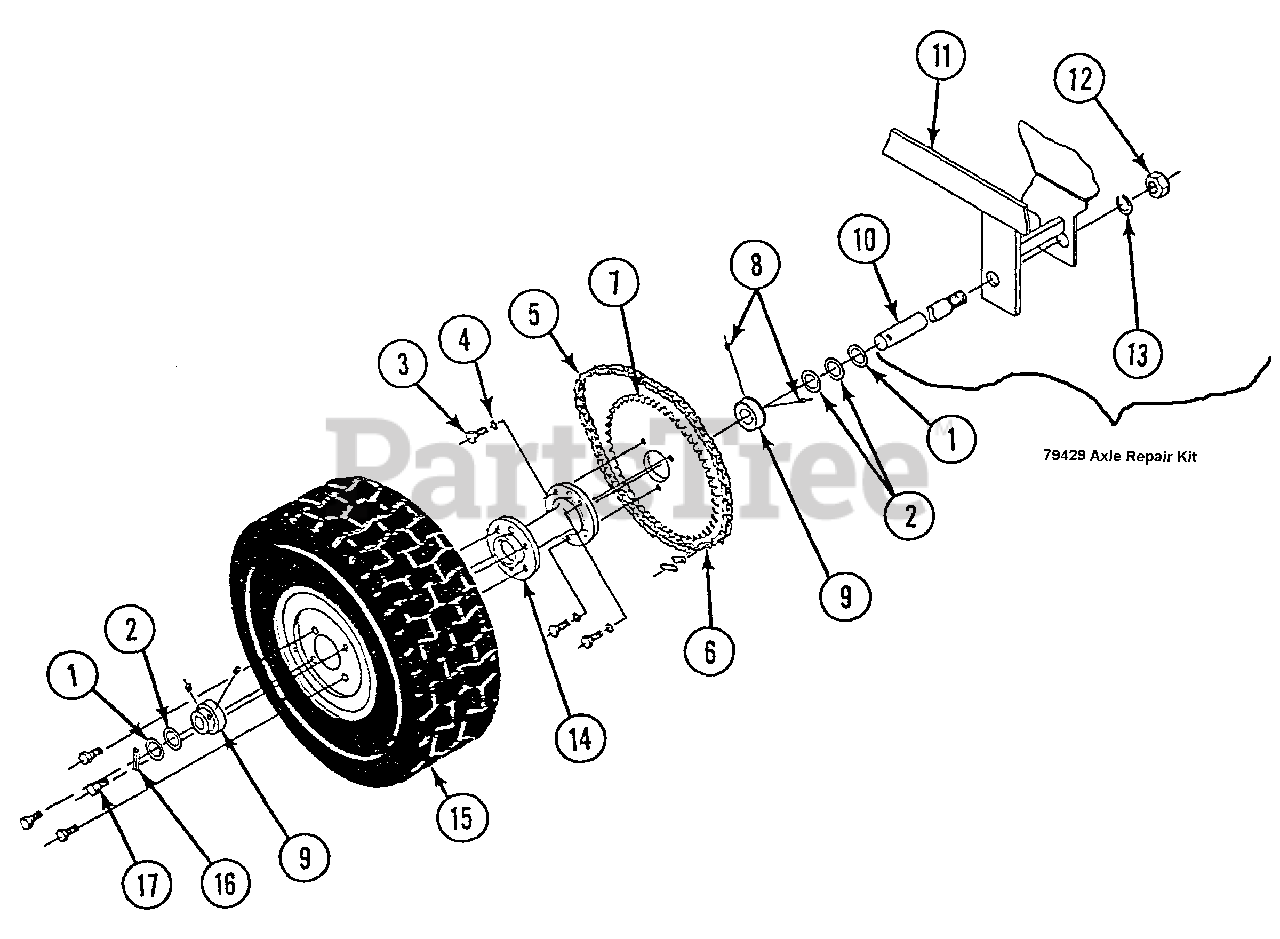

Z 4801M (80001) - Snapper 48" Mower Deck Assembly Final Drive Parts W/Cast Hub Parts Diagram

48" Mower Deck Assembly

Final Drive Parts W/Cast Hub Parts Diagram

  • Title

1

Snapper 7079019

WASHER, 1" SPECIAL

$

$

Not available

2

Snapper 7079020

WASHER, 1" X 10 GA.

$

$

Not available

3

Snapper 7090392

CAPSCREW, 1/2-20 X 1 HHCS GR.5
(Superseded to 703880)

Note: Was 79565

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7090254

LOCKWASHER, 1/2 SPLIT SPRING
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7079084

CHAIN #50, 56 ROLLERS
(Superseded to 7079084YP)

$42.99

$

Usually ships in 2-12 days

0

6

Snapper 7079160

MASTER LINK #50 CHAIN
(Superseded to 7079160YP)

$3.99

$

In Stock, only 1 left!

0

7

Snapper 7079539

SPROCKET
(Superseded to 7079539YP)

$94.99

$

Usually ships in 2-12 days

0

8

Snapper 7079288

SETSCREW, 1/4-28 X 5/16 W/NYLOC
(Superseded to 7079288YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7079330

BEARING, 1" BORE
(Superseded to 7079330YP)

$56.99

$

Usually ships in 2-12 days

0

10

Snapper 7079428

AXLE, REMOVEABLE

$

$

Currently unavailable

11

Snapper 7079540

FRAME

$

$

Currently unavailable

12

Snapper 7079439

NUT, 7/8-14

$

$

Currently unavailable

13

Snapper 7079440

LOCKWASHER, 7/8 SPLIT SPRING

$

$

Currently unavailable

14

Snapper 7079541

HUB, DRIVE WHEEL

$

$

Currently unavailable

15

Snapper 7079162

TIRE
(Superseded to 7079162YP)

$219.99

$

Usually ships in 2-12 days

0

16

Snapper 7079364

PIN SPIROL, 5/16 X 1-1/2 STD. DUTY
(Superseded to 7079364YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7079543

LUG BOLT, 1/2-20
(Superseded to 7079543YP)

$5.49

$

Usually ships in 2-12 days

0

79429

Snapper 7079429

AXLE REPAIR KIT

$

$

Currently unavailable
