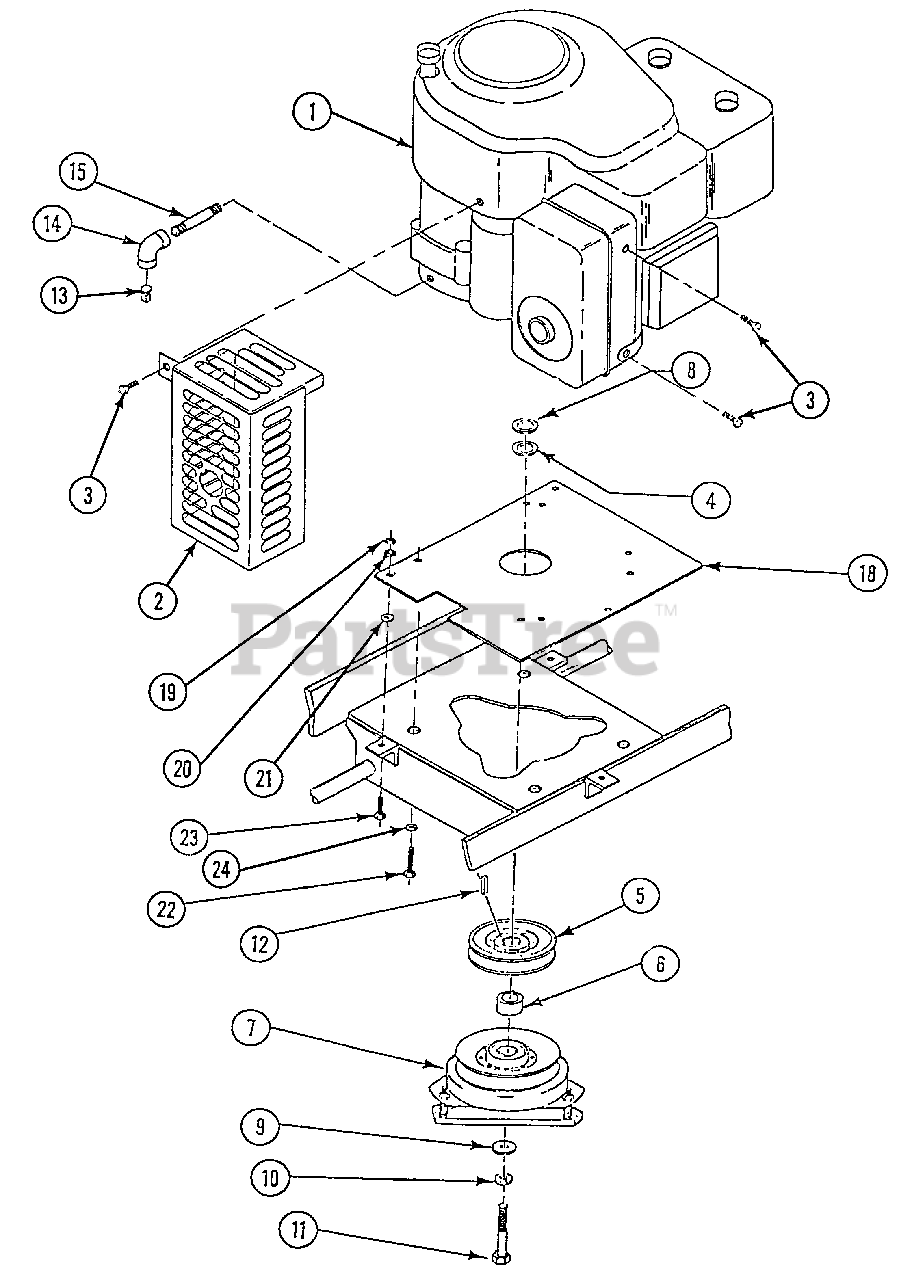

Z 4801M (80001) - Snapper 48" Mower Deck Assembly Engine Assembly 12.5 HP Van Guard Parts Diagram

48" Mower Deck Assembly

Engine Assembly 12.5 HP Van Guard Parts Diagram

  • Title

1

--

* ENGINE, 12.5 HP B&S VAN GUARD Mod. 404707-0019-01

$

$

Not available

2

Snapper 7079554

MUFFLER GUARD WLDT.

$

$

Currently unavailable

3

Snapper 7079555

CAPSCREW, M6 X 1 X 12

$

$

Not available

4

Snapper 7079020

WASHER, 1" 10 GA.

$

$

Not available

5

Snapper 7079556

PULLEY, BK 52-1
(Superseded to 7079556YP)

$70.99

$

Usually ships in 2-12 days

0

6

Snapper 7079071

SPACER PULLEY/ELECTRIC CLUTCH
(Superseded to 7079071YP)

$16.99

$

Usually ships in 2-12 days

0

7

Snapper 7079446

CLUTCH, ELECTRIC #5210-17
(Superseded to 7079446YP)

$542.99

$

Usually ships in 2-12 days

0

8

Snapper 7079019

WASHER, 1" SPECIAL

$

$

Not available

9

Snapper 7079022

WASHER, 15/32" I.D.

$

$

Not available

10

Snapper 7091301

LOCKWASHER, 7/16 SPLIT SPRING
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7023388

CAPSCREW, 7/16-12 X 3" GR.5

Note: Was 79314

$

$

Not available

12

Snapper 7079000

SQUARE KEY, 1/4 X 1"
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 2 left!

0

13

Snapper 7079367

3/8 PIPE PLUG, BLACK

$

$

Not available

14

Snapper 7079210

ELBOW, 3/8 90 DEGREE, SCH. 40

$

$

Currently unavailable

15

Snapper 7079209

NIPPLE, 3/8 X 3" SCH. 401 BLACK

$

$

Currently unavailable

18

Snapper 7079114

MOTOR MOUNTING PLATE

$

$

Not available

19

Snapper 7090789

NUT, 5/16-24 UNF, GR.5

Note: Was 79324

$

$

Not available

20

Snapper 7079267

LOCKWASHER, 5/16 HEAVY SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7090188

WASHER, 5/16 STD. FLAT
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 2 left!

0

22

Snapper 7090568

CAPSCREW, 3/8-16 X 1" GR.5

$

$

Currently unavailable

23

Snapper 7090238

CAPSCREW, 5/16-24 X 1" GR.5
(Superseded to 703301)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7079268

LOCKWASHER, 3/8 SPLIT SPRING
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

Snapper 7079241

NOTICE TAG

$

$

Currently unavailable

Snapper 7079237

DECAL, PERIODICALLY CLEAN
(Superseded to 7079237YP)

$5.99

$

Usually ships in 2-12 days

0

Snapper 7079556

DRIVE PULLEY
(Superseded to 7079556YP)

Note: For Models Z1251BV & Z1251BVJ

$70.99

$

Usually ships in 2-12 days

0

Snapper 7079517

HYDRO DRIVE

Note: For Models Z1251BV & Z1251BVJ

$

$

Currently unavailable

Snapper 7079580

DRIVE BELT
(Superseded to 7079580YP)

Note: Was 79564 (For Models Z1251BV & Z1251BVJ)

$24.99

$

Usually ships in 2-12 days

0
