Z 4801M (80001) - Snapper 48" Mower Deck Assembly Deck Lift Handle ("LB" & "LK" Frame) Parts Diagram

48" Mower Deck Assembly

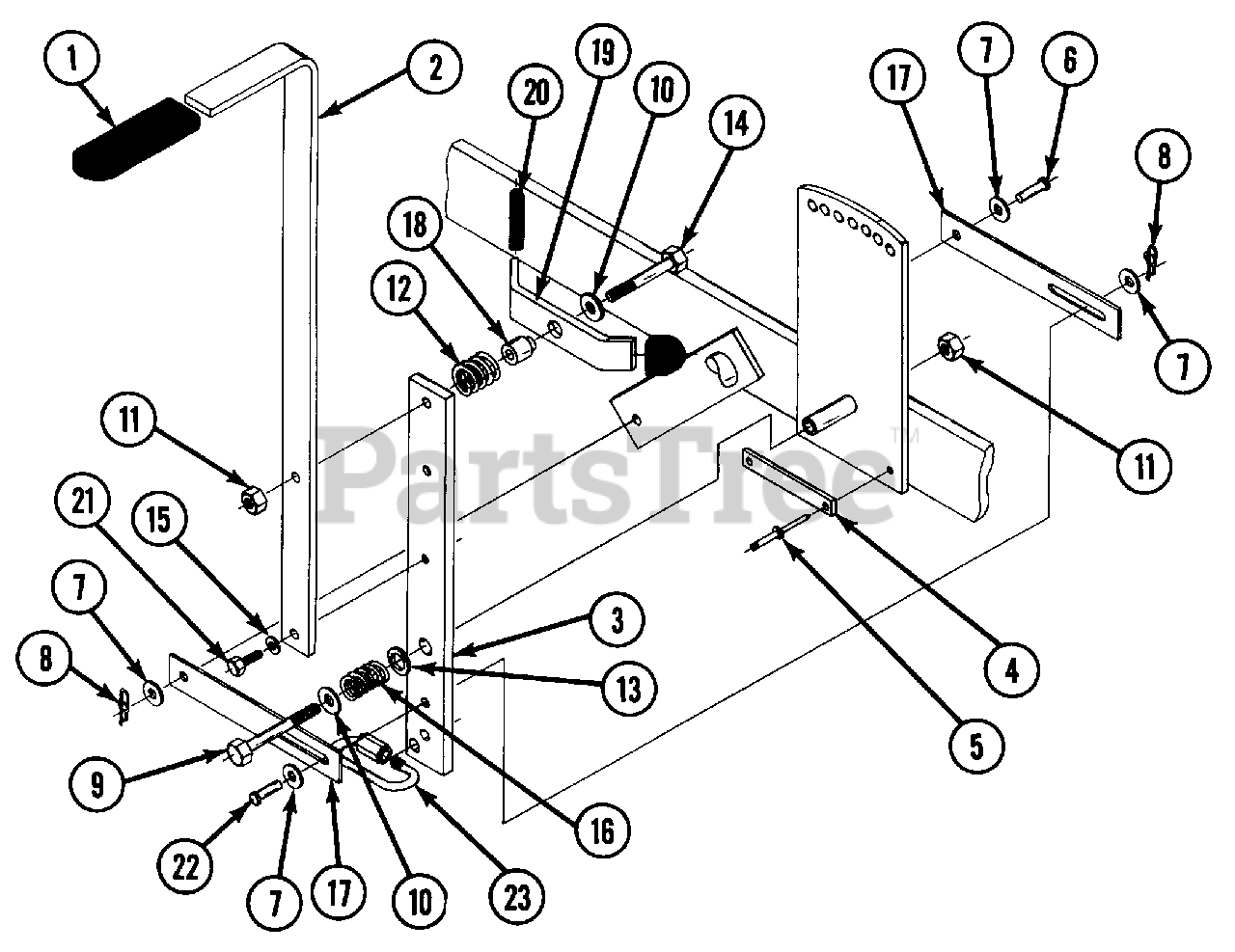

Deck Lift Handle ("LB" & "LK" Frame) Parts Diagram

  • Title

1

Snapper 7079213

GRIP, VINYL, 1/4 X 1
(Superseded to 7079213YP)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 7079026

HANDLE, DECK LIFT, TOP
(Superseded to 7079026YP)

$19.99

$

Usually ships in 2-12 days

0

3

Snapper 7079158

DECK HANDLE WELDMENT

$

$

Currently unavailable

4

Snapper 7079014

SLIDE, DECK HANDLE

$

$

Currently unavailable

5

Snapper 7079271

BLIND (POP) RIVET

$

$

Currently unavailable

6

Snapper 7079283

PIN, CLEVIS, 5/16 X 7/8
(Superseded to 7073953YP)

Note: Was 79283

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 7090188

WASHER, 5/16 STD, FLAT
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 3 left!

0

8

Snapper 7073953

COTTER, RUE RING, 5/16-3/8 PIN
(Superseded to 7073953YP)

Note: Was 79322

$2.99

$

Usually ships in 2-12 days

0

9

Snapper 7091557

CAPSCREW, HEX, 3/8-16 X 2-3/4, GRADE 5
(Superseded to 703133)

Note: Was 79313

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7090517

WASHER, 3/8 STD FLATS W SERIES
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

11

Snapper 7091299

LOCKNUT, HEX, 3/8-16 W/NYLOC
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7079230

SPRINGER COMPRESSION

$

$

Currently unavailable

13

Snapper 7079105

WASHER, .656 ID X 1 OD X 8 GA

$

$

Currently unavailable

14

Snapper 70270

CAPSCREW, HEX 3/8-16 X 2-3/8, GRADE 5

$

$

Currently unavailable

15

Snapper 7079267

LOCKWASHER, 5/16 HEAVY, SPLIT SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7079212

SPRING, COMPRESSION
(Superseded to 7079212YP)

$6.49

$

Usually ships in 2-12 days

0

17

Snapper 7079127

LINK, HANDLE
(Superseded to 7079127YP)

$2.49

$

Usually ships in 2-12 days

0

18

Snapper 7079129

LOCK STAND

$

$

Currently unavailable

19

Snapper 7079128

LOCK ARM

$

$

Not available

20

Snapper 7079130

GRIP, LOCK

$

$

Currently unavailable

21

Snapper 7076934

CAPSCREW, HEX, 5/16-18 X 3/4, GRADE 5
(Superseded to 7076934YP)

Note: Was 79315

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7073953

PIN, CLEVIS, 5/16 X 27/32
(Superseded to 7073953YP)

Note: Was 79322

$2.99

$

Usually ships in 2-12 days

0

23

Snapper 7079316

CHAIN CONNECTOR

$

$

Currently unavailable
