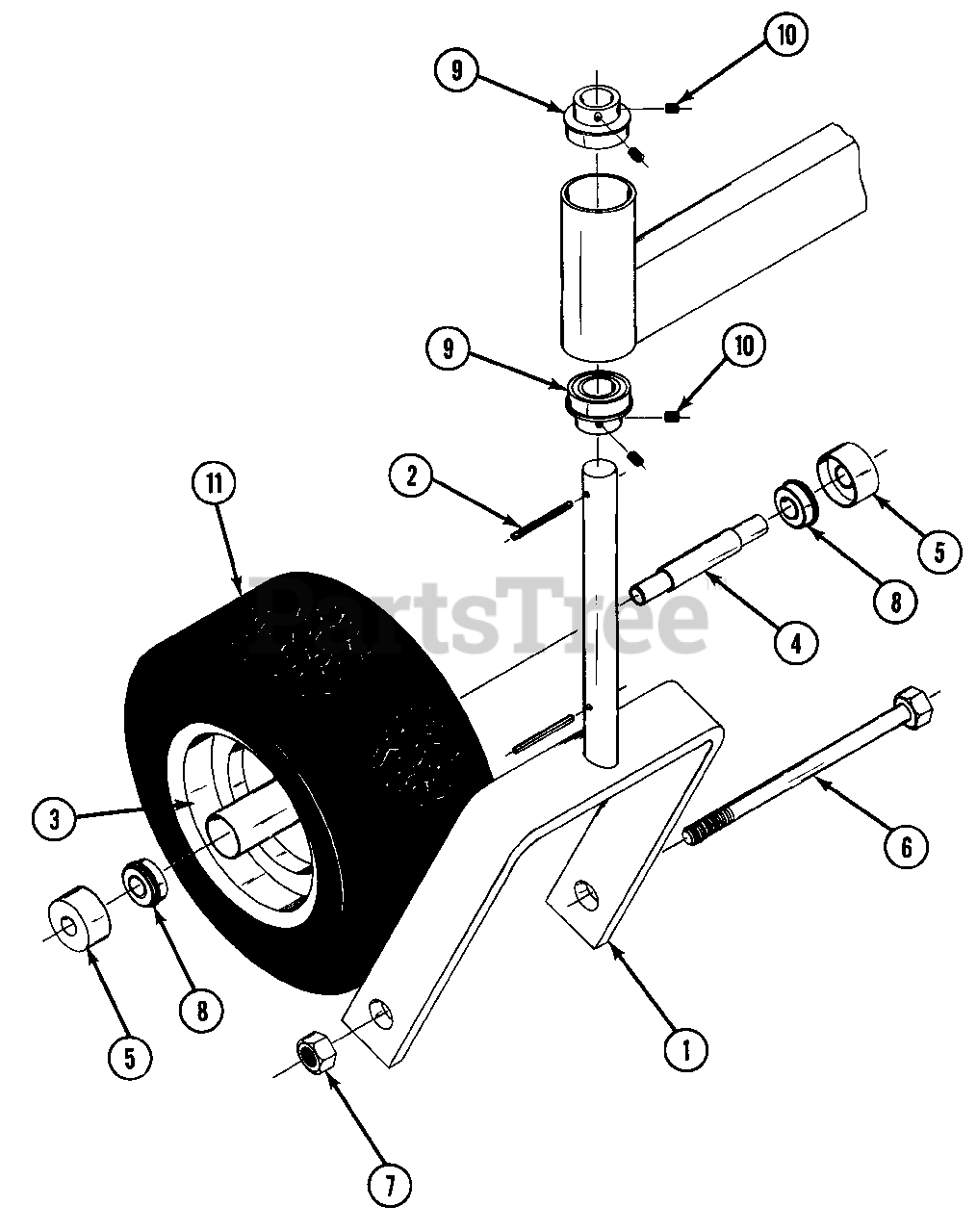

Z 4801M (80001) - Snapper 48" Mower Deck Assembly Caster Wheel ("S" & "SK" Frame) Parts Diagram

48" Mower Deck Assembly

Caster Wheel ("S" & "SK" Frame) Parts Diagram

  • Title

Snapper 7079354

CASTER WHEEL ASSEMBLY

$

$

Currently unavailable

1

Snapper 7079001

CASTER WELDMENT
(Superseded to 7079001YP)

$75.99

$

Usually ships in 2-12 days

0

2

Snapper 7079285

PIN, SPIROL, 3/16 X 2, LIGHT DUTY
(Superseded to 7079285YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7079164

WHEEL 410 X 350-4, 2 PLY, W/RIM

$

$

Currently unavailable

4

Snapper 7079358

SPACER, BEARING

$

$

Not available

5

Snapper 7079357

SHIELDS BEARING
(Superseded to 7079357YP)

$43.99

$

Usually ships in 2-12 days

0

6

Snapper 7079312

CAPSCREW, 5/8-11 X 7.5, GRADE 5
(Superseded to 7079312YP)

$9.99

$

Usually ships in 2-12 days

0

7

Snapper 7090755

LOCKNUT, 5/8-11, TOPLOCK 3/8

$

$

Not available

8

Snapper 7079339

BEARING, 5/8 I.D. X 1-3/8 O.D.
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

9

Snapper 7079330

BEARINGS 1" BORE
(Superseded to 7079330YP)

$56.99

$

Usually ships in 2-12 days

0

10

Snapper 7079288

SETSCREW, 1/4-28 X 5/16
(Superseded to 7079288YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7079335

TIRE, 410/350 X 4
(Superseded to 7079335YP)

$47.99

$

Usually ships in 2-12 days

0
