Z 48 F (967327901) - Jonsered Zero-Turn Mower (2015-01) MOWER DECK / CUTTING DECK Parts Diagram

Zero-Turn Mower

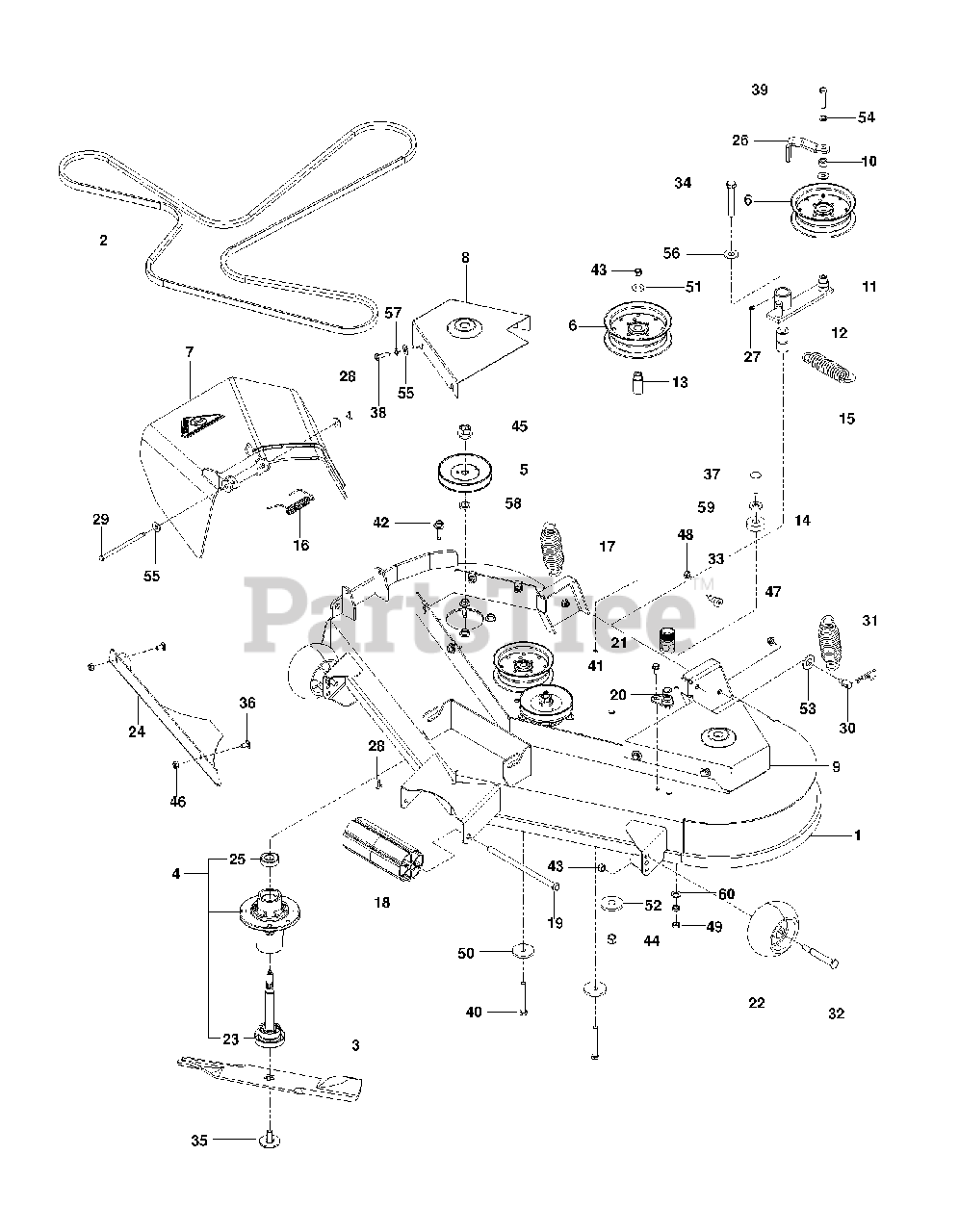

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

522534806

$

$

Not available

2

Jonsered 539109243

BELT, DECK

$85.99

$

In Stock, only 2 left!

0

3

Jonsered 539113425

BLADE, 16-1/4"

$22.99

$

In Stock, Qty 19

0

4

Jonsered 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, only 3 left!

0

5

Jonsered 532173436

PULLEY MANDREL

$17.99

$

In Stock, Qty 20+

0

6

Jonsered 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

In Stock, Qty 11

0

7

Jonsered 539110732

DISCHARGE CHUTE 48"

$53.99

$

In Stock, Qty 6

0

8

Jonsered 539113415

SHIELD.BELT.RHSX428

$

$

Not available

9

Jonsered 539113416

ROLLER MOUNT - CENTER

$

$

Not available

10

Jonsered 539923515

SPACER

$5.99

$

In Stock, only 2 left!

0

11

Jonsered 539112198

IDLER ARM

$121.99

$

Usually ships in 3-10 days

0

12

Jonsered 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

13

Jonsered 539112169

IDLER BUSHING
(Superseded to 596841501)

$9.49

$

In Stock, Qty 20+

0

14

Jonsered 539116378

ISO-MOUNT BUSHING

$6.49

$

In Stock, Qty 7

0

15

Jonsered 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

16

Jonsered 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 4 left!

0

17

Jonsered 539118762

SPRING
(Superseded to 596482001)

$7.99

$

In Stock, Qty 5

0

18

Jonsered 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 19

0

19

Jonsered 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

20

Jonsered 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

21

Jonsered 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 7

0

22

Jonsered 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

23

Jonsered 532187291

SHAFT ASM MANDREL
(Superseded to 597023501)

$28.99

$

In Stock, Qty 13

0

24

Jonsered 539113427

CONFINEMENT PLATE 48" BLK

$

$

Not available

25

Jonsered 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

26

Jonsered 539114981

GUIDE, BELT

$

$

Not available

27

Jonsered 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

28

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

29

Jonsered 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD
(Superseded to 595935501)

$3.99

$

In Stock, only 3 left!

0

30

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

31

Jonsered 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

32

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

33

Jonsered 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

34

Jonsered 874780852

Hex Capscrew, 1/2-13 X 3-1/4 Gd 5 Zd

$3.49

$

Usually ships in 3-10 days

0

35

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

36

Jonsered 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

37

Jonsered 539990923

RHSNB 3/8-16X1-3/4

$3.49

$

Usually ships in 3-10 days

0

38

Jonsered 874780516

BOLT RB

$6.49

$

Usually ships in 3-10 days

0

39

Jonsered 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

40

Jonsered 874780648

BOLT
(Superseded to 596564405)

$3.99

$

In Stock, Qty 10

0

41

Jonsered 817490408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

42

Jonsered 584953901

Hex Washer Head Bolt, .313-18 X 1.19

$4.99

$

In Stock, Qty 20+

0

43

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Jonsered 873800800

NUT
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

45

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

46

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

47

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

48

Jonsered 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

49

Jonsered 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

50

Jonsered 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

In Stock, Qty 20+

0

51

Jonsered 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 8

0

52

Jonsered 539102243

WASHER, SUPPORT
(Superseded to 596437501)

$10.99

$

In Stock, Qty 15

0

53

819212113

$

$

Not available

54

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

55

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

56

Jonsered 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

57

Jonsered 810030500

Lock Washer, 5/16
(Superseded to 539990187)

$3.99

$

Usually ships in 3-10 days

0

58

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 5

0

59

Jonsered 819171713

WASHER STEEL
(Superseded to 532059375)

$

$

Not available

60

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 5

0
