Z 48 F (967327901) - Jonsered Zero-Turn Mower (2015-01) ENGINE PLATE Parts Diagram

Zero-Turn Mower

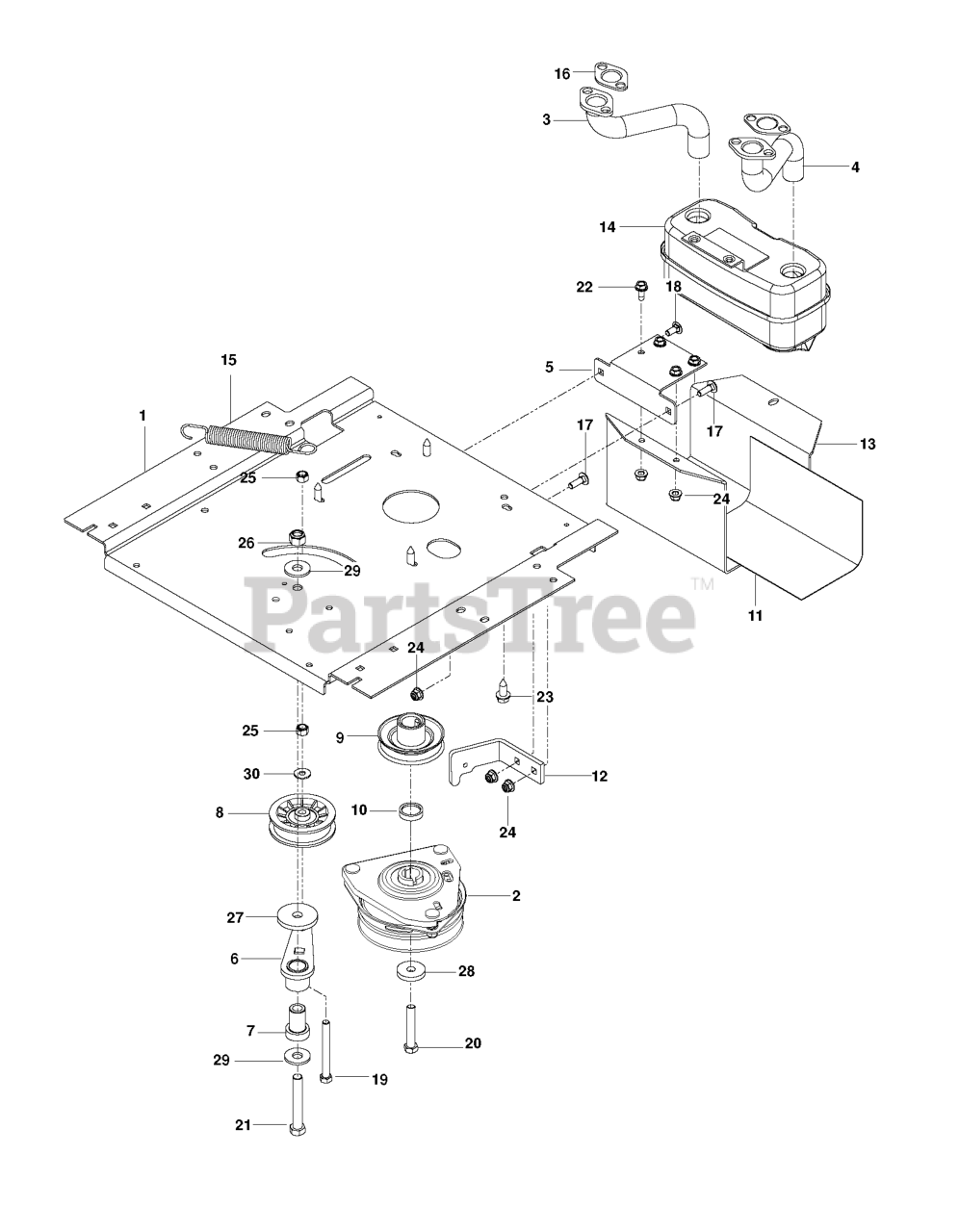

ENGINE PLATE Parts Diagram

  • Title
1

Jonsered 532448161

PLATE ENGINE, BLACK

$66.99

$

Usually ships in 3-10 days

0

2

Jonsered 587241601

Clutch, Ogura 5.0Pd Gt1.5A-Eh07

$278.99

$

In Stock, only 1 left!

0

3

Jonsered 581881001

Exhaust Tube, RH B&S Twin Intek
(Superseded to 532160589)

$27.99

$

In Stock, only 1 left!

0

4

Jonsered 581881101

Exhaust Tube, LH.Bs/Twin
(Superseded to 532159955)

$44.99

$

In Stock, only 1 left!

0

5

Jonsered 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

6

Jonsered 532448145

Idler Arm
(Superseded to 583593901)

$13.99

$

In Stock, only 2 left!

0

7

Jonsered 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

8

Jonsered 539110311

PULLEY, IDLER

$17.99

$

In Stock, Qty 20+

0

9

Jonsered 587537401

Engine Pulley

$26.99

$

In Stock, only 3 left!

0

10

Jonsered 587660101

Spacer, 625 Ogura LCC

$6.99

$

In Stock, only 3 left!

0

11

Jonsered 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

12

Jonsered 522442506

CLUTCH STOP OGR BLK

$9.99

$

Usually ships in 3-10 days

0

13

Jonsered 587451202

Muffler Guard

$51.99

$

Usually ships in 3-10 days

0

14

Jonsered 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 3 left!

0

15

Jonsered 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 6

0

16

Jonsered 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 19

0

17

Jonsered 872140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, only 4 left!

0

18

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 874520656

Hex Capscrew, 3/8-16X3-1/2 Tapblt Gr5 Zd

$

$

Not available

20

Jonsered 581332803

Clutch Bolt, 7/16-20 X 2.5 Gr 5 24Hr
(Superseded to 581332806)

$8.99

$

In Stock, Qty 9

0

21

Jonsered 874780852

Hex Capscrew, 1/2-13 X 3-1/4 Gd 5 Zd

$3.49

$

Usually ships in 3-10 days

0

22

Jonsered 817490512

SCREW
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

23

Jonsered 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

24

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

25

Jonsered 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

26

Jonsered 873800800

NUT
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

27

Jonsered 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 9

0

28

$8.99

$

In Stock, only 3 left!

0

29

Jonsered 819182212

Washer, 9/16 X 1 3/8 X 12 Ga
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

30

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0
