Z 48 F (967327901) - Jonsered Zero-Turn Mower (2015-01) BRAKE / REAR MOWER LIFT Parts Diagram

Zero-Turn Mower

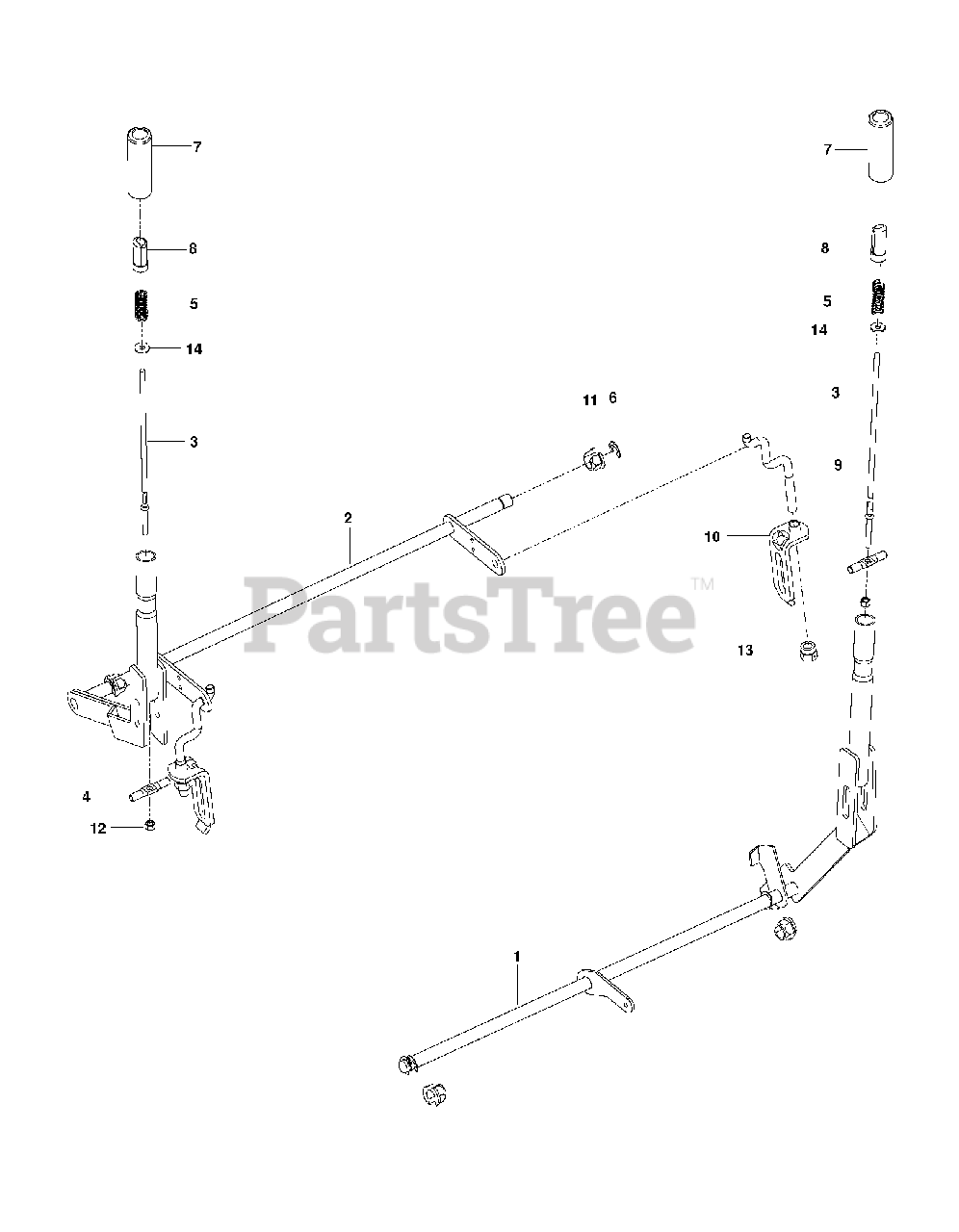

BRAKE / REAR MOWER LIFT Parts Diagram

  • Title

1

Jonsered 580435801

Brake Shaft Subassembly Weldment, Med

$120.99

$

Usually ships in 3-10 days

0

2

Jonsered 586760202

Lifting Arm Weldment, Black

$42.99

$

Usually ships in 3-10 days

0

3

Jonsered 510422901

ROD, HANDLE RELEASE
(Superseded to 510422902)

$6.49

$

In Stock, only 4 left!

0

4

Jonsered 580960401

Release Rod Latch
(Superseded to 583629301)

$6.49

$

In Stock, only 1 left!

0

5

Jonsered 510030701

SPRING, COMPRESSION
(Superseded to 510030702)

$4.99

$

In Stock, Qty 20+

0

6

Jonsered 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

7

Jonsered 510207201

GRIP, HANDLE, BLACK

$6.99

$

In Stock, only 4 left!

0

8

Jonsered 510207301

BUTTON, PUSH, BLACK

$5.99

$

In Stock, only 1 left!

0

9

Jonsered 525847201

LINK, REAR SUSPENSION
(Superseded to 587623001)

$12.99

$

In Stock, only 1 left!

0

10

Jonsered 522858601

ASSEMBLY, BRKT LINK
(Superseded to 587623001)

$12.99

$

In Stock, only 1 left!

0

11

Jonsered 510184901

PLASTIC NUT

$6.49

$

In Stock, only 3 left!

0

12

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

13

Jonsered 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 5

0

14

Jonsered 819091216

WASHER PM
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0
