Z 460 - Husqvarna 60" Zero-Turn Mower MOWER LIFT / DECK LIFT Parts Diagram

60" Zero-Turn Mower

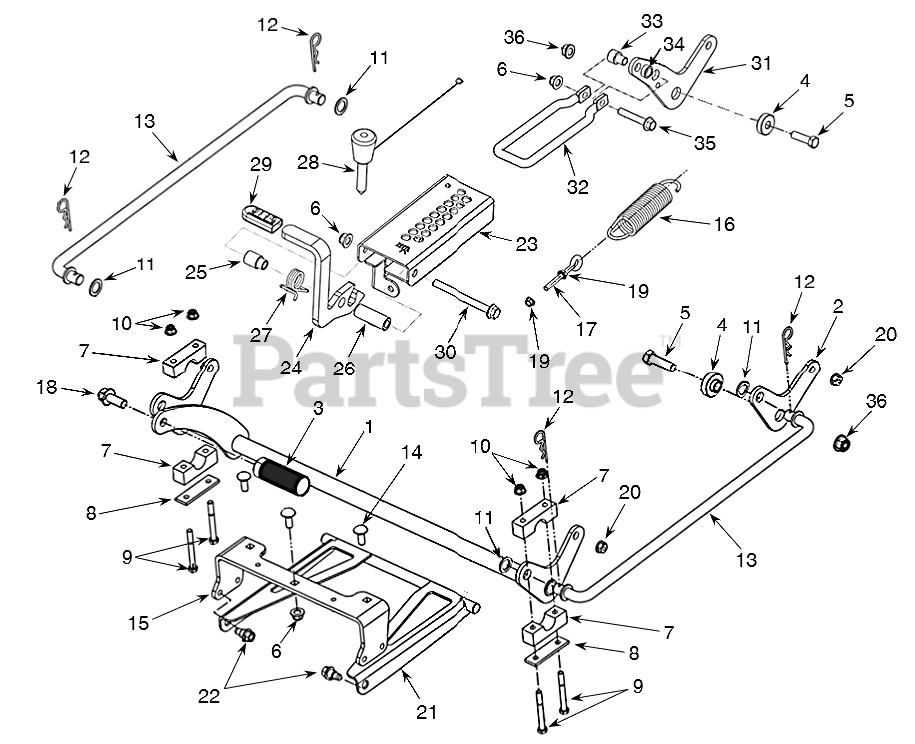

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

31

Husqvarna 593077703

Arms

$20.99

$

In Stock, only 1 left!

0

12

Husqvarna 596273101

Pins

Note: PIN HAIRPIN COTTER #4

$3.99

$

In Stock, Qty 5

0

11

Husqvarna 596933401

Washers

Note: WASHER PLAIN 21/32 X 1 X 16GA IN

$3.99

$

In Stock, only 1 left!

0

32

Husqvarna 590934701

Links

$20.99

$

Usually ships in 3-10 days

0

20

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

Note: NUT LOCK FLG 3/8-16

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 596848001

Springs

Note: SPRING EXTENSION

$22.99

$

In Stock, only 1 left!

0

7

Husqvarna 539104808

PILLOW BLOCK

Note: SUPPORT PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 596240801

GSPW Bolts

Note: BOLT EYELET BOLT 5/16-18 X 3-1/2

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 584392702

REINFORCEMENT.PLATEX431

Note: PLATE REINFORCEMENT

$13.99

$

In Stock, only 4 left!

0

26

Husqvarna 510408402

Spacers

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 596039201

GSPW Hardware

Note: LOCK NUT HEX 5/16-18 IN

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 521996502

GSPW Nuts

Note: NUT HEXAGON LOCK 3/8-16

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 589454201

LEVER.TRANS.RELEASE 4" ADJMNT

$

$

Not available

23

Husqvarna 590934302

Adjusters

$96.99

$

Usually ships in 3-10 days

0

18

Husqvarna 593903401

Bolts

Note: "BOLT 1/2-13UNC X 1,25 ''"

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 596438301

Bolts

$2.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539132851

GRIP, TRANSPORT-RELEASE

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 591066901

Rods

Note: ROD BELL CRANK CONNECTOR

$34.99

$

Usually ships in 3-10 days

0

27

Husqvarna 590937501

Springs

$2.49

$

Usually ships in 3-10 days

0

1

Husqvarna 592809002

Shafts

Note: "SHAFT DECK LIFT, WELDMENT"

$91.99

$

Usually ships in 3-10 days

0

10

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: NUT HEXAGON FLANGE 5/16-18

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 596218601

Bolts

Note: "BOLT 5/16-18UNC X 2,75 '' Grade 5"

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 521996602

Screws

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 592914203

Pins

$28.99

$

Usually ships in 3-10 days

0

25

Husqvarna 594037301

Pivots

$2.49

$

Usually ships in 3-10 days

0

34

Husqvarna 596515201

Spacers

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 582519402

Brackets

Note: BRACKET DECK DRAWBAR MOUNT

$43.99

$

Usually ships in 3-10 days

0

14

Husqvarna 595316801

Bolts

Note: BOLT 3/8-16UNC X 1 '' Grade 5

$4.99

$

In Stock, only 3 left!

0

3

Husqvarna 510408302

Pedals

Note: PEDAL DECK HEIGHT

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 596435801

Bolts

Note: "BOLT E 1/2-13UNC X 1,75 ''"

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 586701702

Spacers

Note: SPACER IDLER METAL POWDER

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 591067402

Drawbars

$43.99

$

Usually ships in 3-10 days

0

36

Husqvarna 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

$4.99

$

In Stock, Qty 7

0

33

Husqvarna 594037201

Gauges

$2.49

$

Usually ships in 3-10 days

0

2

Husqvarna 593077704

Arms

Note: "ARM BELL CRANK, REAR LH"

$22.99

$

In Stock, only 1 left!

0
