Z 46 R (967327801) - Jonsered Zero-Turn Mower (2015-01) ENGINE PLATE Parts Diagram

Zero-Turn Mower

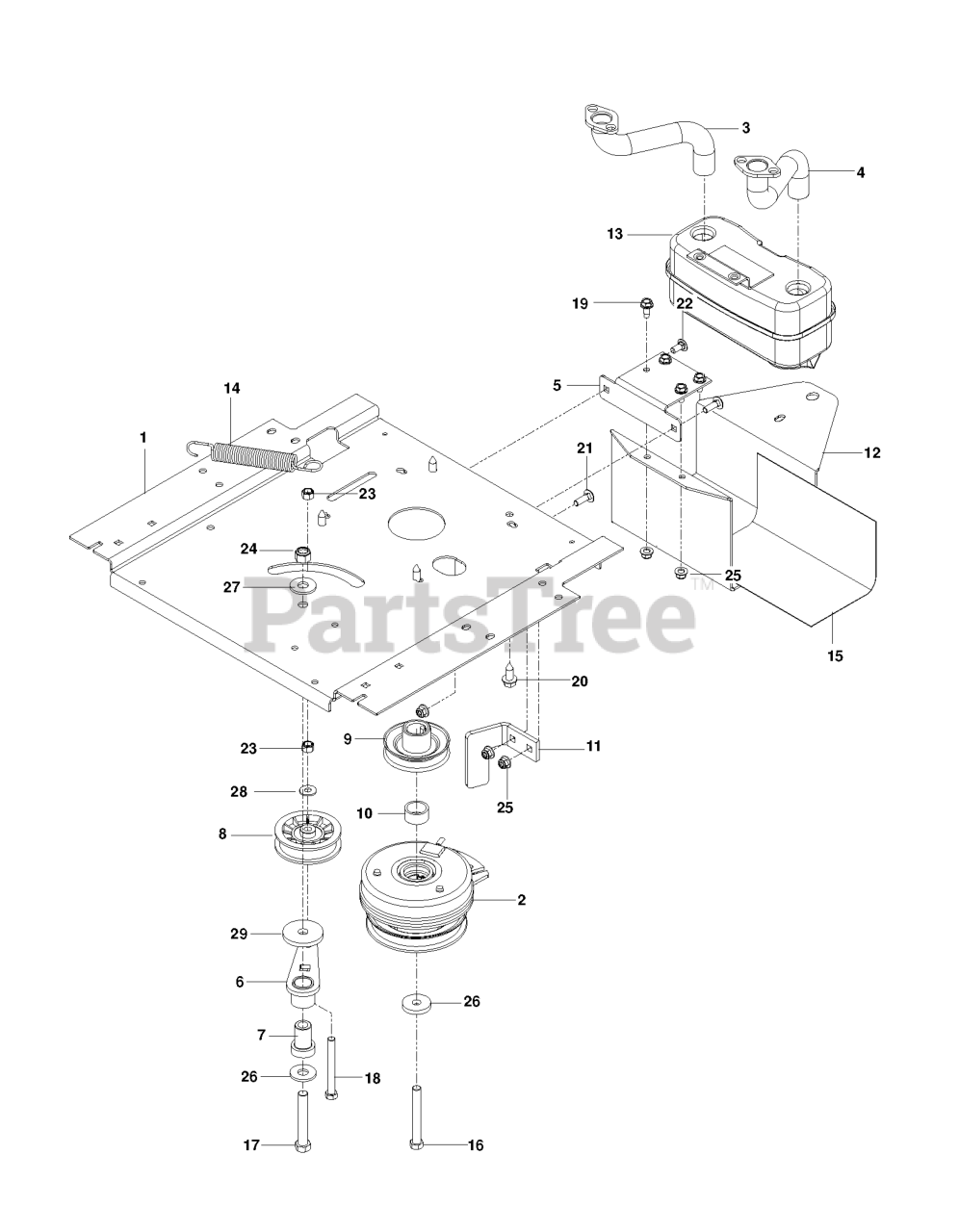

ENGINE PLATE Parts Diagram

  • Title
1

Jonsered 575327002

PLATE, ENGINE BLK
(Superseded to 532448161)

$66.99

$

Usually ships in 3-10 days

0

2

Jonsered 585521101

Clutch, 105 Ft/Lb

$341.99

$

In Stock, only 1 left!

0

3

Jonsered 581881001

Exhaust Tube, RH B&S Twin Intek
(Superseded to 532160589)

$27.99

$

In Stock, only 1 left!

0

4

Jonsered 581881101

Exhaust Tube, LH.Bs/Twin
(Superseded to 532159955)

$44.99

$

In Stock, only 1 left!

0

5

Jonsered 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

6

Jonsered 539112092

IDLER ARM
(Superseded to 583593901)

$13.99

$

In Stock, Qty 8

0

7

Jonsered 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

8

Jonsered 539110311

PULLEY, IDLER

$17.99

$

Usually ships in 3-10 days

0

9

Jonsered 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, only 3 left!

0

10

Jonsered 539112252

T & B SPACER
(Superseded to 596401101)

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 510246002

STOP, CLUTCH, BLACK

$27.99

$

Usually ships in 3-10 days

0

12

Jonsered 587451202

Muffler Guard

$51.99

$

Usually ships in 3-10 days

0

13

Jonsered 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 2 left!

0

14

Jonsered 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 11

0

15

Jonsered 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

16

Jonsered 539976944

HCS 7/16-20X3-1/2 GR 5 ZN
(Superseded to 581332804)

$7.99

$

In Stock, only 2 left!

0

17

Jonsered 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

18

Jonsered 539109389

HCS 3/8-16X3 1/2 GR5

$5.99

$

In Stock, only 3 left!

0

19

Jonsered 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

20

Jonsered 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 20+

0

21

Jonsered 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

22

Jonsered 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Jonsered 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

26

Jonsered 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

27

Jonsered 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

28

Jonsered 539990692

WASHER 5/16 FLAT
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

29

Jonsered 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 10

0
