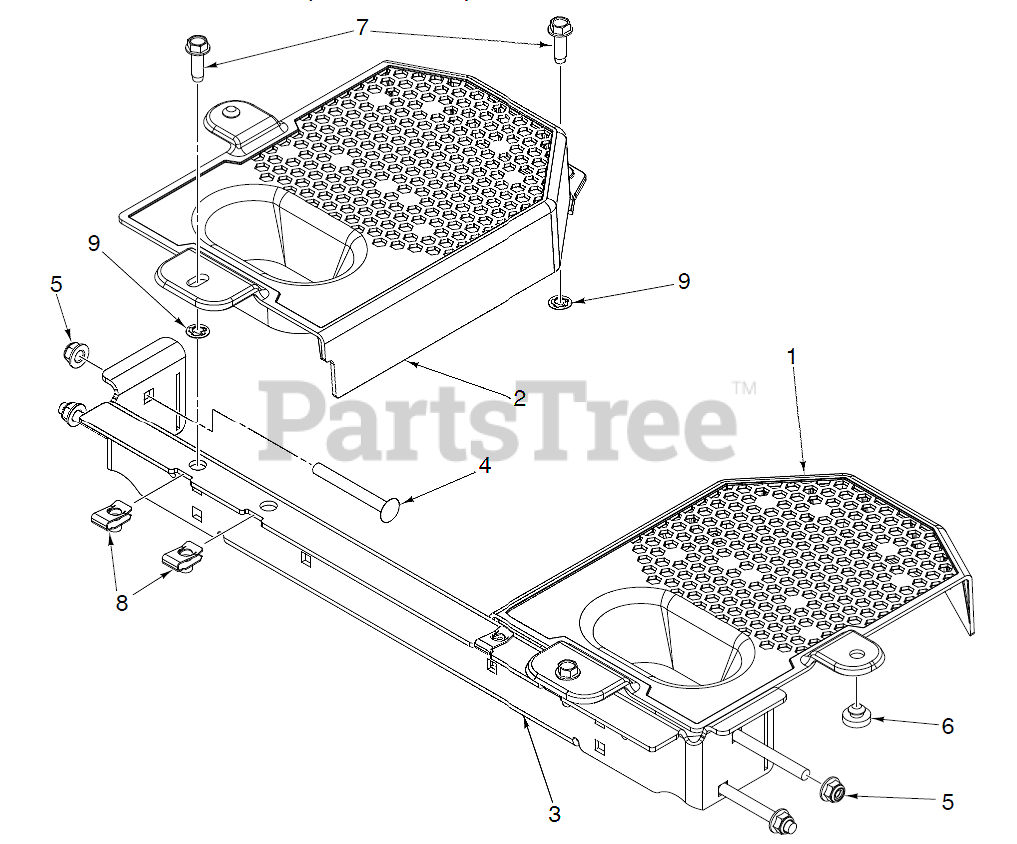

Z 454x (970497101-00) - Husqvarna 54" Zero-Turn Mower (2020-06) CROSS MEMBER & FAN COVERS 2 Parts Diagram

54" Zero-Turn Mower

CROSS MEMBER & FAN COVERS 2 Parts Diagram

  • Title

5

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: NUT HEXAGON FLANGE 5/16-18

$6.99

$

In Stock, Qty 20+

0

7

Husqvarna 596433801

SCREW HEX HEAD W/ WASHER 5/16-

Note: BOLT HHFS 5/16-18 X 1

$2.49

$

Usually ships in 3-10 days

0

4

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

Note: BOLT HEX 5/16-18X3

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 539102587

GROMMET, BUMPER

Note: ABSORBER VIBRATION GROMMET

$5.99

$

In Stock, Qty 15

0

1

Husqvarna 598468402

Shields

Note: KIT LH FAN SHIELD

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

Note: U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

2

Husqvarna 598468401

Shields

Note: KIT RH FAN SHIELD

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532423063

WASHER 5/16"
(Superseded to 583400601)

Note: "WASHER 5/16"""

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 596972702

Brackets

Note: CROSS MEMBER

$51.99

$

Usually ships in 3-10 days

0
