Z 454 XS (970497102-00) - Husqvarna 54" Zero-Turn Mower (2020-11) STEERING - CONTROL MOUNT Parts Diagram

54" Zero-Turn Mower

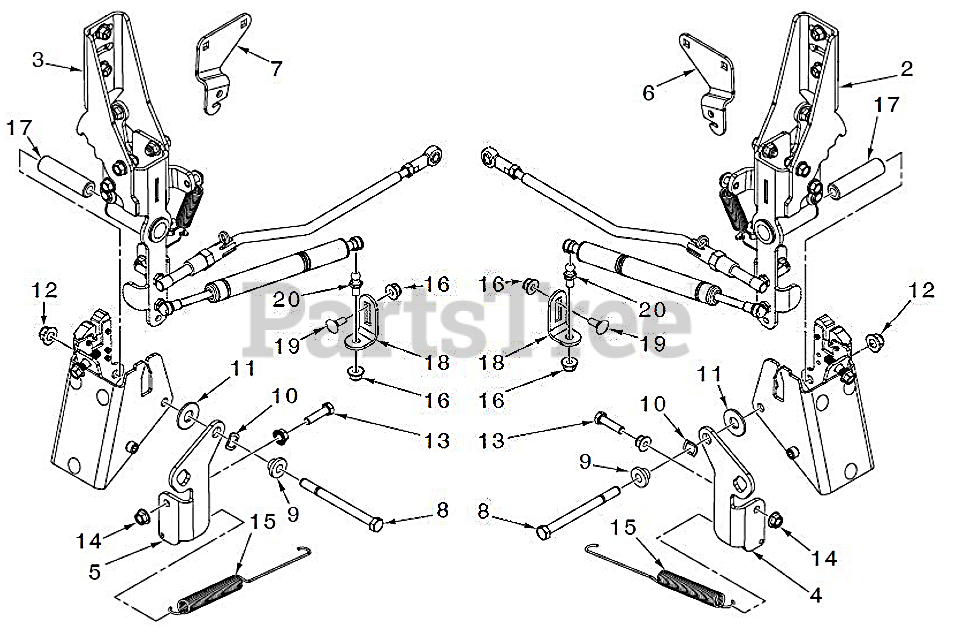

STEERING - CONTROL MOUNT Parts Diagram

  • Title
8

Husqvarna 874760672

BOLT, HEX 3/8-16X4-1/2

Note: "BOLT E 3/8-16UNC X 4,5 '' Grade 2"

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 598486402

Controls

Note: CONTROLS SYSTEM RH

$53.99

$

Usually ships in 3-10 days

0

15

Husqvarna 593106701

Springs

Note: SPRING CONTROLS

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 585072001

WASHER.NYLON.TE

Note: WASHER

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 595901601

GSPW Bolts

Note: "BOLT 5/16-18UNC X 0,75 ''"

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 598475902

Brackets

Note: BRACKET DAMPER

$2.49

$

Usually ships in 3-10 days

0

12

Husqvarna 521996502

GSPW Nuts

Note: NUT HEXAGON LOCK 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532444749

WASHER.THREE.WAVE.SPRING.SSST

Note: WASHER

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 593061603

Brackets

Note: BRACKET CONTROLS LH

$2.49

$

Usually ships in 3-10 days

0

4

Husqvarna 596291201

Arms

Note: ARM RTN; CONTROLS; MZ LH

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: NUT HEXAGON FLANGE 5/16-18 St

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 593061501

Spacers

Note: SPACER CONTROLS

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 596291202

Arms

Note: ARM RTN; CONTROLS; MZ RH

$9.49

$

Usually ships in 3-10 days

0

2

Husqvarna 598486401

Controls

Note: CONTROLS SYSTEM LH

$53.99

$

Usually ships in 3-10 days

0

13

Husqvarna 595305701

Screws

Note: SCREW 5/16-18UNC X 31

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 596291101

Bushings

Note: BUSHING RTN; CONTROLS; MZ

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 596039201

GSPW Hardware

Note: LOCK NUT 5/16-18 IN

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 594056301

Studs

Note: STUD 10MM BALL

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 593061604

Brackets

Note: BRACKET CONTROLS RH

$5.99

$

Usually ships in 3-10 days

0
