Z 454 (967984701-01) - Husqvarna 54" Zero-Turn Mower (2020-04) STEERING - CONTROLS & DAMPER Parts Diagram

54" Zero-Turn Mower

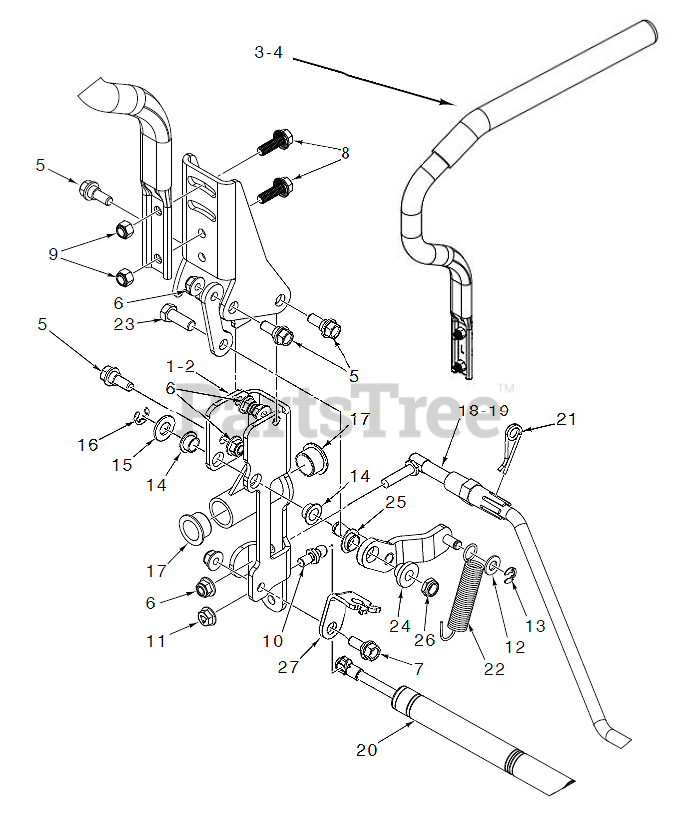

STEERING - CONTROLS & DAMPER Parts Diagram

  • Title
21

Husqvarna 582551901

CLIP.RETAINER.CONTROLS

Note: RETAINING CLIP

$6.99

$

In Stock, only 1 left!

0

17

Husqvarna 539131518

BEARING, FLANGE

Note: BEARING FLANGED

$11.99

$

In Stock, Qty 6

0

16

Husqvarna 522705201

RING, E, 7/16

Note: RING 7/16

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 597001101

Bolts

Note: BOLT HEX HD 5/16 x 1

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 596291101

Bushings

Note: BUSHING

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 596862301

Controls

Note: CONTROL ROD ASSEMBLY LH

$37.99

$

Usually ships in 3-10 days

0

18

Husqvarna 596862302

Controls

Note: CONTROL ROD ASSEMBLY RH

$37.99

$

In Stock, only 1 left!

0

15

Husqvarna 597001201

Washers

Note: WASHER

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 596135701

GSPW Nuts

Note: LOCK NUT 5/16-18

$3.99

$

In Stock, only 2 left!

0

10

Husqvarna 594056301

Studs

Note: STUD

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 598486402

Controls

Note: CONTROLS SYSTEM RH

$53.99

$

Usually ships in 3-10 days

0

26

Husqvarna 596230801

Nuts

Note: NUT

$3.99

$

In Stock, Qty 15

0

27

Husqvarna 593061302

GSPW BRACKETS

$2.49

$

Usually ships in 3-10 days

0

12

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

Note: WASHER

$3.99

$

In Stock, Qty 11

0

9

Husqvarna 596583702

Nuts

Note: NUT 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 598486401

Controls

Note: CONTROLS SYSTEM LH

$53.99

$

Usually ships in 3-10 days

0

23

Husqvarna 596564401

Bolts

Note: BOLT HEX HD 3/8-16 x 1

$4.99

$

In Stock, Qty 11

0

7

Husqvarna 596240701

Bolts

Note: BOLT HEX HD 5/16-18 x 5

$4.99

$

In Stock, only 4 left!

0

5

Husqvarna 597001301

Bolts

Note: BOLT HEX HD 5/16 x 7/8

$3.49

$

In Stock, only 2 left!

0

6

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: NUT 5/16-18

$6.99

$

In Stock, Qty 20+

0

14

Husqvarna 501603709

Bushings

Note: BEARING FLANGED

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 812000035

RING, KLIP

Note: CLIP

$7.49

$

In Stock, Qty 9

0

25

Husqvarna 501603710

Bearings

Note: BEARING FLANGED

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 597906801

Springs

Note: SPRING

$21.99

$

Usually ships in 3-10 days

0

4

Husqvarna 596985303

Levers

Note: CONTROL LEVER LH

$45.99

$

Usually ships in 3-10 days

0

20

Husqvarna 588775401

DAMPER

Note: DAMPER

$66.99

$

Usually ships in 3-10 days

0

3

Husqvarna 596985304

Levers

Note: CONTROL LEVER RH

$45.99

$

Usually ships in 3-10 days

0
