Z 454 (967984701-01) - Husqvarna 54" Zero-Turn Mower (2020-04) FRAME - ROLL PROTECTION Parts Diagram

54" Zero-Turn Mower

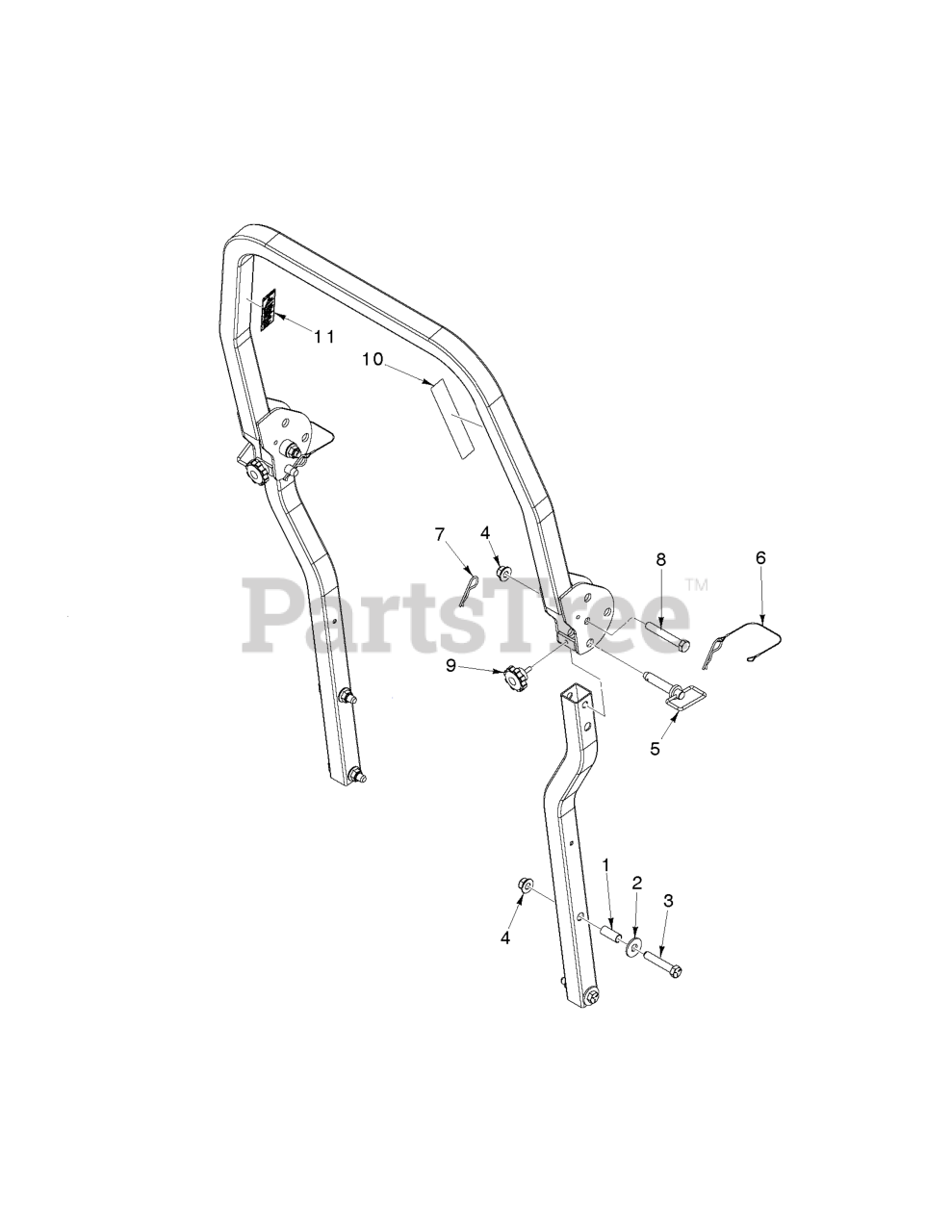

FRAME - ROLL PROTECTION Parts Diagram

  • Title

10

Husqvarna 597758701

Decals

Note: DECAL

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 591344501

KNOB.5/16-18X1"BLACK

Note: KNOB 5/16-18 X 1"

$9.49

$

In Stock, only 2 left!

0

Husqvarna 598429101

ROPS

Note: COMPLETE KIT W/ SEAT BELT

$854.99

$

Usually ships in 3-10 days

0

8

Husqvarna 591176602

Bolts

Note: BOLT HEX 5/8-11 x 4-1/4 IN

$9.49

$

Usually ships in 3-10 days

0

1

Husqvarna 597070601

Spacers

Note: SPACER

$2.49

$

Usually ships in 3-10 days

0

2

Husqvarna 594946401

Washers

Note: WASHER PLAIN .688X1.75X.138

$5.99

$

In Stock, only 1 left!

0

5

Husqvarna 591101602

Pins

Note: PIN W/ HANDLE CLEAR ZINC

$17.99

$

In Stock, only 2 left!

0

7

Husqvarna 596918001

Pins

Note: PIN COTTER 0.148 X 2-15/16 IN ST

$3.99

$

In Stock, Qty 9

0

4

Husqvarna 525829102

Nuts

Note: NUT 5/8-11 FLANGE NYLOC

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574569002

DECAL, ROPS, WARNING
(Superseded to 585302301)

Note: DECAL WARNING

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 580754602

Bolts

Note: BOLT HEX HD 5/8-11UNC X 3,5 ''

$9.49

$

In Stock, only 2 left!

0

6

Husqvarna 591101702

Pins

Note: WIRE LANYARD DOUBLE LOOPED

$24.99

$

Usually ships in 3-10 days

0
