Z 454 (967984701-00) - Husqvarna 54" Zero-Turn Mower (2019-12) WHEELS & TIRES Parts Diagram

54" Zero-Turn Mower

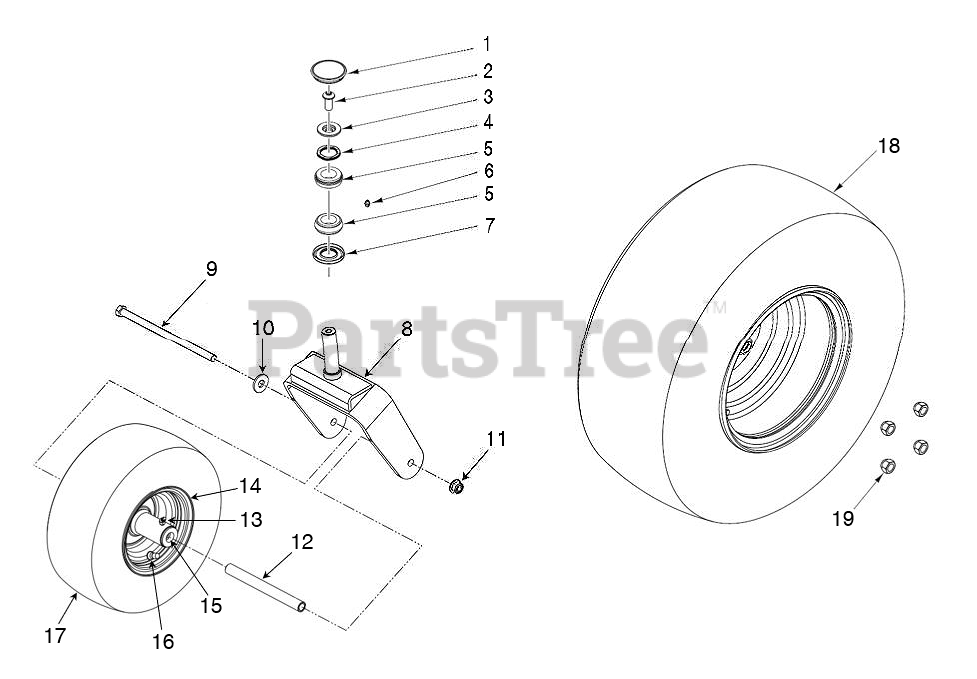

WHEELS & TIRES Parts Diagram

  • Title
11

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 9

0

16

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

15

Husqvarna 539105307

ROLLER BEARING-CAGED 3 1/4'

$11.99

$

In Stock, only 2 left!

0

14

Husqvarna 581199501

TIRE.ASSEM.CASTER.13X6.5-6.SIL

Note: FRONT

$194.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101474

ZERK

Note: NIPPLE ZERK

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 582746301

TIRE.22X10-10.K513.SERVICE

Note: REAR

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 591457301

SCREW HEXALOBULAR SOCKET BUTTO

Note: SCREW Torx 7/16-14UNC X 1 ''

$4.99

$

In Stock, only 4 left!

0

19

Husqvarna 587653902

NUT.1/2-20.UNF-2B.GR.8.YL

$

$

Not available

8

Husqvarna 590674602

FORK CASTER, MZT ORANGE X668

$91.99

$

In Stock, only 2 left!

0

15

Husqvarna 539102484

BEARING RETAINER

$5.99

$

In Stock, only 1 left!

0

12

Husqvarna 575334901

SPACER, PIVOT

$24.99

$

In Stock, Qty 8

0

4

Husqvarna 590681601

SPRING NESTED WAVE MZ/MZT

Note: SPRING NESTED WAVE

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 19

0

7

Husqvarna 539102851

SEAL

Note: SEAL

$7.99

$

In Stock, only 3 left!

0

9

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

3

Husqvarna 591425101

CAP SPRING. MZ/MZT CASTER RAW

Note: CAP SPRING. MZ/MZT CASTER RAW

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539105522

TIRE - SMOOTH 13X6.50-6

Note: FRONT

$120.99

$

In Stock, only 2 left!

0

1

Husqvarna 590700001

CAP DUST YELLOW ZINC

Note: CAP DUST YELLOW ZINC

$

$

Not available

18

Husqvarna 580747001

WHEEL.ASSEM.22X10-10.SILVE.ZTR

Note: REAR

$278.99

$

In Stock, only 1 left!

0

5

Husqvarna 539102543

TAPERED ROLLER BRG

Note: BEARING TAPER ROLLER CONE

$40.99

$

Usually ships in 3-10 days

0
