Z 454 (967984701-00) - Husqvarna 54" Zero-Turn Mower (2019-12) FUEL TANK & CONSOLE 2 Parts Diagram

54" Zero-Turn Mower

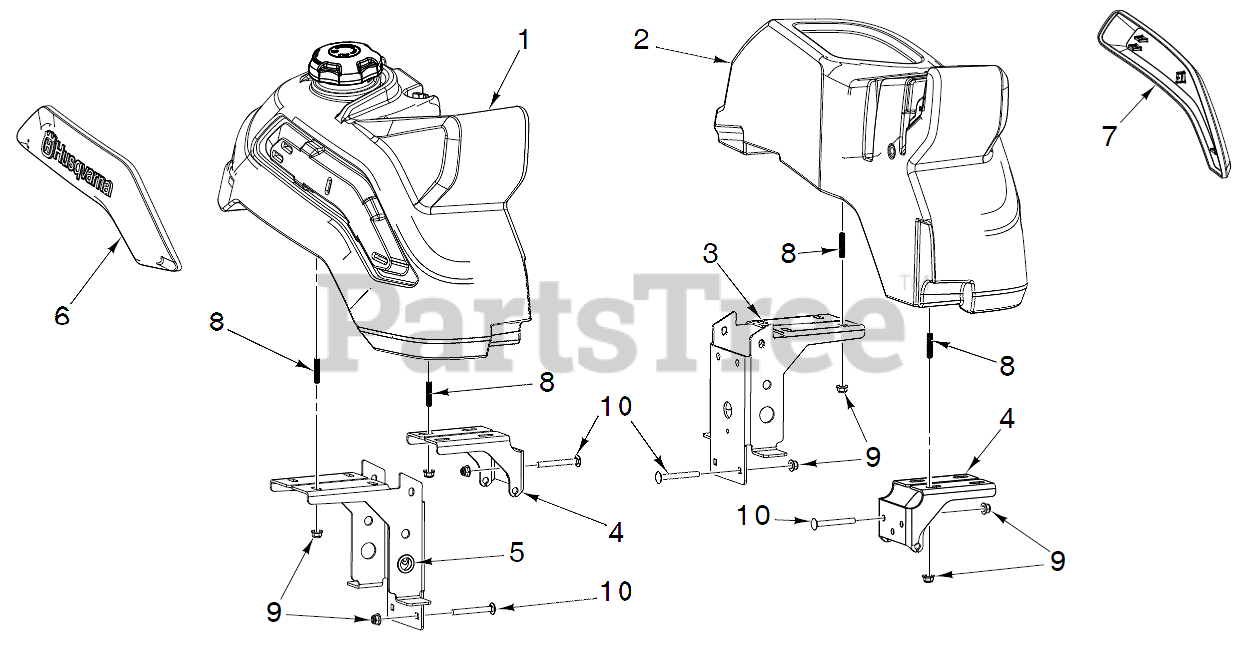

FUEL TANK & CONSOLE 2 Parts Diagram

  • Title
8

Husqvarna 582484201

SCREW.5/16-18X1.25"THREADED

Note: SCREW 5/16-18 X 1.5IN

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 872110522

Bolt, Carriage 5/16-18 x 2 - 3/4

Note: BOLT 5/16-18 X 2.75

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 596910702

Brackets

Note: BRACKET FUEL TANK FRONT

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 593981402

Brackets

Note: BRACKET FUEL TANK REAR

$51.99

$

Usually ships in 3-10 days

0

1

Husqvarna 593807902

Tanks

Note: FUEL TANK ASSY Z300/Z400 RH

$546.99

$

Usually ships in 3-10 days

0

9

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: NUT HEXAGON FLANGE 5/16-18

$6.99

$

In Stock, Qty 20+

0

7

Husqvarna 582483401

COVER.LH.FUEL.TANK/CONSOLE APP

Note: COVER LH FUEL TANK

$

$

Not available

5

Husqvarna 596773901

Bushings

Note: BUSHING SNAP

$2.49

$

Usually ships in 3-10 days

0

2

Husqvarna 593808301

Consoles

Note: CONSOLE Z300/Z400 LH

$206.99

$

Usually ships in 3-10 days

0

6

Husqvarna 582482401

COVER.RH.FUEL.TANK/CONSOLE APP

Note: COVER RH FUEL TANK

$

$

Not available
