Z 454 (967984701-00) - Husqvarna 54" Zero-Turn Mower (2019-12) DRIVE Parts Diagram

54" Zero-Turn Mower

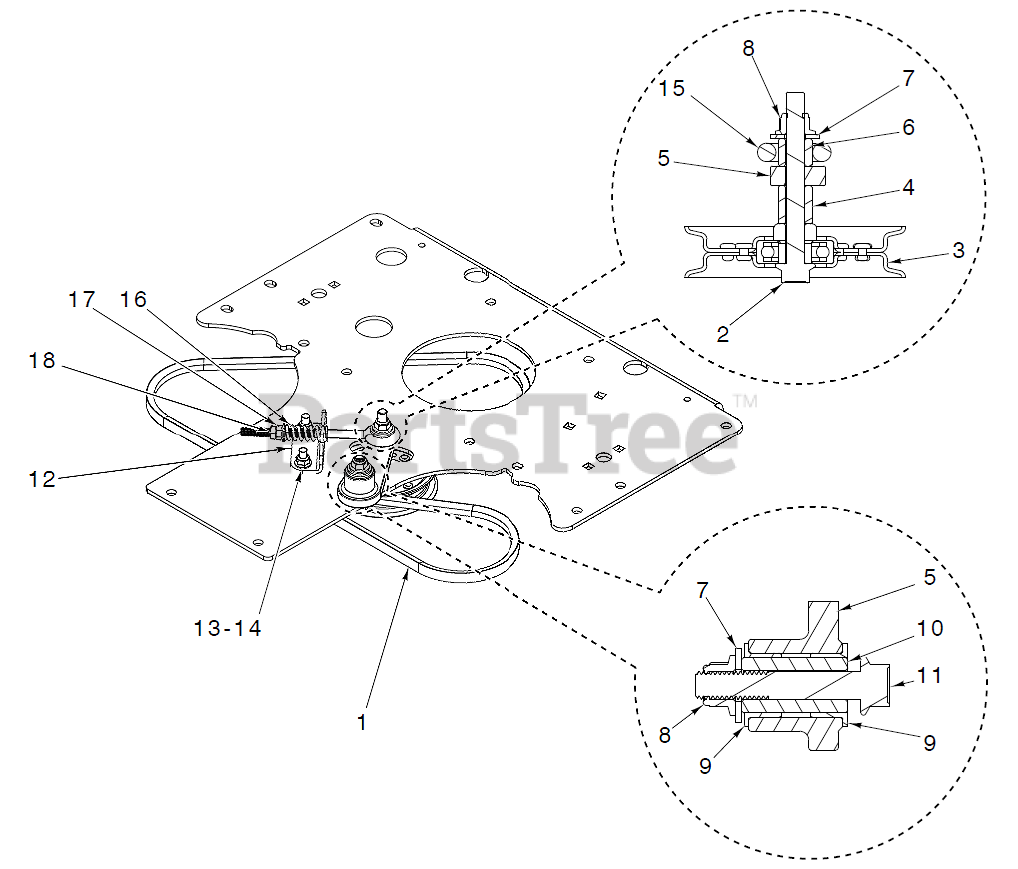

DRIVE Parts Diagram

  • Title
16

Husqvarna 532151332

SPRING, BRAKE ROD

Note: SPRING

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 525822101

HHFS 3/8-16 X 3.5 GD 5 ZD

Note: BOLT 3/8-16 X 3.5 HHFS GD 5

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 596433701

GSPW Washers

Note: WASHER 3/8 FLAT STD ZD 0.453 X 1.030 X 0.104 IN ST

$3.99

$

In Stock, Qty 7

0

6

Husqvarna 594099901

Spacers

Note: SPACER PRKR .557

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 596433501

NUT NUT.3/8-16.HEX.JAM.Z 3/8-1

Note: NUT 3/8-16 HEX JAM 3/8-16 X .562 IN

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 595901501

Bolts

Note: BOLT CUP HEAD 5/16-18 x 1.02 IN

$4.99

$

In Stock, Qty 7

0

10

Husqvarna 594100201

Spacers

Note: "SPACER PIVOT, TENSION ARM"

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 594100401

Tensioners

Note: LINKAGE TENSIONER

$6.99

$

In Stock, only 1 left!

0

1

Husqvarna 594098801

Belts

Note: "BELT GROUND DRIVE, HA 60.75"

$26.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501603701

BEARING.FLANGED.PLASTIC.3/4ID

Note: "BEARING FLANGED 3/4""ID X 1/2""L"

$6.99

$

In Stock, Qty 7

0

5

Husqvarna 594099101

Arms

Note: ARM IDLER Z400_300

$13.99

$

Usually ships in 3-10 days

0

4

Husqvarna 594099902

Spacers

Note: SPACER HG .781

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 594100301

Brackets

Note: "BRACKET ANCHOR, TENSIONER"

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 596583501

Washers

Note: WASHER HEX LOCK NUT WITH FLANGE 3/8-16 X 0.765 IN ST

$3.99

$

In Stock, only 1 left!

0

11

Husqvarna 577098301

HHFS 3/8-16 X 2.25 GD 8

Note: HHFS 3/8-16 X 2.25 GD 8

$6.99

$

In Stock, only 3 left!

0

14

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: NUT HEX FLANGE 5/16-18 St ZPB

$6.99

$

In Stock, Qty 20+

0

8

Husqvarna 521996502

GSPW Nuts

Note: NUT HEX LOCK FLANGE 3/8-16 St

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 596481401

Pulleys

Note: PULLEY PULLEY.IDLER.FLAT.3.

$26.99

$

In Stock, only 1 left!

0
