Z 448 - Husqvarna 48" Zero-Turn Mower (Original) MOWING DECK Parts Diagram

48" Zero-Turn Mower

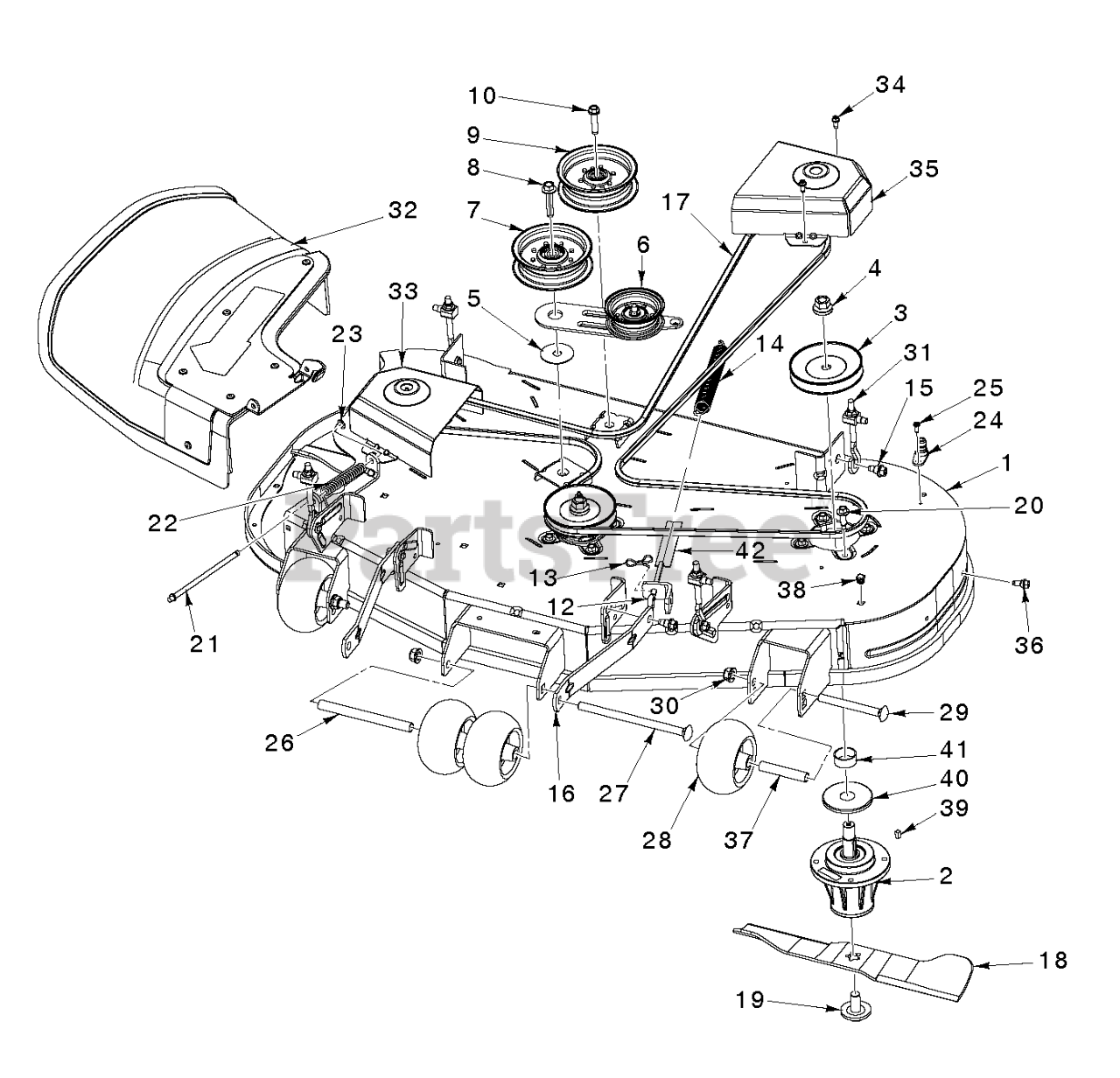

MOWING DECK Parts Diagram

  • Title

28

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

31

Husqvarna 588252901

NUT.HEX.FLANGE.INS.BLK.3/8-16

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 574196502

Tubes

$24.99

$

In Stock, only 1 left!

0

31

Husqvarna 588783401

LINK.ASM.ADJUSTABLE
(Superseded to 599857101)

$11.99

$

In Stock, Qty 20+

0

38

Husqvarna 596952201

Plugs

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 510022302

Screws

$6.99

$

In Stock, Qty 9

0

19

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 3 left!

0

30

Husqvarna 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

$4.99

$

In Stock, Qty 7

0

2

Husqvarna 596794502

Mandrels

$133.99

$

In Stock, only 1 left!

0

27

Husqvarna 594944501

Bolts

$9.49

$

In Stock, Qty 6

0

10

Husqvarna 596564003

BOLT;HEX_3/8-16 X 1.78.CLRZINC

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 588812402

COVER.PNT.MANDREL.RH.GREY

$39.99

$

In Stock, only 2 left!

0

41

Husqvarna 598645501

Spacers

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532425417

VIBRATION PAD

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532176205

TRUNNION

$7.99

$

In Stock, Qty 5

0

18

Husqvarna 588811202

BLADE.BAGGER.COM.CLRCT.48".BLK

Note: For 967984601-00

$37.99

$

In Stock, only 1 left!

0

14

Husqvarna 582504001

SPRING.EXTENSION

$7.99

$

In Stock, only 1 left!

0

39

Husqvarna 539105308

KEY 1/4 SQ X 1.0

$4.99

$

In Stock, Qty 5

0

3

Husqvarna 590805103

Pulleys

$37.99

$

Usually ships in 3-10 days

0

4

Husqvarna 598490501

Nuts

$9.49

$

In Stock, only 2 left!

0

34

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

8

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

1

Husqvarna 598852701

Decals

Note: COMES WITH DISCHARGE CHUTE

$1698.99

$

Usually ships in 3-10 days

0

6

Husqvarna 588812304

ARM.PNT.CLUTCHING.ASM.EDIP
(Superseded to 529470302)

$7.99

$

In Stock, only 1 left!

0

18

Husqvarna 591203904

NEEDS DESCRIPTION

Note: For 967984602-00

$84.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

35

Husqvarna 588812802

COVER.PNT.MANDREL.LH.ZTR.GREY

$31.99

$

In Stock, only 2 left!

0

16

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

40

Husqvarna 598440001

Caps

$2.49

$

Usually ships in 3-10 days

0

25

Husqvarna 596637301

Screws

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 595297001

Rods

$5.99

$

In Stock, Qty 20+

0

36

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

17

Husqvarna 579678502

Belts

$72.99

$

In Stock, only 1 left!

0

32

Husqvarna 593649701

GSPW Deflectors

$96.99

$

In Stock, only 1 left!

0

37

Husqvarna 574196402

Tubes

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 10

0

7

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 19

0

12

Husqvarna 597845101

Pins

$34.99

$

Usually ships in 3-10 days

0

31

Husqvarna 596433501

NUT NUT.3/8-16.HEX.JAM.Z 3/8-1

Note: Jam Nut

$3.99

$

In Stock, only 3 left!

0
