Z 448 (967984602-00) - Husqvarna 48" Zero-Turn Mower (2020-01) GUARDS Parts Diagram

48" Zero-Turn Mower

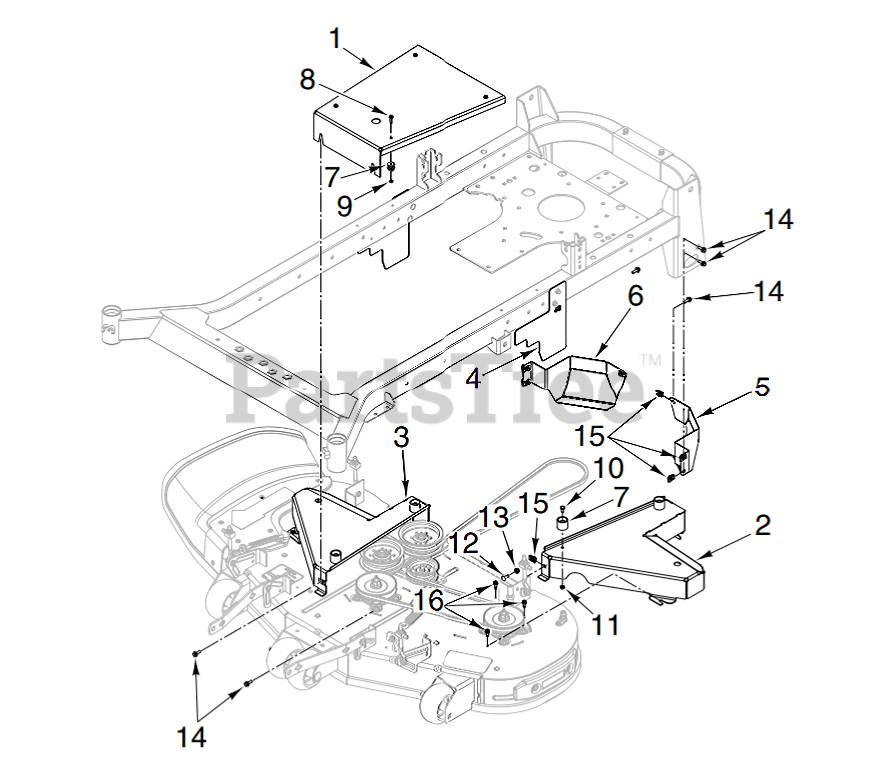

GUARDS Parts Diagram

  • Title

4

Husqvarna 598429002

Guards

Note: Transmission

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532137729

SCREW.1/4-20X5/8

Note: THD ROLL 1/4-20 X 5/8

$4.99

$

In Stock, Qty 19

0

13

Husqvarna 582478602

NUT FLG, NYLOCK, 1/4-20 GR G C

Note: FLG, NYLOCK, 1/4-20 GR G

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 597353502

Guards

Note: 448 MUFFLER RIGHT

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 582461701

HOLDER.ASM.STEM.BASE.WASHER

Note: STEM / BASE

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 596031501

Hardware
(Superseded to 582478602)

Note: 1/4-20 HEX THIN NYLOC

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 597353402

Guards

Note: 448 MUFFLER LEFT

$31.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503200001

SCREW M6SF 5X20

Note: M5 X 20/20 10.9 TBO

$6.49

$

In Stock, only 3 left!

0

15

Husqvarna 532174814

1/4-20 U NUT

Note: PALNUT LUG

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 597353902

Covers

Note: 448 MANDREL COVER LEFT

$125.99

$

Usually ships in 3-10 days

0

1

Husqvarna 597353102

Guards

Note: 448 MID

$68.99

$

Usually ships in 3-10 days

0

9

Husqvarna 593167301

NUT.LOCK.M5.8.ZP-Y

Note: M5 X .8 TBO

$4.99

$

In Stock, only 4 left!

0

3

Husqvarna 597354002

Covers

Note: 448 MANDREL COVER RIGHT

$121.99

$

Usually ships in 3-10 days

0

10

Husqvarna 596437001

Screws

Note: HCS 1/4-20 X 1/2 IN GR5

$3.99

$

In Stock, Qty 7

0

14

Husqvarna 589028502

Screws

Note: FLG LOCKING 1/4-20X.75

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 596238401

BOLT CUP HEAD SQUARE NECK BOLT

Note: 1/4-20 X 3/4 CARRIAGE

$3.99

$

Usually ships in 3-10 days

0
