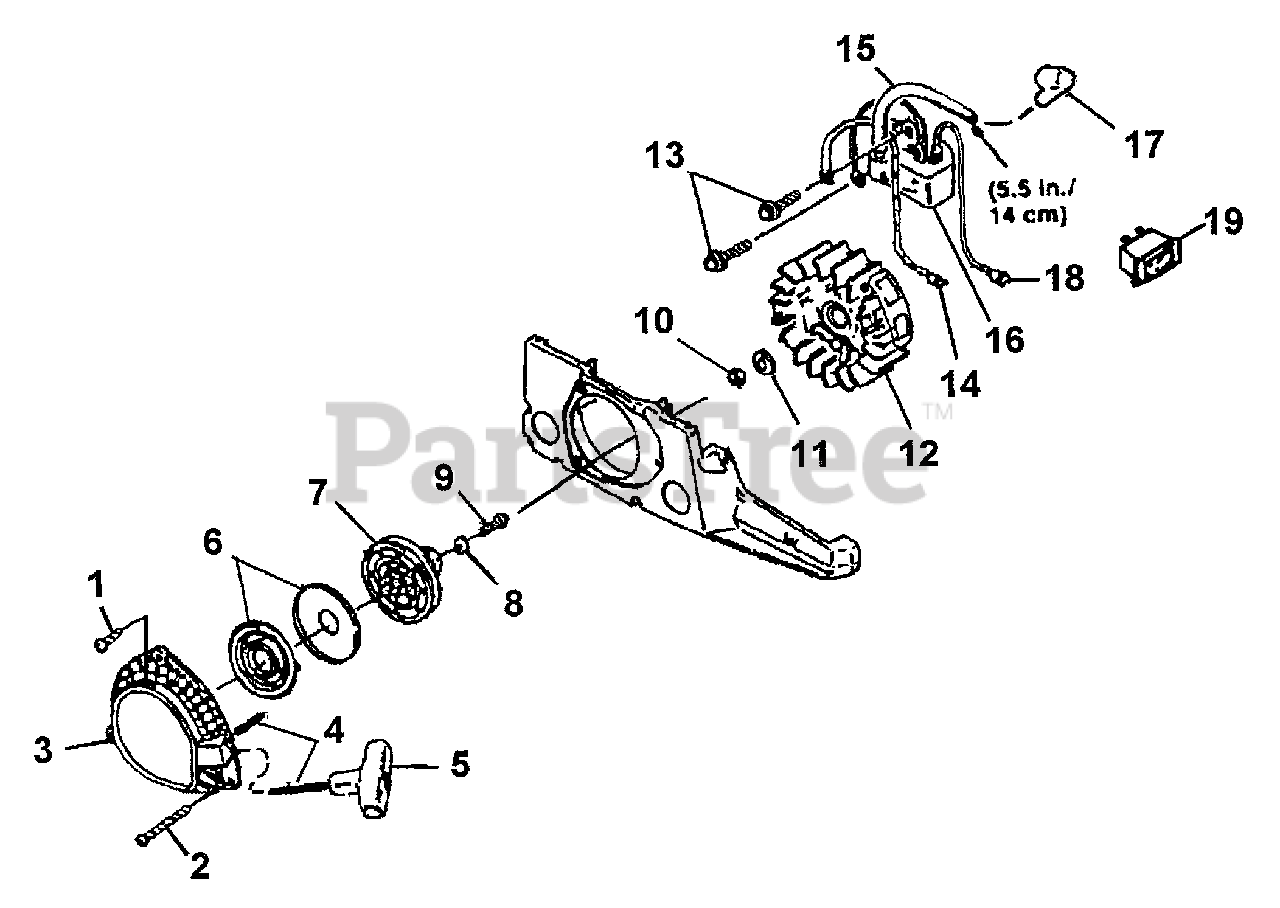

Z 4400 (UT-10765) - Homelite Chainsaw Starter - Ignition Parts Diagram

Chainsaw

Starter - Ignition Parts Diagram

  • Title

1

Homelite 182546

SCREW-Thread Form (8-16 x 5/8")

$

$

Currently unavailable

2

Homelite 282544

SCREW-Thread Form (8-16 x 2")

$

$

Currently unavailable

3

Homelite A04778A

STARTER - COMPLETE

$

$

Currently unavailable

4

Homelite 9789901

ROPE, STARTER (46")
(Superseded to 900849001)

$1.99

$

In Stock, only 3 left!

0

5

Homelite 02264

GRIP, STARTER
(Superseded to UP03832)

$

$

Not available

6

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

7

Homelite 97768B

PULLEY
(Superseded to UP05460)

$

$

Not available

8

Homelite 94062

WASHER, RETAINING

$

$

Not available

9

Homelite 82409

SCREW Plastite (10-14 x 5/8")

$

$

Not available

10

Homelite 81255

NUT, LOCK

$

$

Not available

11

Homelite 95479A

WASHER, FLAT

$

$

Not available

12

Homelite A06949

ROTOR & STARTER PAWLS

$

$

Currently unavailable

13

Homelite 88052

SCREW, Sems Hex Hd. (10-24 x 7/8")

$4.99

$

Usually ships in 3-7 days

0

14

Homelite A01821A

IGNITION GROUND WIRE

$

$

Not available

15

Homelite 95098

SLEEVE, Insulating

$

$

Not available

16

Homelite A01546

IGNITION MODULE

$

$

Not available

17

Homelite A02597

SPARK PLUG BOOT KIT

$

$

Not available

18

Homelite A01822A

IGNITION WIRE

$

$

Currently unavailable

19

Homelite 01802

SWITCH
(Superseded to UP06786)

$

$

Not available
