Z 4219 (968999511) - Husqvarna 42" Zero-Turn Mower (2007-12) ENGINE Parts Diagram

42" Zero-Turn Mower

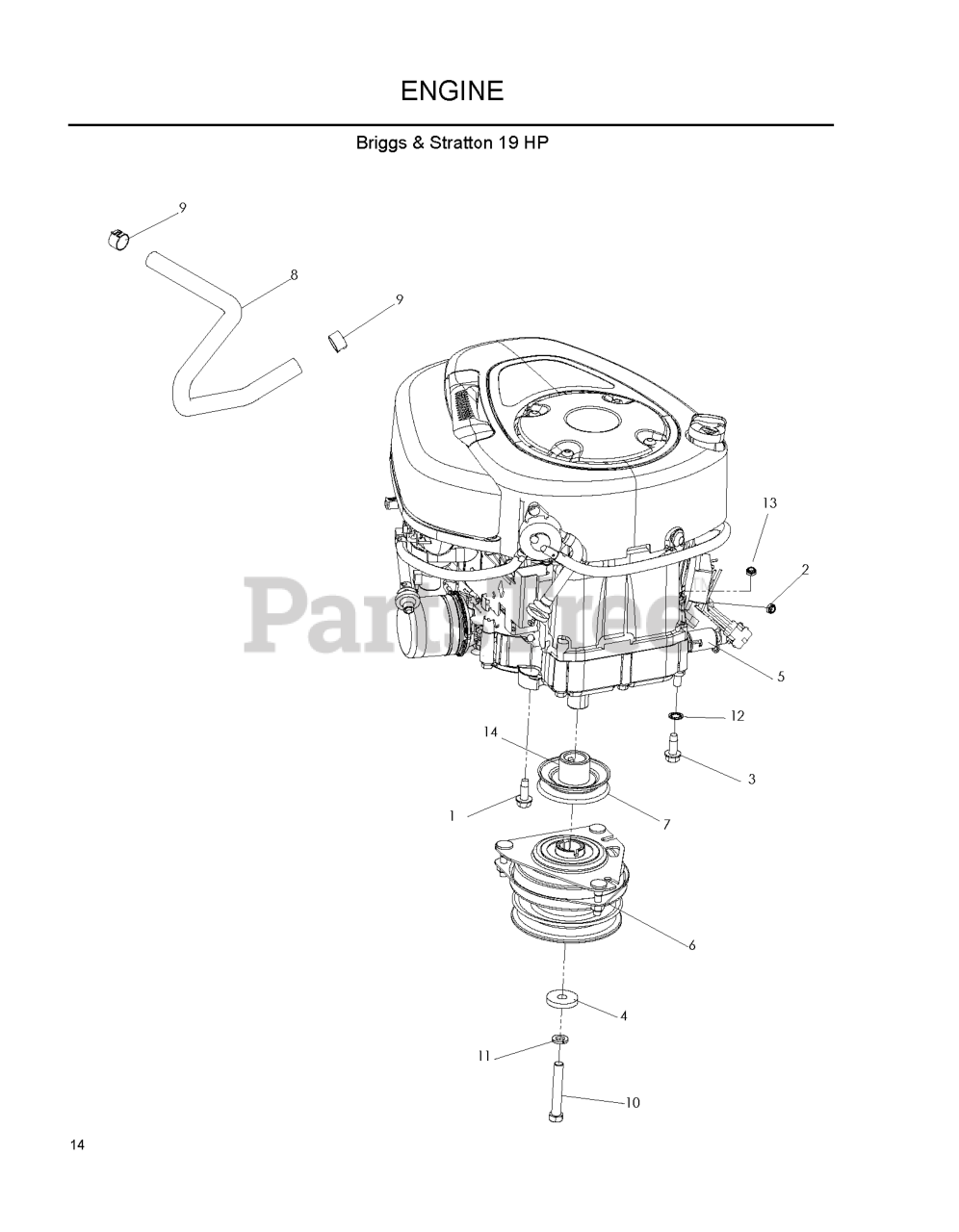

ENGINE Parts Diagram

  • Title
5

Husqvarna 539110093

OIL DRAIN FITTING
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

6

Husqvarna 539110417

CLUTCH 90 FT/LB OGURA
(Superseded to 583389701)

$399.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

13

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

14

Husqvarna 539114542

SPACER, ENGINE - PULLEY

$10.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 539111902

MUFFLER

Note: NOT SHOWN

$

$

Not available

7

Husqvarna 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, only 3 left!

0

11

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

12

Husqvarna 539990390

WASHER, 3/8 ITLW ZN

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 539923388

HEX SCREW 7/16-20 X 3

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

4

Husqvarna 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

3

Husqvarna 539110025

BOLT 3/8-16 X 1 1/2 ZINC CLEAR

$4.99

$

Usually ships in 3-10 days

0
