Z 4219 (968999511) - Husqvarna 42" Zero-Turn Mower (2007-12) CHASSIS / FRAME Parts Diagram

42" Zero-Turn Mower

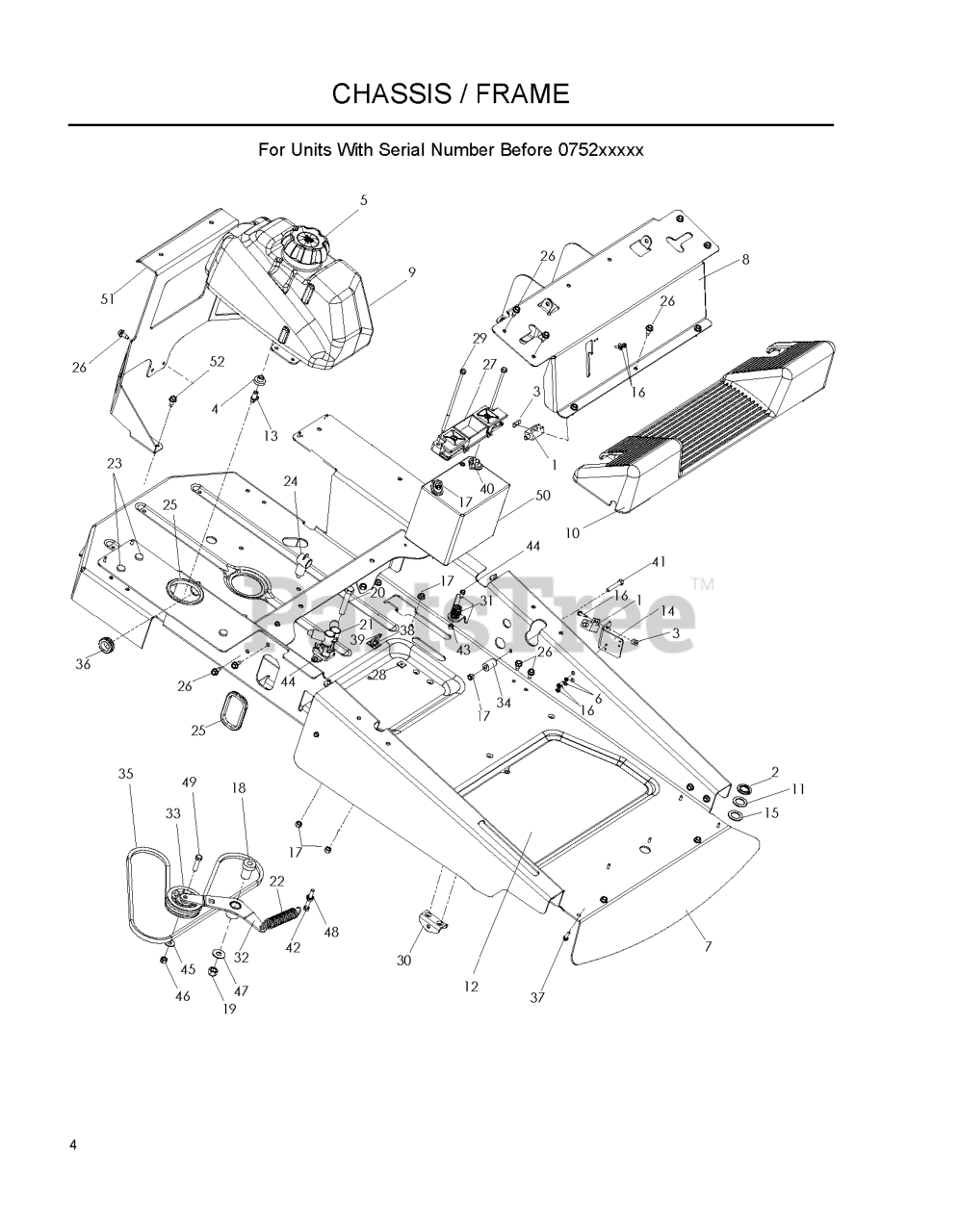

CHASSIS / FRAME Parts Diagram

  • Title
44

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

37

Husqvarna 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539110310

SLIP, MATTING

$21.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 8

0

10

Husqvarna 539110284

FOOT REST GRAY

$74.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

21

$26.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

Note: NOT SHOWN

$9.49

$

Usually ships in 3-10 days

0

48

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 1 left!

0

24

$4.99

$

In Stock, only 2 left!

0

$17.99

$

In Stock, Qty 10

0

16

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

29

Husqvarna 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

45

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

14

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

- -

Husqvarna 539107616

BATTERY CABLE-POS

Note: NOT SHOWN

$

$

Not available

38

Husqvarna 539110863

MOUNTING BLOCK CABLE TIE

$3.99

$

Usually ships in 3-10 days

0

42

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 539109552

WASHER - 3/16 LOCK ZD

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

43

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

9

$

$

Not available

7

Husqvarna 539110377

FRAME W/DECALS

$

$

Not available

28

Husqvarna 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0

25

$14.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539976856

TIE, PLASTIC

$5.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539110312

MOTION LIMITER

$4.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 539101151

RETAINING RING, 7/8"

$

$

Not available

40

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

35

Husqvarna 539110411

BELT, HYDRO PUMP

$31.99

$

In Stock, Qty 20+

0

41

Husqvarna 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539110219

PUMP IDLER WELDMENT

$103.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539110433

GROMMET, FUEL LINE

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539133037

SEAT SUPPORT W/DECALS

$

$

Not available

27

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

50

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

30

Husqvarna 539110030

BRACKET, DECK HANGER

$9.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 539110070

SPRING, RETURN TO NEUTRAL

$

$

Not available

23

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

26

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

4

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 12

0

- -

Husqvarna 539110290

FOAM STRIP, FUEL TANK

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0

$7.99

$

In Stock, only 3 left!

0

- -

Husqvarna 539110309

WIRING HARNESS

Note: NOT SHOWN

$

$

Not available
