Z 4219 (968999511) - Husqvarna 42" Zero-Turn Mower (2006-09) CONTROLS Parts Diagram

42" Zero-Turn Mower

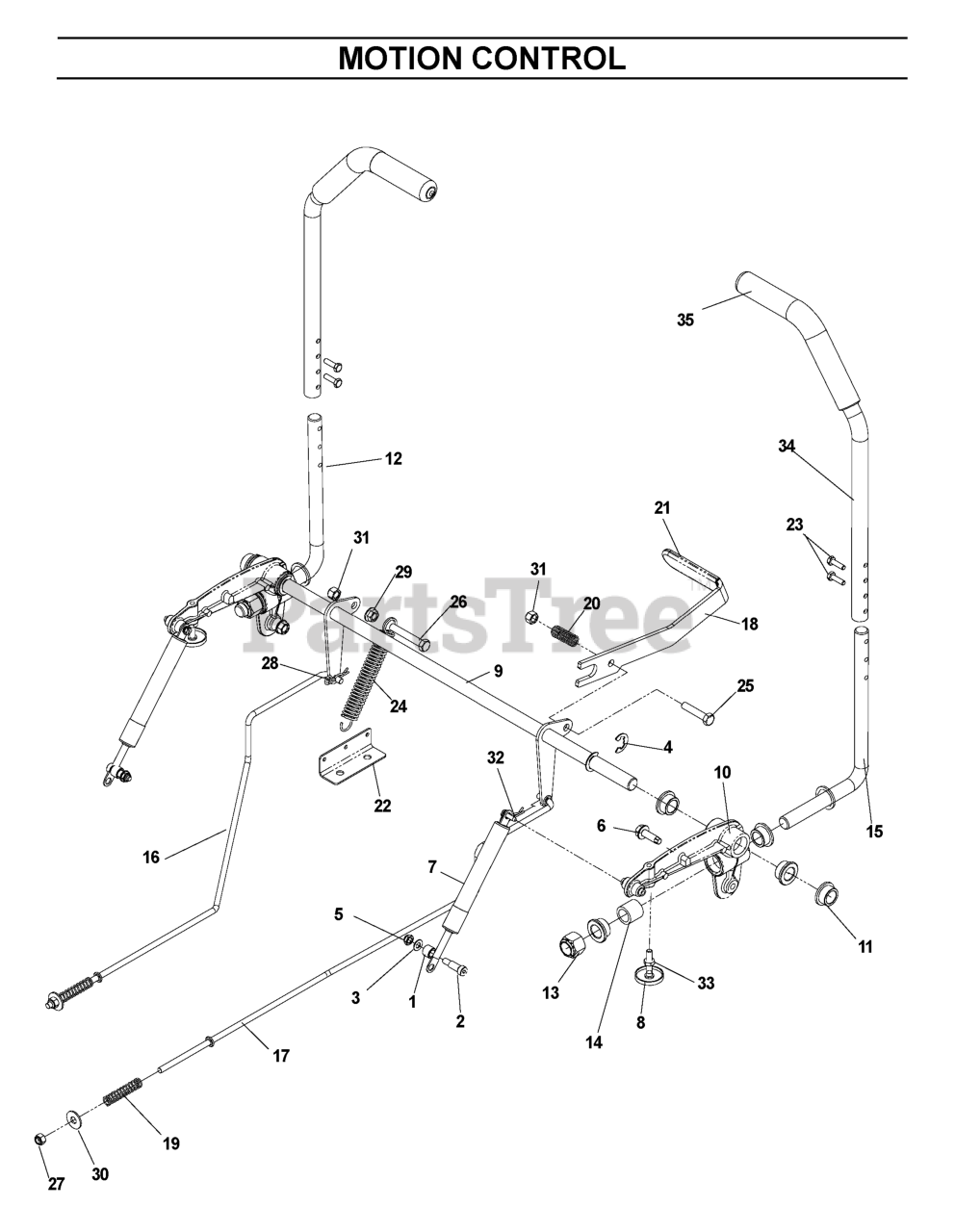

CONTROLS Parts Diagram

  • Title

10

Husqvarna 532164553

BELT GUIDE

$

$

Not available

11

Husqvarna 817541011

Screw, Hex Washer Head #10-24 x .668

$

$

Not available

23

Husqvarna 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

40

Husqvarna 532750550

WHEEL.8X2.PR.LP.RAD.GREY

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532161581

TRANSMISSION.ASSEM.NLA

$

$

Not available

14

Husqvarna 532145354

PIN.SPRING.THRUST

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532164557

DOWNSTOP BRACKET
(Superseded to 532161478)

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532167387

BEARING.BALL.DOUBLE.SEAL

$7.49

$

In Stock, only 2 left!

0

5

Husqvarna 532161537

DRIVE COVER
(Superseded to 532400783)

$12.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532164795

DRIVE PAWL

$

$

Not available

4

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532057808

SCREW

$

$

Not available

15

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 10

0

16

Husqvarna 532164551

ROD
(Superseded to 532414284)

$40.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532155171

WHEEL ASSY
(Superseded to 532193139)

$66.99

$

In Stock, Qty 5

0

26

Husqvarna 532165096

DRIVE PINION RH

$

$

Not available

36

Husqvarna 532164550

SHAFT ASSY
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532161602

SPRING
(Superseded to 532409616)

$7.49

$

In Stock, only 2 left!

0

6

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

9

Husqvarna 532163939

PULLEY

$20.99

$

Usually ships in 3-10 days

0

20

Husqvarna 812000022

E-RING

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532057143

WAVE WASHER
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

21

Husqvarna 532163365

RP BEARING SUPPORT
(Superseded to 532169920)

$

$

Not available

7

Husqvarna 532160816

V-BELT

$27.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532161587

CABLE.DRIVE.21.RWGD.

$

$

Not available

2

Husqvarna 532161473

BAIL.CONT.DR.21.RWGD.BLACK

$20.99

$

In Stock, only 3 left!

0

12

Husqvarna 532075192

SPRING

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

43

Husqvarna 819572216

WASHER.ZINC.PLATED

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532157008

HUBCAP.8".GREY

$

$

Not available

19

Husqvarna 532161961

KNOB
(Superseded to 532189808)

$

$

Not available

33

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532164554

SPRING
(Superseded to 532160477)

$

$

Not available

29

Husqvarna 532088080

DUST SHROUD PM
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

35

Husqvarna 532164552

SHAFT ASSY
(Superseded to 532160785)

$36.99

$

Usually ships in 3-10 days

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

27

Husqvarna 532165097

PINION.DRIVE.LH

$12.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0
