Z 4218 KOA (968999281) - Husqvarna 42" Zero-Turn Mower (2005-08) Motion Control Parts Diagram

42" Zero-Turn Mower

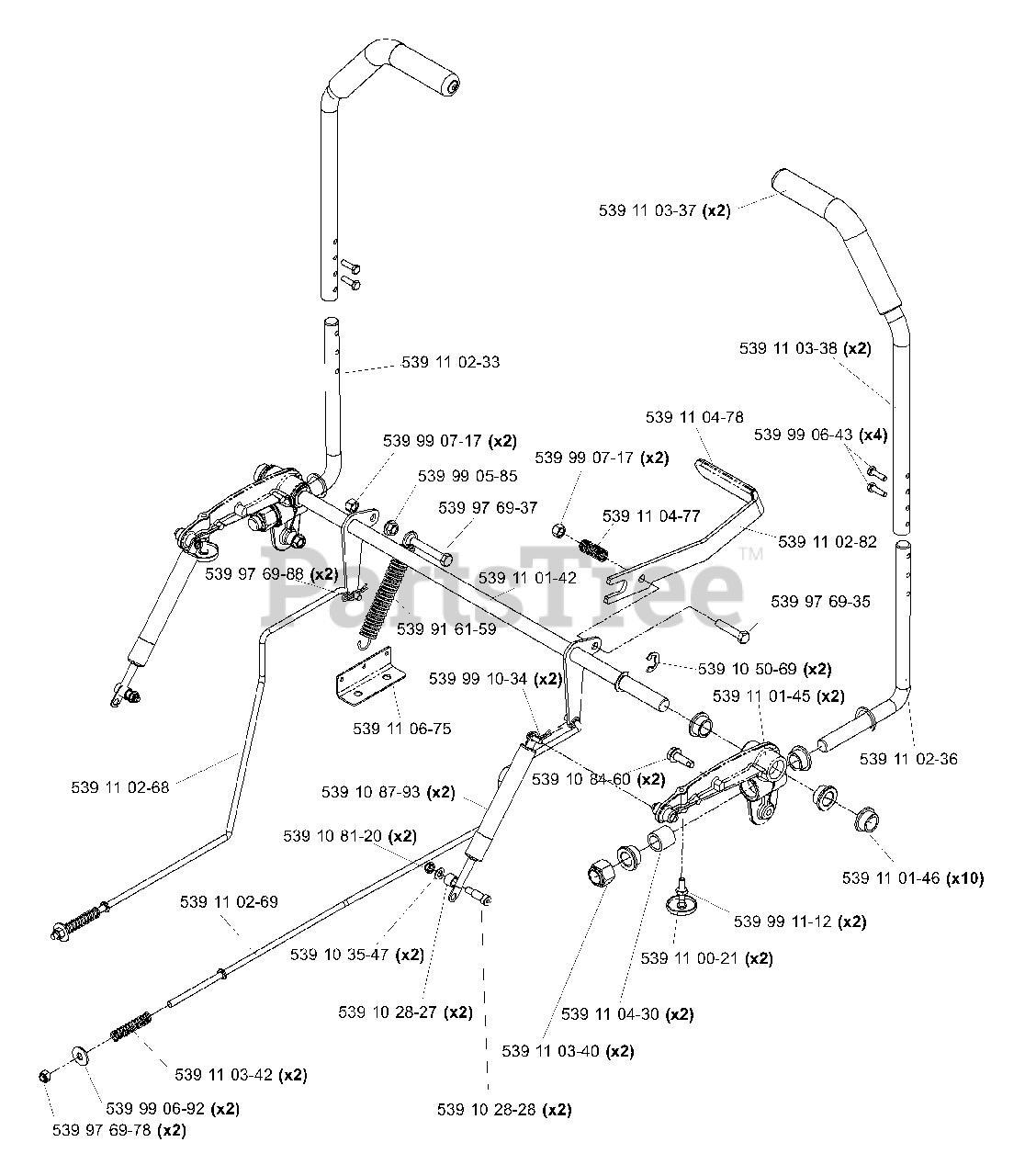

Motion Control Parts Diagram

  • Title
539102827

$6.49

$

In Stock, only 2 left!

0

539102828

Husqvarna 539102828

SCREW, 5/16 X 5/8 SHOULDER

$

$

Not available

539103547

$0.99

$

In Stock, only 2 left!

0

539105069

Husqvarna 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

539108120

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

539108460

Husqvarna 539108460

BOLT 5/16-18 X 1 1/4 TFS

$3.99

$

In Stock, only 1 left!

0

539108793

$

$

Not available

539110021

Husqvarna 539110021

POST, RETURN TO NEUTRAL

$

$

Not available

539110142

Husqvarna 539110142

SHAFT, MOTION, BRAKE PLATED

$

$

Not available

539110145

Husqvarna 539110145

Motion Casting

$

$

Not available

539110146

Husqvarna 539110146

MOTION BUSHING
(Superseded to 539113121)

$

$

Not available

539110233

Husqvarna 539110233

MOTION CONTROL ARM, WLDMNT LH

$72.99

$

Usually ships in 3-10 days

0

539110236

Husqvarna 539110236

MOTION CONTROL ARM, WLDMNT RH

$72.99

$

Usually ships in 3-10 days

0

539110268

Husqvarna 539110268

BRAKE ROD FORMED RT

$

$

Not available

539110269

Husqvarna 539110269

BRAKE ROD FORMED LT

$

$

Not available

539110282

Husqvarna 539110282

BRAKE LEVER

$12.99

$

Usually ships in 3-10 days

0

539110337

Husqvarna 539110337

CONTROL LEVER CUSHION

$8.99

$

Usually ships in 3-10 days

0

539110338

Husqvarna 539110338

CONTROL LEVER

$66.99

$

In Stock, only 1 left!

0

539110340

Husqvarna 539110340

NUT 5/8-11 NYLOC

$3.99

$

Usually ships in 3-10 days

0

539110342

$

$

Not available

539110430

Husqvarna 539110430

BUSHING ELASTOMER

$4.99

$

Usually ships in 3-10 days

0

539110477

Husqvarna 539110477

BRAKE LEVER SPRING

$

$

Not available

539110478

Husqvarna 539110478

BRAKE LEVER CAP

$2.99

$

Usually ships in 3-10 days

0

539110675

Husqvarna 539110675

SPRING BRACKET

$

$

Not available

539916159

Husqvarna 539916159

SPRING-TRANS

$7.49

$

In Stock, only 4 left!

0

539976935

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

539976937

Husqvarna 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

539976978

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

539976988

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

539990585

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539990643

Husqvarna 539990643

HCS 1/4-20X7/8 GR5

$3.99

$

Usually ships in 3-10 days

0

539990692

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539991034

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

539991112

Husqvarna 539991112

NUT 1/4-20 JAM

$3.99

$

In Stock, only 4 left!

0
