Z 4218 KOA (968999281) - Husqvarna 42" Zero-Turn Mower (2005-08) Deck Assembly 42" Parts Diagram

42" Zero-Turn Mower

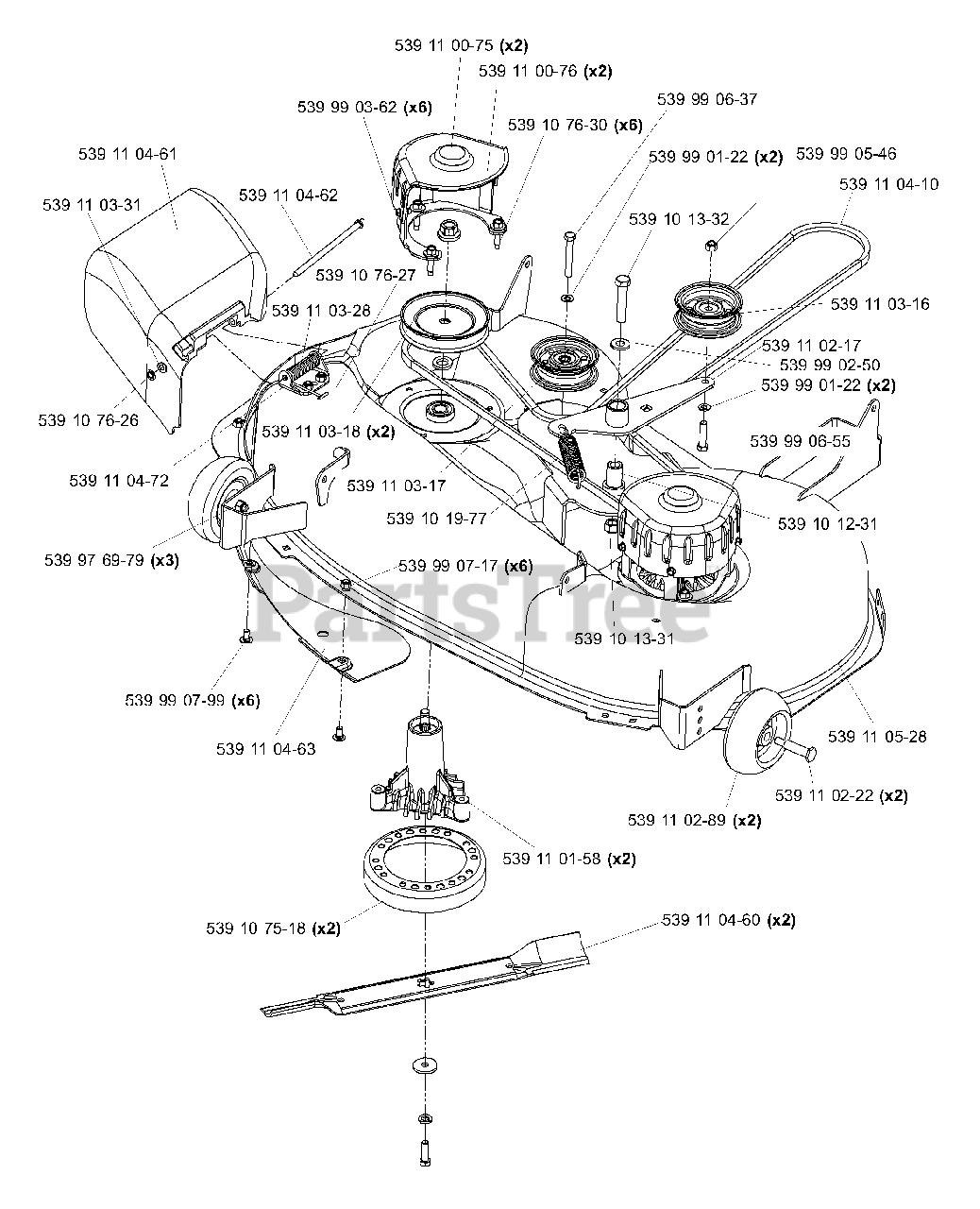

Deck Assembly 42" Parts Diagram

  • Title

539101231

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

539101331

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539101977

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

539107518

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

539107626

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

539107627

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

539107630

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

539110075

Husqvarna 539110075

SPINDLE COVER

$

$

Not available

539110076

Husqvarna 539110076

SPINDLE COVER ANCHOR

$

$

Not available

539110158

Husqvarna 539110158

SPINDLE, MANDREL ASM
(Superseded to 532130794)

$56.99

$

In Stock, only 2 left!

0

539110217

Husqvarna 539110217

DECK IDLER ARM WELDMENT

$

$

Not available

539110222

Husqvarna 539110222

BOLT, SHOULDER
(Superseded to 532004898)

$

$

Not available

539110289

Husqvarna 539110289

WHEEL GUAGE

$8.99

$

In Stock, only 2 left!

0

539110316

Husqvarna 539110316

PULLEY, IDLER, SHORT

$

$

Not available

539110317

Husqvarna 539110317

IDLER PULLEY ASM

$

$

Not available

539110318

Husqvarna 539110318

PULLEY, MANDREL

$12.99

$

In Stock, only 2 left!

0

539110328

Husqvarna 539110328

SPRING, TORSION DEFLECTOR
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

539110331

Husqvarna 539110331

WASHER, 11/32 X 5/8 X 16 GA
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

539110410

Husqvarna 539110410

BELT, V MOWER DECK 42"

$78.99

$

In Stock, only 1 left!

0

539110460

Husqvarna 539110460

BLADE 42" MULCHING STD
(Superseded to 532134149)

$

$

Not available

539110461

Husqvarna 539110461

SHEILD DEFLECTOR
(Superseded to 532171859)

$39.99

$

In Stock, Qty 9

0

539110462

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

539110463

Husqvarna 539110463

BAFFLE VORTEX 42
(Superseded to 532159770)

$

$

Not available

539110472

Husqvarna 539110472

BRACKET DEFLECTOR MOWER 42
(Superseded to 532177563)

$

$

Not available

539110528

Husqvarna 539110528

DECK W/DECALS 42" ORANGE

$3399.99

$

Usually ships in 3-10 days

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539990122

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

539990250

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

539990362

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

539990546

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539990637

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

539990655

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539990799

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0
