Z 4218 (968999281) - Husqvarna 42" Zero-Turn Mower (2007-04) 42" Cutting Deck Parts Diagram

42" Zero-Turn Mower

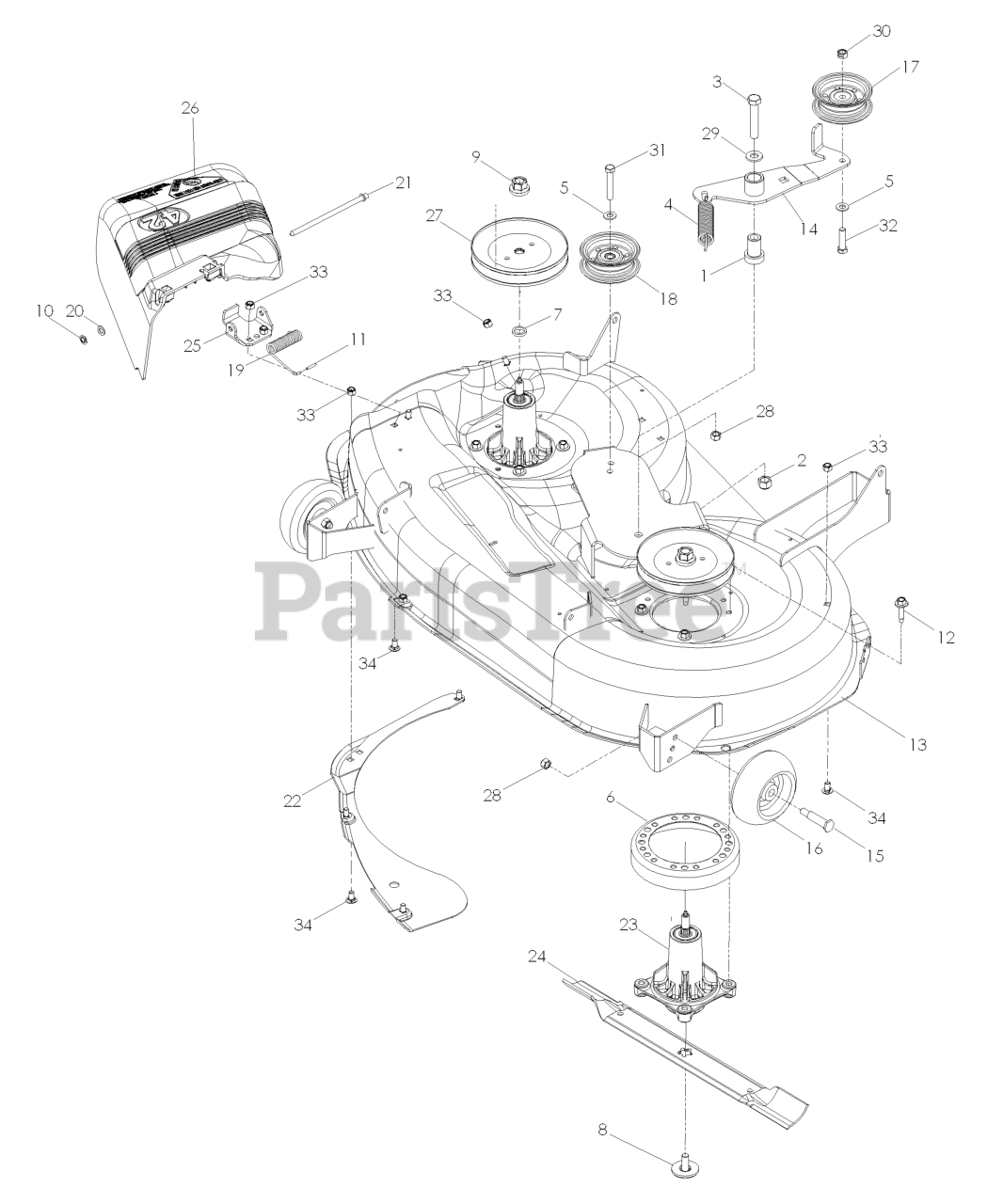

42" Cutting Deck Parts Diagram

  • Title

1

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

4

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

5

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

10

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 539110528

DECK W/DECALS 42" ORANGE

$3399.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110217

DECK IDLER ARM WELDMENT

$

$

Not available

15

Husqvarna 539110222

BOLT, SHOULDER
(Superseded to 532004898)

$

$

Not available

16

Husqvarna 539110289

WHEEL GUAGE

$8.99

$

In Stock, only 2 left!

0

17

Husqvarna 539110316

PULLEY, IDLER, SHORT

$

$

Not available

18

Husqvarna 539110317

IDLER PULLEY ASM

$

$

Not available

19

Husqvarna 539110328

SPRING, TORSION DEFLECTOR
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

20

Husqvarna 539110331

WASHER, 11/32 X 5/8 X 16 GA
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

22

Husqvarna 539110463

BAFFLE VORTEX 42
(Superseded to 532159770)

$

$

Not available

23

Husqvarna 539112057

MANDREL GREASABLE
(Superseded to 587820301)

$56.99

$

In Stock, Qty 18

0

24

Husqvarna 539110460

BLADE 42" MULCHING STD
(Superseded to 532134149)

$

$

Not available

25

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

26

Husqvarna 532193108

DEFLECTOR 42
(Superseded to 532403004)

$44.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532195945

PULLEY.MANDREL.5.438.P

$14.99

$

In Stock, Qty 20+

0

28

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

30

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

31

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539102548

BELT, MULE DRIVE

Note: NOT SHOWN

$

$

Not available
