Z 4217 BIA (968999280) - Husqvarna 42" Zero-Turn Mower (2006-04) Console Assembly Parts Diagram

42" Zero-Turn Mower

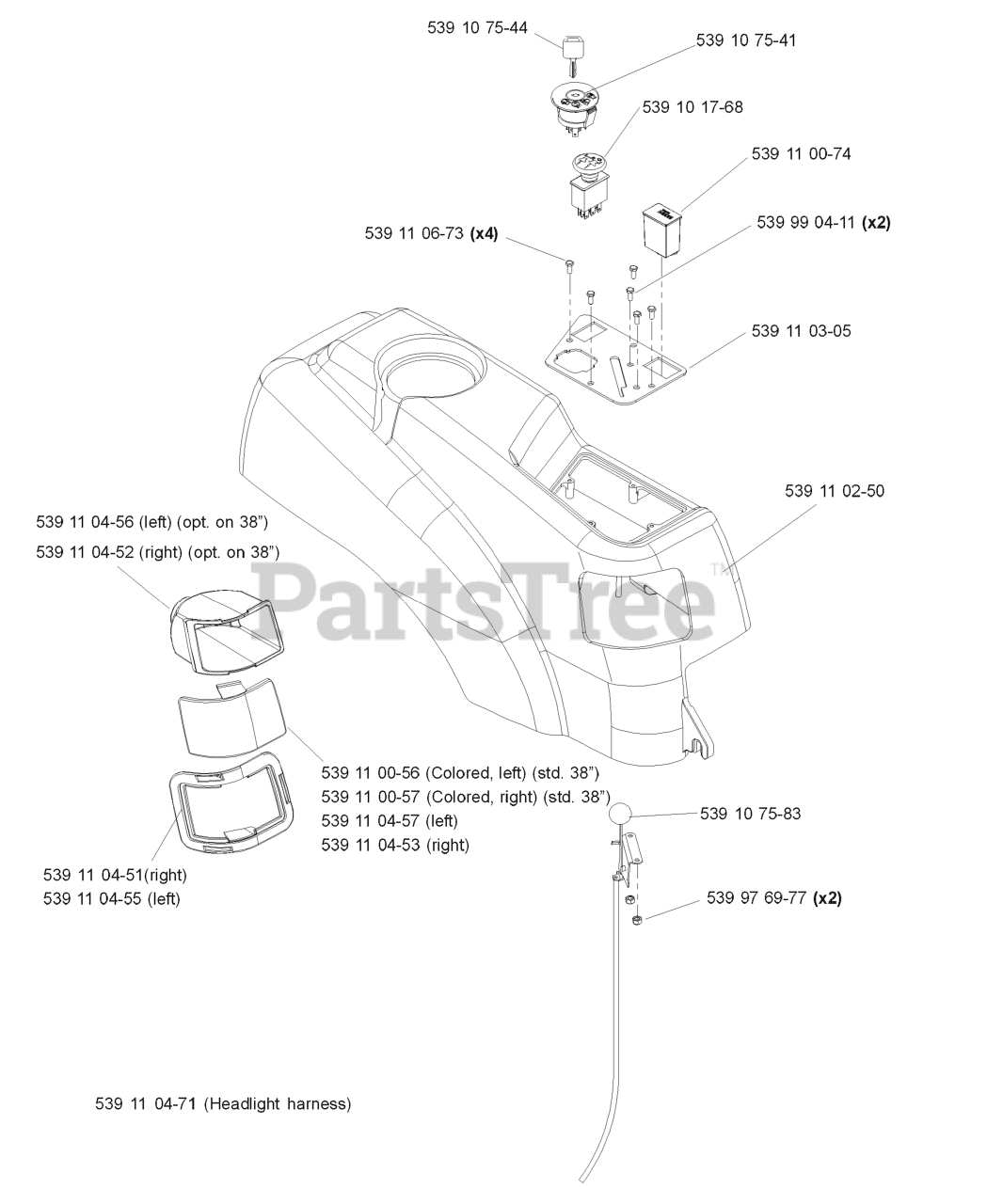

Console Assembly Parts Diagram

  • Title

539101768

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

539107541

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

539107544

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

539107583

Husqvarna 539107583

THROTTLE CABLE DETENT

$

$

Not available

539110074

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

539110250

Husqvarna 539110250

FENDER, CONSOLE
(Superseded to 539130375)

$

$

Not available

539110305

Husqvarna 539110305

PLATE.CONTROL.CONSOLE.BLACK

$31.99

$

Usually ships in 3-10 days

0

539110451

Husqvarna 539110451

RT HEADLIGHT RIM GREY

$6.49

$

Usually ships in 3-10 days

0

539110453

Husqvarna 539110453

RT HEADLIGHT LENS

$7.49

$

Usually ships in 3-10 days

0

539110455

Husqvarna 539110455

LEFT HEADLIGHT RIM GREY

$6.49

$

Usually ships in 3-10 days

0

539110457

Husqvarna 539110457

LEFT HEADLIGHT LENS

$7.49

$

In Stock, only 1 left!

0

539110471

Husqvarna 539110471

HEADLIGHT HARNESS

$27.99

$

Usually ships in 3-10 days

0

539110673

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

539976977

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

539990411

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0
