Z 4217 (968999280) - Husqvarna 42" Zero-Turn Mower (2006-04) MOWER LIFT / DECK LIFT Parts Diagram

42" Zero-Turn Mower

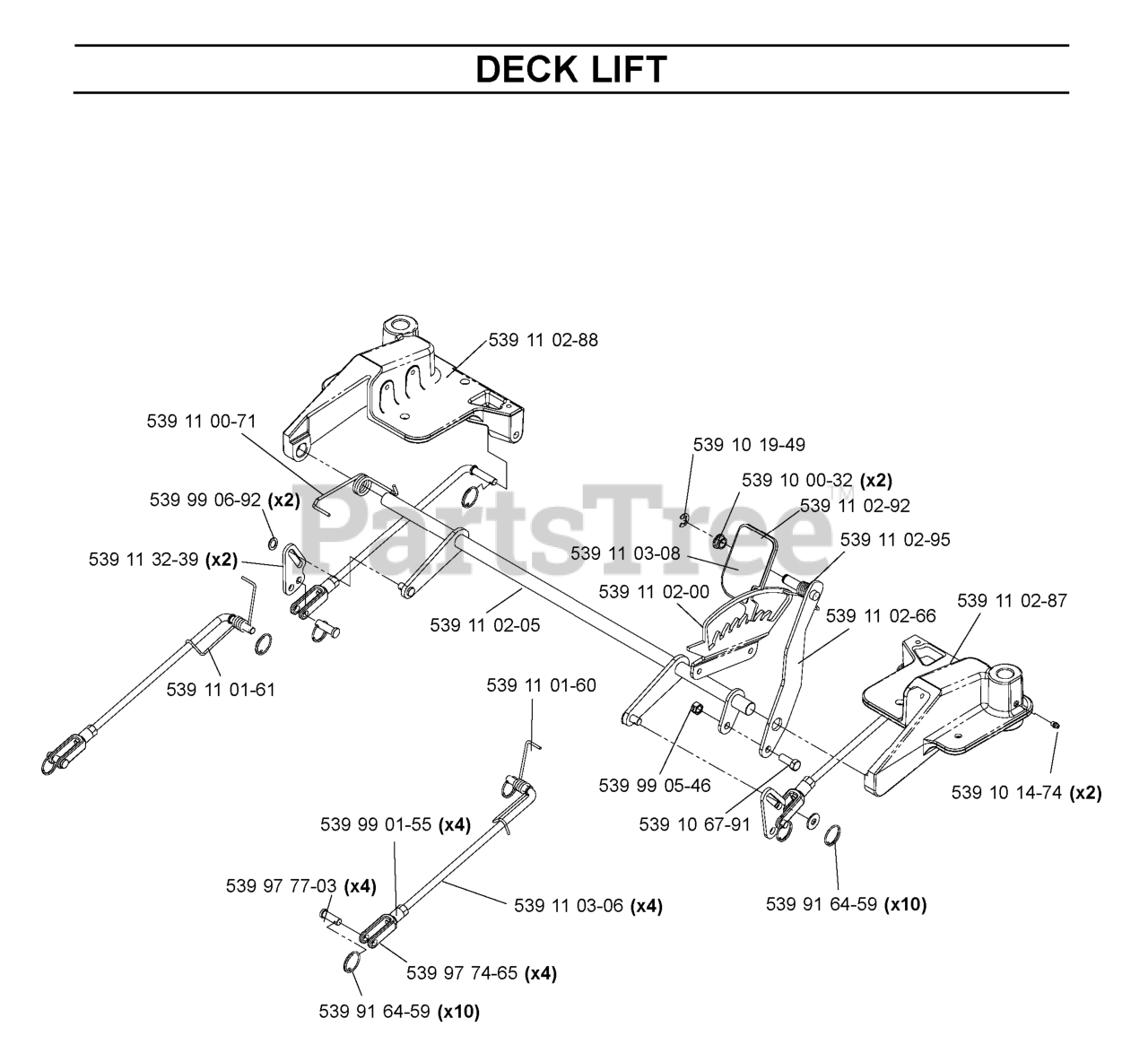

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
539 11 00-71

Husqvarna 539110071

TORSION SPRING, DECK LIFT

$8.99

$

In Stock, only 2 left!

0

539 99 01-55

$4.99

$

In Stock, Qty 16

0

539 99 05-46

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539 11 01-60

Husqvarna 539110160

SPRING, DECK ROD RIGHT

$7.49

$

In Stock, only 1 left!

0

539 11 02-88

Husqvarna 539110288

CASTER CASTING LEFT, PAINTED

$103.99

$

Usually ships in 3-10 days

0

539 97 77-03

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$5.99

$

In Stock, Qty 11

0

539 11 02-05

Husqvarna 539110205

DECK LIFT ASM PAINTED

$398.99

$

In Stock, only 1 left!

0

539 10 67-91

Husqvarna 539106791

HEX BOLT 3/8 X 1"

$3.99

$

Usually ships in 3-10 days

0

539 11 02-92

Husqvarna 539110292

FOOT PEDAL

$

$

Not available

539 97 74-65

Husqvarna 539977465

YOKE-3/8-24 PLTD

$24.99

$

In Stock, Qty 11

0

539 10 00-32

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

539 11 02-95

Husqvarna 539110295

SPRING, PEDAL, LIFT

$6.49

$

In Stock, only 4 left!

0

539 10 14-74

$3.99

$

Usually ships in 3-10 days

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539 91 64-59

$6.49

$

In Stock, Qty 5

0

539 10 19-49

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

539 11 32-39

Husqvarna 539113239

CONNECTOR, DECK LIFT

$

$

Not available

539 11 02-66

Husqvarna 539110266

LIFT FOOT, LEVER WELDED
(Superseded to 539110275)

$

$

Not available

539 11 02-00

Husqvarna 539110200

HEIGHT ADJUSTER PLATE
(Superseded to 539113931)

$

$

Not available

539 11 03-06

Husqvarna 539110306

DECK LIFT ROD

$

$

Not available

539 11 02-87

Husqvarna 539110287

CASTER CASTING, RIGHT, PAINTED

$136.99

$

Usually ships in 3-10 days

0

539 11 03-08

Husqvarna 539110308

FOOT PAD, NON-SLIP

$

$

Not available

539 11 01-61

Husqvarna 539110161

SPRING, DECK ROD LEFT

$

$

Not available
