Z 4217 (968999280) - Husqvarna 42" Zero-Turn Mower (2006-04) MOWER DECK / CUTTING DECK Parts Diagram

42" Zero-Turn Mower

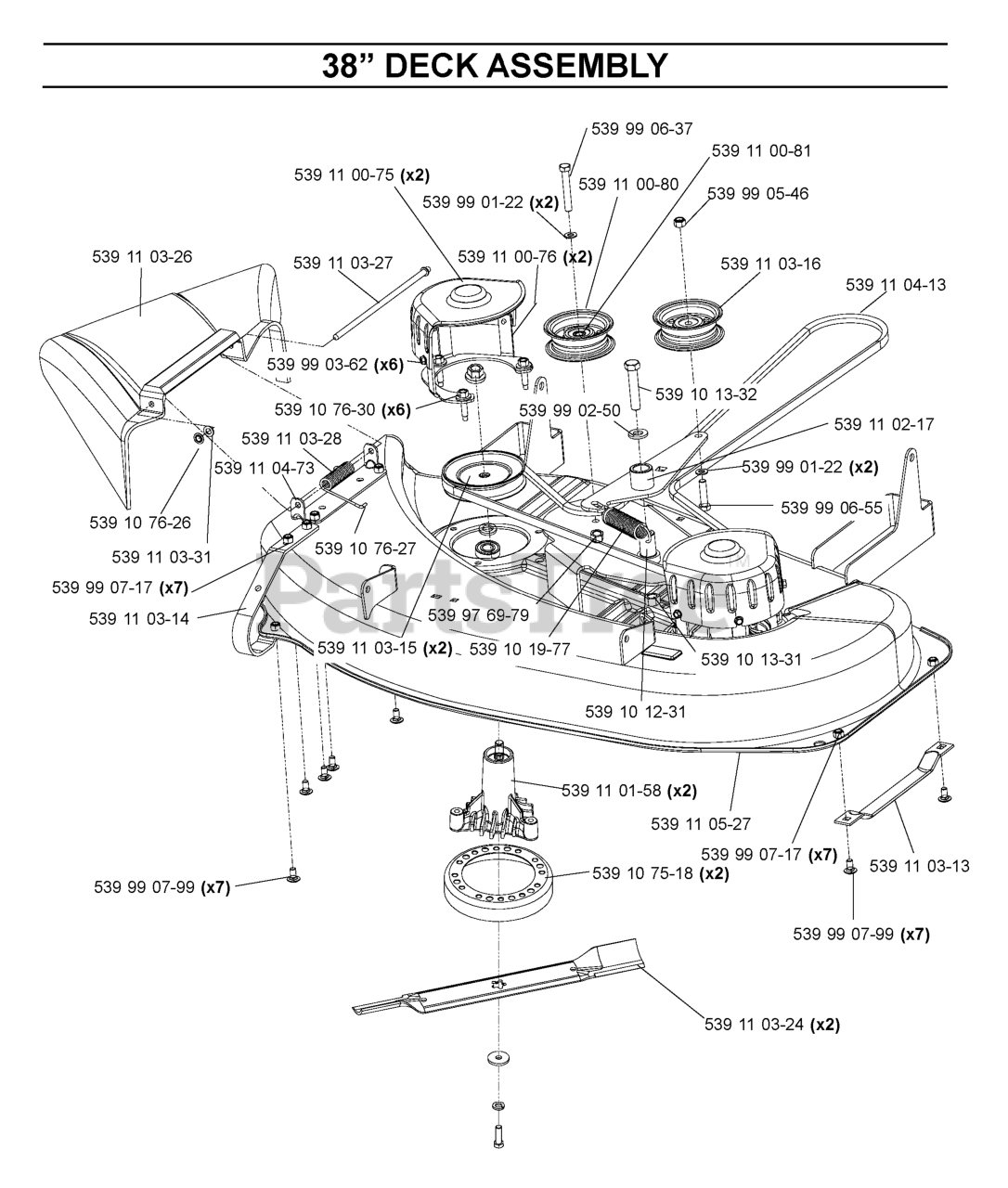

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

539 10 13-32

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

539 99 01-22

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

539 11 05-27

Husqvarna 539110527

DECK W/DECALS 38" ORANGE

$

$

Not available

539 10 76-26

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

539 99 03-62

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

539 99 02-50

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

539 11 03-14

Husqvarna 539110314

RUNNER RH
(Superseded to 532128772)

$

$

Not available

539 11 03-16

Husqvarna 539110316

PULLEY, IDLER, SHORT

$

$

Not available

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 10 75-18

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

539 99 06-37

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

539 11 03-13

Husqvarna 539110313

RUNNER LH
(Superseded to 532125074)

$18.99

$

Usually ships in 3-10 days

0

539 11 03-26

Husqvarna 539110326

SHEILD DEFLECTOR
(Superseded to 532175943)

$

$

Not available

539 11 00-81

Husqvarna 539110081

BEARING INSERT

$

$

Not available

539 99 07-99

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

539 11 03-27

Husqvarna 539110327

ROD, HINGE
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

539 11 00-80

Husqvarna 539110080

PULLEY, IDLER

$

$

Not available

539 11 04-13

Husqvarna 539110413

DECK BELT

$

$

Not available

539 11 03-24

Husqvarna 539110324

BLADE 38" MULCHING STD
(Superseded to 532134148)

$26.99

$

In Stock, only 2 left!

0

539 11 00-76

Husqvarna 539110076

SPINDLE COVER ANCHOR

$

$

Not available

539 11 03-28

Husqvarna 539110328

SPRING, TORSION DEFLECTOR
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

539 99 05-46

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539 11 00-75

Husqvarna 539110075

SPINDLE COVER

$

$

Not available

539 10 19-77

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

539 11 03-15

Husqvarna 539110315

PULLEY MANDREL
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

539 10 76-30

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539 11 02-17

Husqvarna 539110217

DECK IDLER ARM WELDMENT

$

$

Not available

539 10 12-31

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

539 11 03-31

Husqvarna 539110331

WASHER, 11/32 X 5/8 X 16 GA
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

539 11 01-58

Husqvarna 539110158

SPINDLE, MANDREL ASM
(Superseded to 532130794)

$56.99

$

In Stock, Qty 5

0

539 10 76-27

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

539 99 06-55

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

539 11 04-73

Husqvarna 539110473

BRACKET, MOWER DEFLECTOR
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0
