Z 42 F (967327701) - Jonsered Zero-Turn Mower (2015-01) SEAT Parts Diagram

Zero-Turn Mower

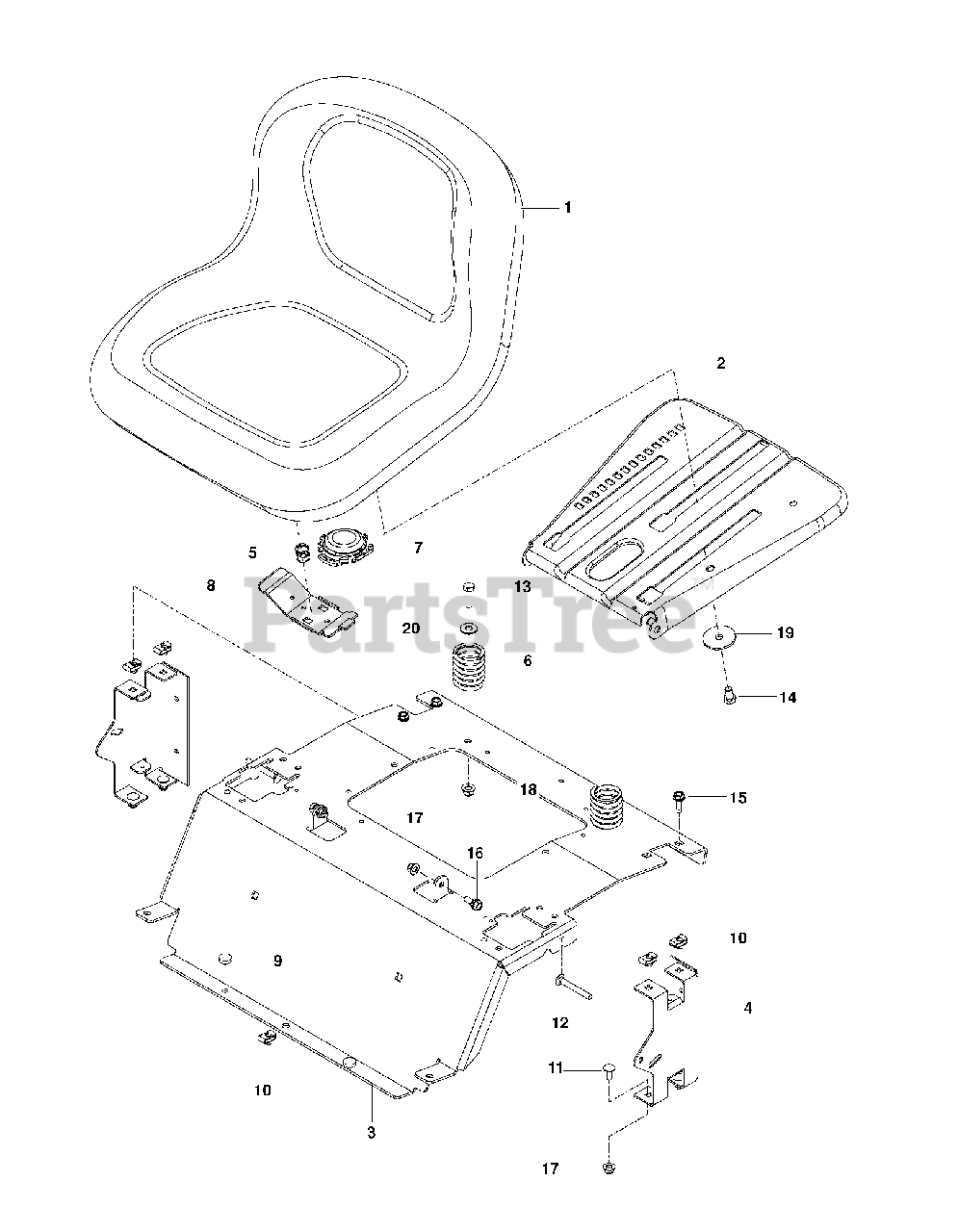

SEAT Parts Diagram

  • Title

1

Jonsered 532406625

SEAT.TG150.BLK.NLOGO.

$265.99

$

Usually ships in 3-10 days

0

2

Jonsered 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

3

Jonsered 577260509

SUPPORT.PNT.SEAT.JN-RED

$

$

Not available

4

Jonsered 580308202

SUPPORT REAR SEAT BLACK

$22.99

$

Usually ships in 3-10 days

0

5

Jonsered 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

6

Jonsered 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

7

Jonsered 539132140

SWITCH, SEAT N/C

$14.99

$

Usually ships in 3-10 days

0

8

Jonsered 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK
(Superseded to 595088102)

$5.99

$

In Stock, Qty 7

0

9

Jonsered 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

10

Jonsered 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

11

Jonsered 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

12

Jonsered 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

13

Jonsered 874780620

BOLT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

14

Jonsered 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

16

Jonsered 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

18

Jonsered 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 539111897

WASHER, 3/8 SPEC
(Superseded to 596917301)

$5.99

$

In Stock, Qty 6

0

20

Jonsered 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0
