Z 42 F (967327701) - Jonsered Zero-Turn Mower (2015-01) MOWER DECK / CUTTING DECK Parts Diagram

Zero-Turn Mower

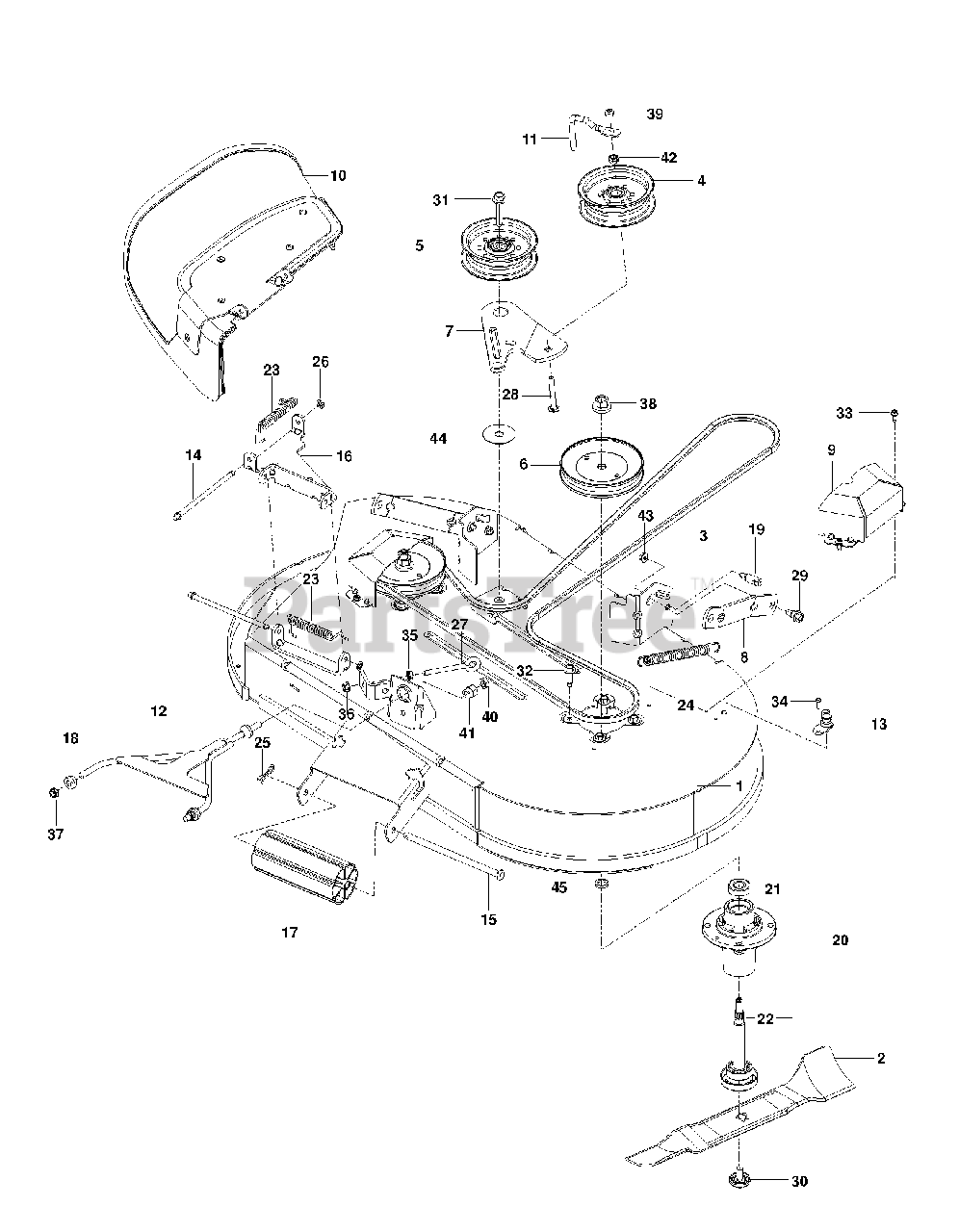

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

586979404

$

$

Not available

2

Jonsered 586918101

Mower Blade, 42" FCS Bagging
(Superseded to 586918102)

$31.99

$

In Stock, Qty 6

0

3

Jonsered 587270001

Drive Belt, 42" Deck FCS ZTR

$74.99

$

In Stock, only 3 left!

0

4

Jonsered 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

5

Jonsered 532196104

PULLEY.IDLER.MWR.STATI

$43.99

$

In Stock, Qty 17

0

6

Jonsered 532199791

PULLEY MANDREL 5.0"

$31.99

$

In Stock, only 2 left!

0

7

Jonsered 586874002

ARM.42"FCS.CLUTCHING.X431

$20.99

$

Usually ships in 3-10 days

0

8

Jonsered 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

9

586936804

$

$

Not available

10

Jonsered 587045201

Deflector Assembly, 42" FCS Orange
(Superseded to 587305701)

$87.99

$

Usually ships in 3-10 days

0

11

Jonsered 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

12

Jonsered 587256302

LINK.FRONT.WLDMNT.RZ X431

$43.99

$

Usually ships in 3-10 days

0

13

Jonsered 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 10

0

14

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

15

Jonsered 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

16

586918005

$

$

Not available

17

Jonsered 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 18

0

18

Jonsered 532195263

BUSHING SPHERICAL SUSP. FRONT
(Superseded to 593842101)

$5.99

$

In Stock, only 3 left!

0

19

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

20

Jonsered 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 11

0

21

Jonsered 532110485

BEARING

$13.99

$

In Stock, Qty 14

0

22

Jonsered 532187291

SHAFT ASM MANDREL
(Superseded to 597023501)

$28.99

$

In Stock, Qty 7

0

23

Jonsered 587354701

Deflector Spring, 42 FCS

$6.99

$

In Stock, Qty 10

0

24

Jonsered 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

In Stock, only 2 left!

0

25

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

Usually ships in 3-10 days

0

28

Jonsered 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

29

Jonsered 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

30

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

31

Jonsered 587333301

Screw, 7/16-14 X 2.125.Washer
(Superseded to 588438301)

$6.99

$

Usually ships in 3-10 days

0

32

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

33

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

34

Jonsered 532152927

SCREW

$7.49

$

In Stock, only 2 left!

0

35

Jonsered 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

36

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

37

Jonsered 573975201

NUT, 7/16-20 HEX NYLOC ZC

$3.99

$

Usually ships in 3-10 days

0

38

Jonsered 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

39

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

40

Jonsered 873360700

NUT **

$5.99

$

Usually ships in 3-10 days

0

41

Jonsered 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 12

0

42

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

43

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

44

Jonsered 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

45

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0
