Z 42 E XP (34ABB2CS766) - Troy-Bilt Mustang 42" Zero-Turn Mower, Electric (2023) Seat Adjustment Parts Diagram

Mustang 42" Zero-Turn Mower, Electric

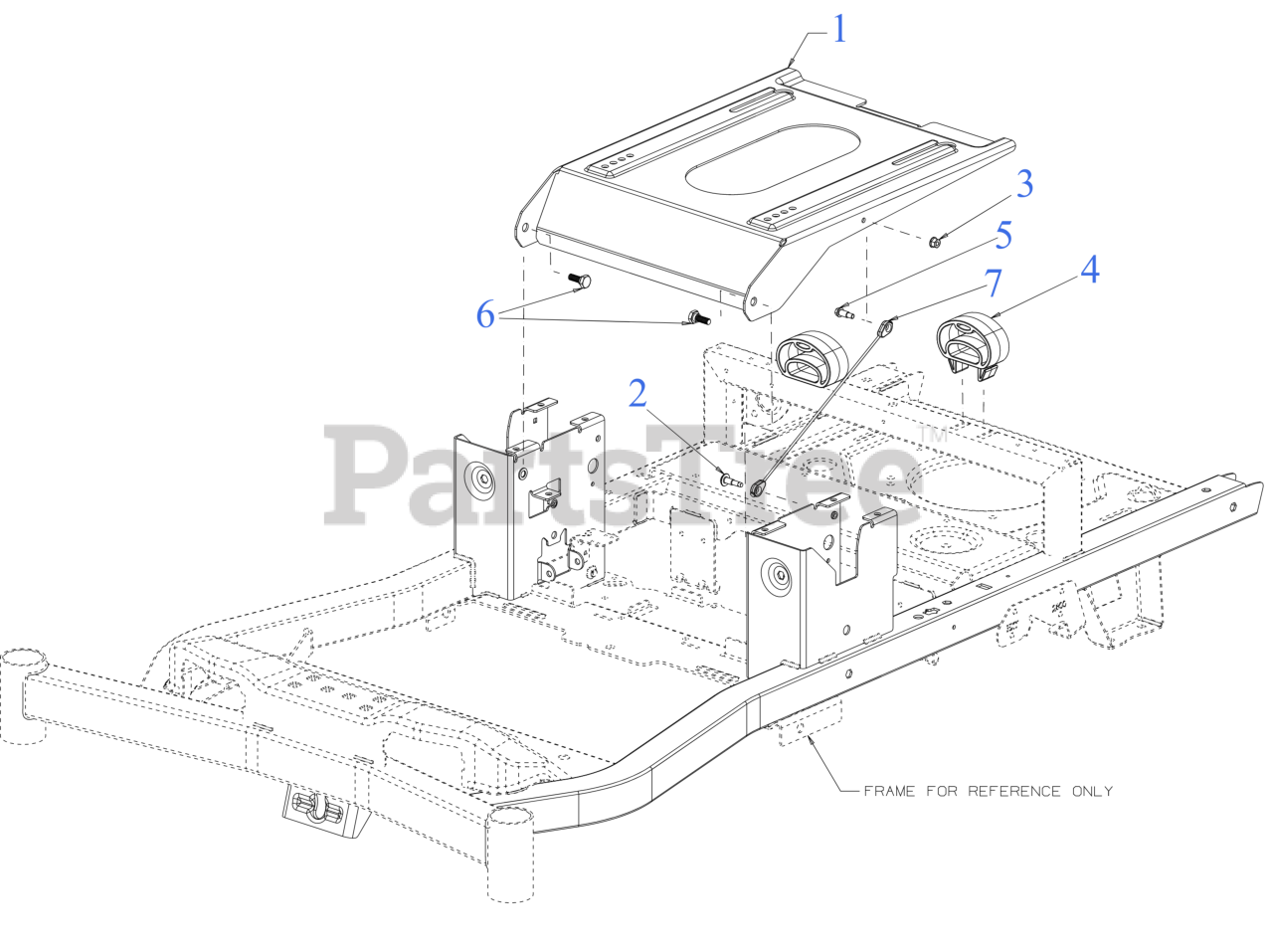

Seat Adjustment Parts Diagram

  • Title
1

Troy-Bilt 703-12521B

SEAT BASE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$61.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-06563

BOLT 1/4-20

$2.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 912-3027

LOCK NUT 1/4

Note: 68-102 IN. LBS

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 735-05499A

POLYMER SEAT SPRING

$15.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 738-04395

SHOULDER SCREW

$4.49

$

In Stock, only 1 left!

0

6

Troy-Bilt 738-05190B

SHOULDER SCREW .44DIAx.18 5/16-18

Note: 98-144 IN. LBS

$5.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 746-06231

SEAT BASE CABLE

$15.99

$

Usually ships in 3-6 days

0
