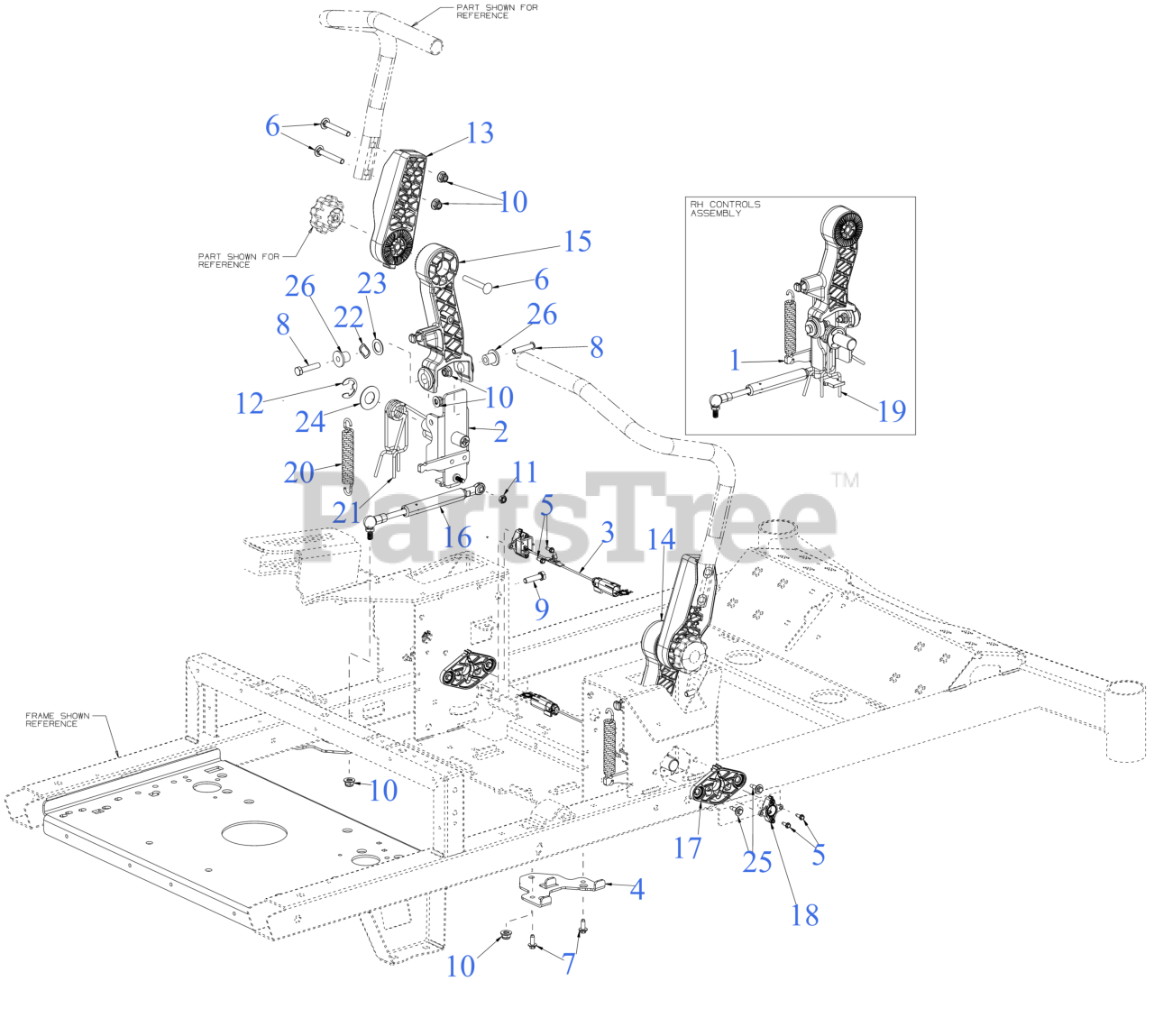

Z 42 E XP (34ABB2CS766) - Troy-Bilt Mustang 42" Zero-Turn Mower, Electric (2023) Controls Parts Diagram

Mustang 42" Zero-Turn Mower, Electric

Controls Parts Diagram

  • Title
1

Troy-Bilt 603Z08748

CONTROL BRACKET (RH)

$53.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603Z08749

CONTROL BRACKET (LH)

$53.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 625P09057

THROTTLE SENSOR

$216.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 924-04153

ROTARY SENSOR MAGNET

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 729-0359

HARNESS CLIP

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 703-28322

DAMPNER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$24.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-04326

SCREW #8-16 x .50

Note: 20-25 IN-LBS

$3.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 710-0572

BOLT 5/16-18 x 2.50 GR1

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-06133

SCREW M6-1 x .625

Note: 60-70 IN-LBS

$3.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-08694

SCREW 5/16-18 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

Note: 120-150 IN-LBS

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-05106

HEX NUT 1/4-20

Note: 70-80 IN-LBS

$3.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 716-0136

RETAINING RING

$8.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 719-05893B

UPPER ADJUSTMENT HANDLE

$27.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 719-05614A

LAPBAR ACTUATOR (RH)

$48.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 719-05752A

LAPBAR ACTUATOR (LH)

$48.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 727-05853

DAMPER- .71 OD X 9.48 LG ERZT

$82.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731P27324A

CONTROL HOUSING

$7.49

$

Usually ships in 3-6 days

0

18

Mount

Note: Part of Throttle Sensor

$

$

Not available

19

Troy-Bilt 732-08352

TORSION SPRING 0.860 ID (RH)

$9.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 732-08360

EXTENSION SPRING .700 ODx4.800

$6.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 732-08385

TORSION SPRING 0.860 ID (LH)

$9.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 736-0174

WAVE WASHER .660 ID X.88 OD x .010

$6.99

$

In Stock, Qty 11

0

23

Troy-Bilt 936-0336

FLAT WASHER

$4.49

$

In Stock, Qty 7

0

24

Troy-Bilt 736-0351

THRUST WASHER

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 738-07294

SHOULDER SPACER .32 x .625 x .66

$2.49

$

Usually ships in 3-6 days

0
