41" Mower Deck Assembly

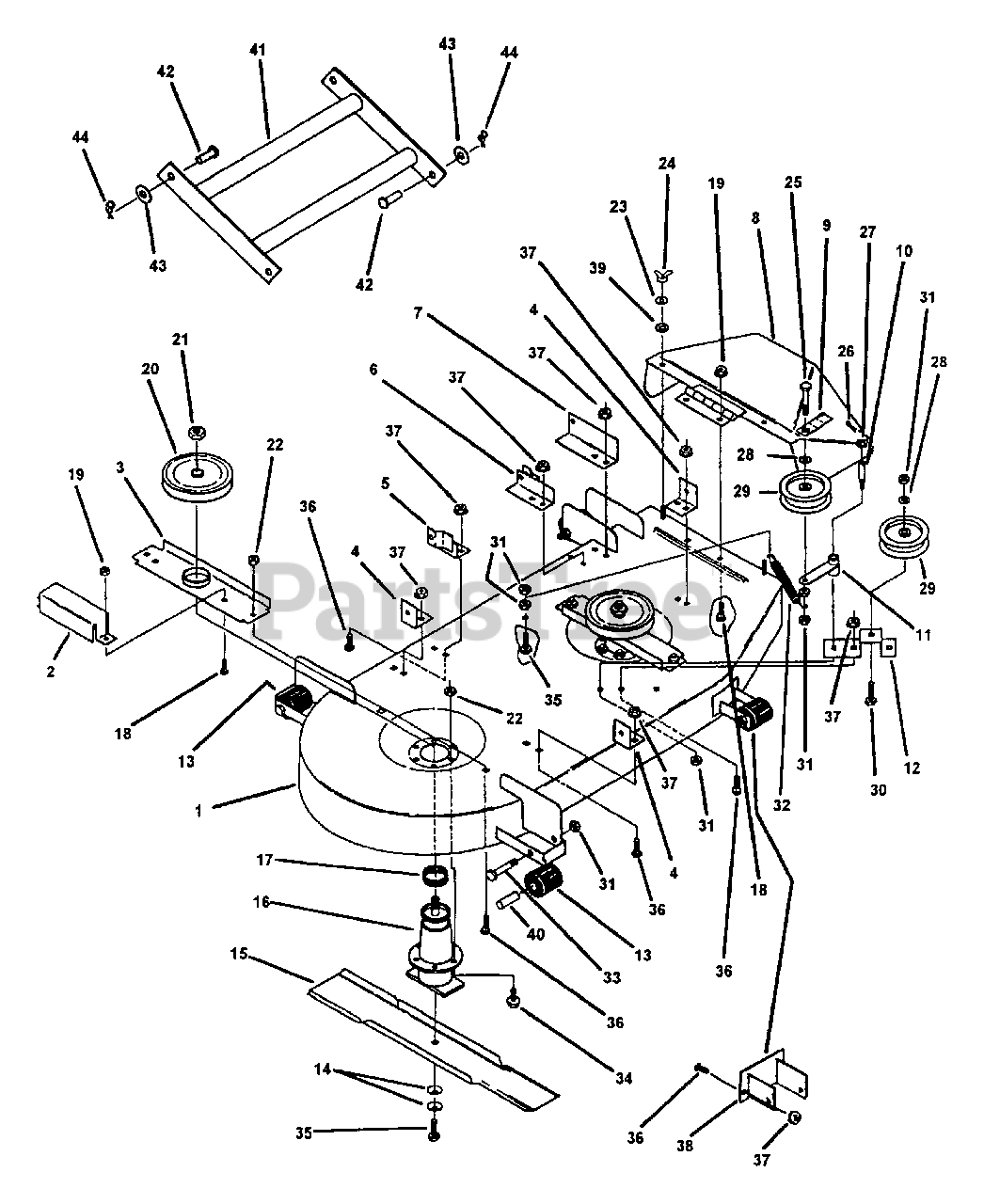

41" Deck Assembly Parts Diagram

  • Title

1

Snapper 7051916

41" DECK SHELL

Note: Was 41582 (Some holes may require drilling)

$

$

Not available

2

Snapper 7038080

GUARD, PULLEY
(Superseded to 7038080YP)

$25.99

$

Usually ships in 2-12 days

0

3

Snapper 7038078

BRACE, SPINDLE
(Superseded to 7038078YP)

$26.99

$

In Stock, only 1 left!

0

4

Snapper 7079924

ANGLE, DECK HANGER
(Superseded to 7079924YP)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper 7079923

PIVOT MOUNT WELDMENT L.H.

$

$

Currently unavailable

6

Snapper 7079922

PIVOT MOUNT WELDMENT R.H.

$

$

Currently unavailable

7

Snapper 7079925

ANGLE, DECK HANGER

$

$

Currently unavailable

8

Snapper 7051401

CHUTE ASSEMBLY
(Superseded to 7051401YP)

$159.99

$

Usually ships in 2-12 days

0

9

Snapper 7079920

BELT GUIDE

$

$

Currently unavailable

10

Snapper 7035816

STUD, IDLER
(Superseded to 7035816YP)

Note: Was 14408

$100.99

$

Usually ships in 2-12 days

0

11

Snapper 7051399

IDLER ARM ASSEMBLY
(Superseded to 7051399YP)

$104.99

$

Usually ships in 2-12 days

0

12

Snapper 7038079

BRACKET, IDLER
(Superseded to 7038079YP)

$17.99

$

Usually ships in 2-12 days

0

13

Snapper 7019190

ANTI-SCALP WHEEL
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper 7012063

WASHER, CONE
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

15

Snapper 7019795

BLADE, 21"
(Superseded to 7019795BZYP)

$28.99

$

In Stock, Qty 20+

0

16

Snapper 7051473

SPINDLE ASSEMBLY
(Superseded to 7051473YP)

Note: Was 59622 (See "41" Deck Spindle Assembly" illustration and Parts List for breakdown).

$162.99

$

Usually ships in 2-12 days

0

17

Snapper 7012670

TOLERANCE RING, 3/4
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

18

Snapper 7090799

BOLT, 5/16-18 X 5/8" CARRIAGE
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7091601

NUT, 5/16-18, FLANGED LOCK
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

20

Snapper 7014397

PULLEY, 5-3/4" O.D.
(Superseded to 7014397YP)

$52.99

$

Usually ships in 2-12 days

0

21

Snapper 7090820

NUT, 3/4-16, JAM
(Superseded to 7090820YP)

$5.99

$

In Stock, only 1 left!

0

22

Snapper 7091619

NUT, 3/8-16, FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

23

Snapper 7090187

LOCKWASHER, 5/16" SPLIT SPRING
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7090375

WING NUT, 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

25

Snapper 7090455

BOLT, 3/8-24 X 2-1 /4"

$

$

Currently unavailable

26

Snapper 7091598

COTTER PIN
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

27

Snapper 7090183

WASHER, 5/8 SAE
(Superseded to 7090183YP)

$4.49

$

In Stock, only 2 left!

0

28

Snapper 7079921

SEAL WASHER

$

$

Currently unavailable

29

Snapper 7023966

PULLEY
(Superseded to 7023966YP)

Note: Was 18585

$48.99

$

Usually ships in 2-12 days

0

30

Snapper 7090483

BOLT, 3/8-24 X 1-3/4"
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

31

Snapper 7090289

NUT, 3/8-24, CENTER LOCK
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

32

Snapper 7014513

SPRING
(Superseded to 7014513YP)

$10.99

$

Usually ships in 2-12 days

0

33

Snapper 7091532

BOLT, 3/8-16 X 3-3/4"
(Superseded to 703876)

Note: Was 90859

$6.99

$

In Stock, Qty 10

0

34

Snapper 7091588

BOLT, 3/8-16 X 3/4", FLANGE LOCK
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

35

Snapper 7090824

BOLT, 3/8-24 X 1-1/4"
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

36

Snapper 7091547

BOLT, 3/8-16 X 3/4", CARRIAGE
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7091619

NUT, 3/8-16, FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

38

Snapper 7047913

BRACKET, ROLLER

$

$

Currently unavailable

39

Snapper 7011791

RETAINER, 5/16" BOLT
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7015272

BUSHING, ROLLER
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

41

Snapper 7079655

DRAG BAR WELDMENT
(Superseded to 7079655YP)

$94.99

$

Usually ships in 2-12 days

0

42

Snapper 7079831

CLEVIS PIN, 5/16 X 1-1/4" LONG
(Superseded to 7079831YP)

Note: Was 79284

$3.99

$

Usually ships in 2-12 days

0

43

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

44

Snapper 7091593

COTTER RUE RING, 5/16-3/8 PIN
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 14

0

Snapper 7013010

DECAL, "BLOODY STUMP"
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

Snapper 7014852

DECAL, "CAUTION"
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

Snapper 7014852

DECAL, "CAUTION"
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, Qty 5

0

Snapper 7062045

DECAL, "MODEL #Z4102M"

$

$

Currently unavailable

Snapper 7079780

ENGINE TO DECK BELT, BP-106
(Superseded to 7079780YP)

$36.99

$

Usually ships in 2-12 days

0
