Z 254 - Husqvarna 54" Zero-Turn Mower MOWER LIFT / DECK LIFT Parts Diagram

54" Zero-Turn Mower

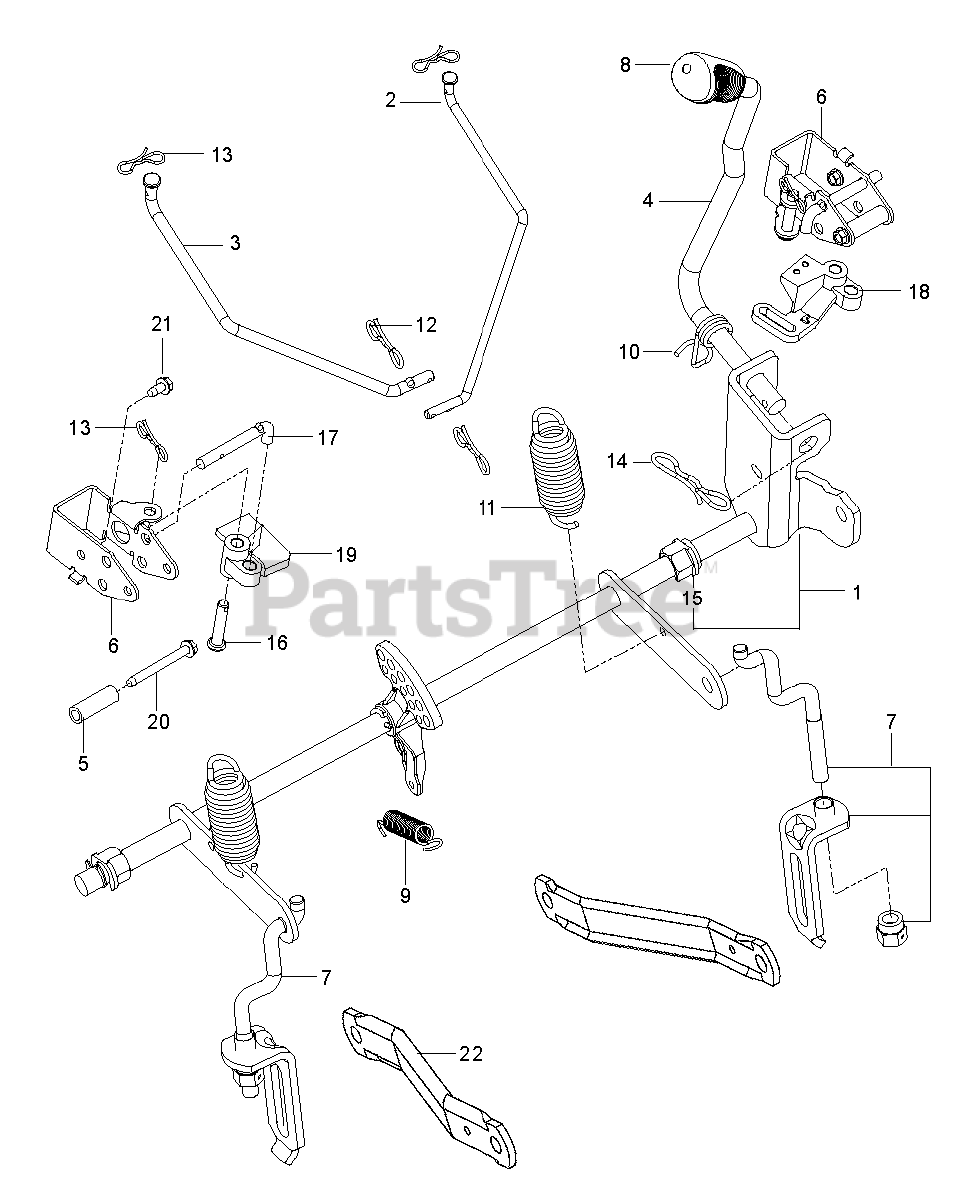

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

5

Husqvarna 580486101

SPACER.334.ID.5.OD.1.5.L

$

$

Not available

13

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

Note: For all EXCEPT 96766550100, 967045201-01, 967844601-00, 970467601-00

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 510184901

PLASTIC NUT

$6.49

$

In Stock, only 3 left!

0

12

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

Note: For all EXCEPT 967324303-00, 967324301-00, 96766550100, 967045201-01, 967844601-00, 970467601-00

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 586457401

BELLCRANK.LH

$6.99

$

In Stock, only 3 left!

0

9

Husqvarna 586867601

RETURN.BRAKE.PARK.AUTO

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 586457101

LINK.BRAKE.PARK.UPPER.LH

$10.99

$

In Stock, only 1 left!

0

12

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

Note: For 967324303-00, 967324301-00, 96766550100, 967045201-01, 967844601-00, 970467601-00

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 586457501

BELLCRANK.RH

Note: For 96766550100, 967045201-01, 967844601-00, 970467601-00

$6.99

$

In Stock, only 3 left!

0

7

Husqvarna 587623001

LINK.ASM.RZ.LIFT.SERVICE

$12.99

$

In Stock, only 3 left!

0

14

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

Note: For 96766550100, 967045201-01, 967844601-00, 970467601-00

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539118762

SPRING

Note: For all EXCEPT 967324303-00, 967324301-00

$

$

Not available

17

Husqvarna 585682001

ROD.PUSH.BRAKE

Note: For all EXCEPT 96766550100, 967045201-01, 967844601-00, 970467601-00

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

Note: For 96766550100, 967045201-01, 967844601-00, 970467601-00

$3.99

$

In Stock, Qty 11

0

19

Husqvarna 586457501

BELLCRANK.RH

$6.99

$

In Stock, only 3 left!

0

20

Husqvarna 586561301

SCREW THD;ROLL;1/4-20 X 2.25

$14.99

$

In Stock, Qty 5

0

14

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

Note: For all EXCEPT 96766550100, 967045201-01, 967844601-00, 970467601-00

$3.99

$

In Stock, Qty 11

0

8

Husqvarna 532445060

GRIP.HANDLE.LIFT.PVC.428
(Superseded to 532411555)

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 587622901

LIFT.LEVER.ASM.RZ.SERVICE

$13.99

$

Usually ships in 3-10 days

0

1

Husqvarna 587623101

SHAFT.ASM.RZ.DECK.LIFT.SRV

$51.99

$

In Stock, Qty 8

0

6

Husqvarna 585682102

BRACKET.BELLCRANK.PBRAKE X431

$7.99

$

In Stock, only 1 left!

0

22

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

Note: For 967324303-00, 967324101-00, 967324301-00, 967271701-00, 967638501-00, 967324203-00

$14.99

$

In Stock, Qty 5

0

16

Husqvarna 585701401

PIN.5.16X1.5

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 586457201

LINK.BRAKE.PARK.UPPER.RH

$10.99

$

In Stock, only 1 left!

0
