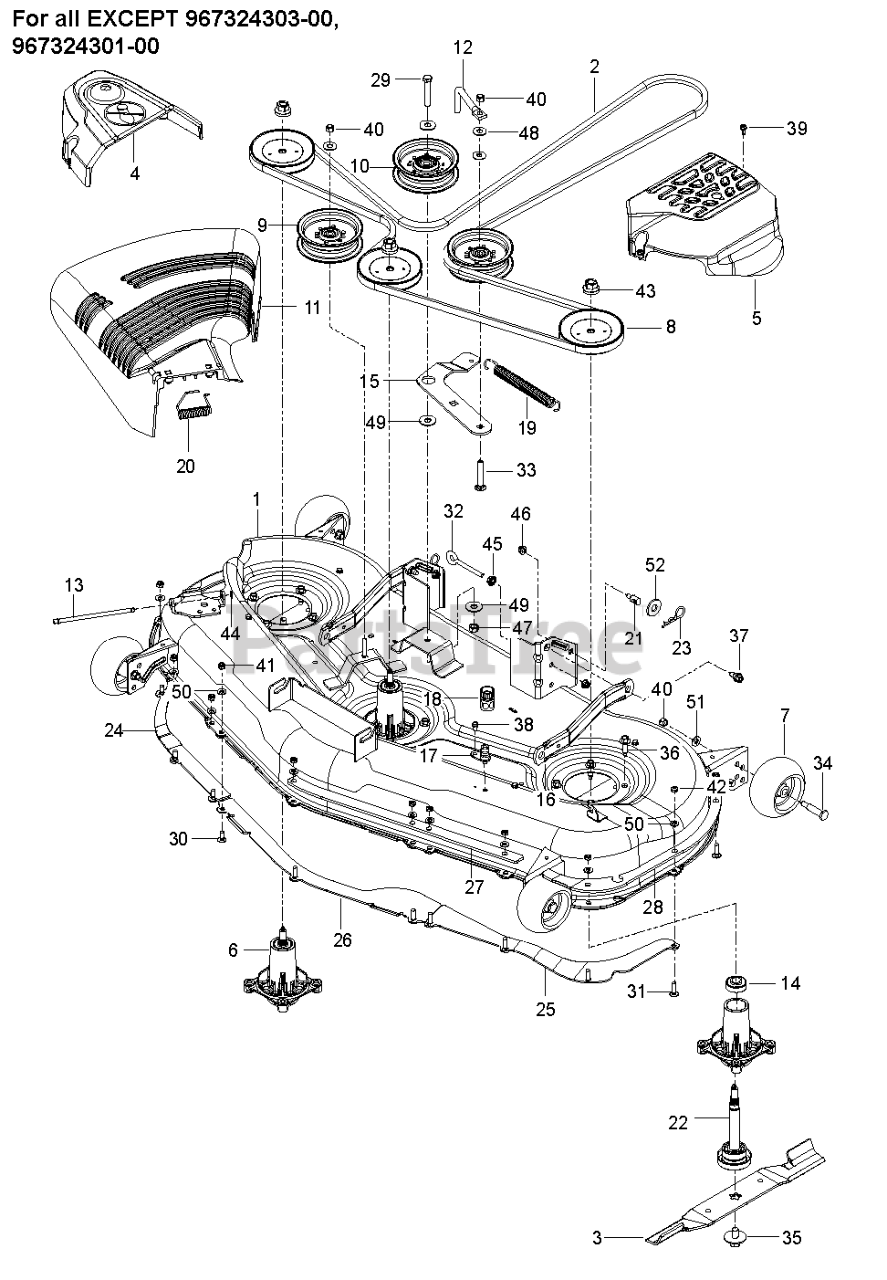

Z 254 - Husqvarna 54" Zero-Turn Mower MOWER DECK / CUTTING DECK 2 Parts Diagram

54" Zero-Turn Mower

MOWER DECK / CUTTING DECK 2 Parts Diagram

  • Title

40

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

Note: For 96766550100, 967045201-01, 967844601-00, 970467601-00

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

32

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

27

Husqvarna 585322605

PLATE.REIN.FRONT.BOLT54"X431

$20.99

$

In Stock, only 1 left!

0

18

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 7

0

15

Husqvarna 510220001

ARM IDLER RAW
(Superseded to 510220002)

$

$

Not available

43

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

44

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

Note: For 96766550100, 967045201-01, 967844601-00, 970467601-00

$14.99

$

In Stock, Qty 5

0

23

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532187344

BAFFLE.LEFT.54"

$

$

Not available

3

Husqvarna 532187256

BLADE.BAGGING.54"
(Superseded to 594892901)

$22.99

$

In Stock, Qty 20+

0

20

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

7

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532187297

COVER.MANDREL.LH.DECK.54"

$37.99

$

In Stock, only 1 left!

0

39

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

Note: For 96766550100, 967045201-01, 967844601-00, 970467601-00

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

41

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

34

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

47

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

48

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532187607

BAFFLE CENTER 54" MOWER

$22.99

$

In Stock, only 2 left!

0

33

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

49

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 592872602

ARM ARM.IDLER.54". RZ BLACK MS

Note: fits 967844601-00, 970467601-00

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532173436

PULLEY MANDREL

$17.99

$

In Stock, Qty 20+

0

14

Husqvarna 532110485

BEARING

$13.99

$

In Stock, only 4 left!

0

2

Husqvarna 539114557

BELT.DECK.52".54"

$91.99

$

In Stock, only 1 left!

0

17

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

51

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 10

0

40

Husqvarna 873800600

NUT
(Superseded to 873680600)

Note: For all EXCEPT 96766550100, 967045201-01, 967844601-00, 970467601-00

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539120920

SPRING, DECK BELT

$

$

Not available

42

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

Note: For all EXCEPT 96766550100, 967045201-01, 967844601-00, 970467601-00

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 17

0

36

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532188187

COVER.MANDREL.RH.DECK.54"

$37.99

$

In Stock, only 1 left!

0

12

Husqvarna 522629701

BELT KEEPER 5"

$

$

Not available

28

Husqvarna 585322805

PLATE.REIN.SIDE.BOLT.54"X431

$

$

Not available

35

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna 874780740

BOLT.HEX.7/16-14
(Superseded to 596435201)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

10

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 20+

0

24

Husqvarna 532187342

BAFFLE.RIGHT.54"

$12.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819212113

WASHER
(Superseded to 583609901)

$

$

Not available

6

Husqvarna 587125401

MANDREL.W/SPCR.BRG.TALL.NONREV
(Superseded to 587820301)

$56.99

$

In Stock, Qty 16

0

11

Husqvarna 532187257

DEFLECTOR.BLACK.54"

$80.99

$

In Stock, Qty 9

0

1

Husqvarna 583909301

DECK SVC W/DECALS 54" ORG

$626.99

$

Usually ships in 3-10 days

0
