Z 254 - Husqvarna 54" Zero-Turn Mower ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

54" Zero-Turn Mower

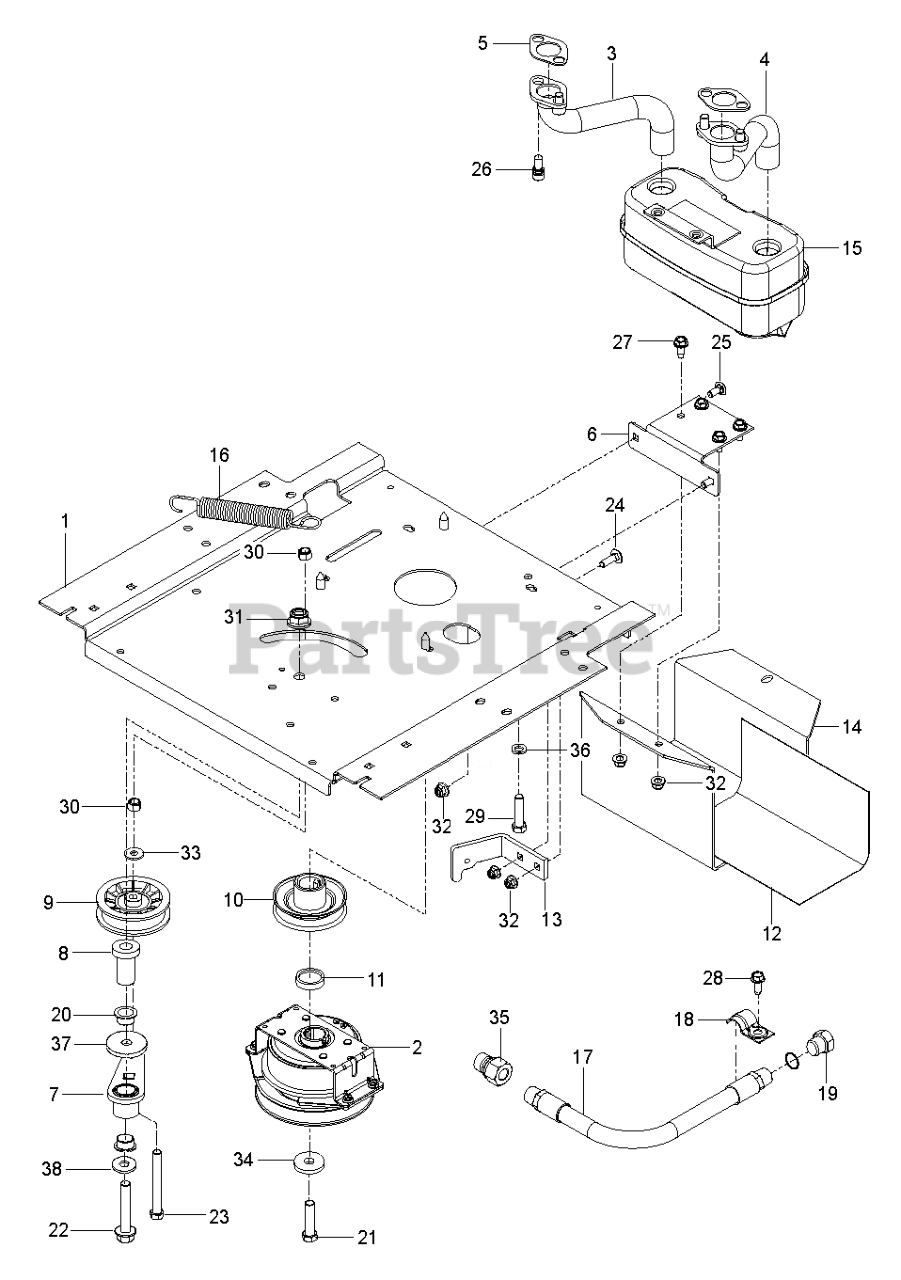

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

21

Husqvarna 581332803

CLUTCH BOLT7/16-20X2.5 GR524HR
(Superseded to 581332806)

Note: For all EXCEPT 967324303-00, 967045201-00, 967271701-00, 967638501-00, 96766550100

$8.99

$

In Stock, Qty 10

0

000000000

Note: For 967045201-01, Engine, Kawasaki FR651V 21.5 HP, For replacement parts, see a Kawasaki dealer

$

$

Not available

28

Husqvarna 817490410

SCR 1/4-20X5/8 HEX SELF TAP ZD

Note: For all EXCEPT 967324101-00

$

$

Not available

30

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

Note: For all EXCEPT 967324101-00

$3.99

$

In Stock, Qty 20+

0

Husqvarna 522598601

KAWASAKI PIGTAIL

Note: For 967324303-00, 967045201-00, 967271701-00, 967638501-00, 96766550100

$20.99

$

Usually ships in 3-10 days

0

24

Husqvarna 872140508

BOLT

Note: For 967324101-00, 967045201-01, 967324203-00

$2.99

$

Usually ships in 3-10 days

0

Husqvarna 589543901

KIT.ARM.IDLER.RZ

Note: For 967324303-00, 967045201-00, 967271701-00, 967638501-00, 96766550100

$37.99

$

Usually ships in 3-10 days

0

20

Husqvarna 501603701

BEARING.FLANGED.PLASTIC.3/4ID

$6.99

$

In Stock, Qty 9

0

3

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

Note: For 967324101-00

$44.99

$

In Stock, only 1 left!

0

24

Husqvarna 539990208

RHSNB 5/16C X 1

Note: For all EXCEPT 967324101-00, 967045201-01

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

Note: For 967324203-00

$44.99

$

In Stock, only 1 left!

0

9

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

Usually ships in 3-10 days

0

31

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

Note: For 967324203-00

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

Note: For 967324203-00

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 874780852

HCS 1/2-13 X 3-1/4 GD 5 ZD

Note: For 967324203-00

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

Note: For all EXCEPT 967324101-00

$31.99

$

In Stock, only 1 left!

0

1

Husqvarna 588017102

PLATE.ENGINE.PNT.23"FRAME.EDIP
(Superseded to 598736102)

$74.99

$

Usually ships in 3-10 days

0

13

Husqvarna 587633302

CLUTCH.STOP.OGURA LCC.BLACK

$9.49

$

In Stock, only 1 left!

0

4

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

Note: For 967324302-00, 967324301-00, 967844601-00, 970467601-00

$22.99

$

In Stock, only 1 left!

0

10

Husqvarna 587537401

PULLEY.ENGINE

$26.99

$

In Stock, only 3 left!

0

34

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

36

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

Note: For all EXCEPT 967324302-00, 967324101-00, 967324301-00, 967844601-00, 970467601-00

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

Note: For 967324101-00, 967045201-01

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

Note: For 967324101-00

$27.99

$

In Stock, only 1 left!

0

5

Husqvarna 532165391

GASKET.MUFFLER

Note: For 967324101-00, 967324203-00

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 585807101

PLUG OIL DRAIN

Note: For all EXCEPT 967324101-00

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

Note: For 967324302-00, 967324301-00, 967844601-00, 970467601-00

$3.99

$

In Stock, Qty 13

0

000000000

Note: For 967324101-00, Engine, Briggs & Stratton 44T877 24 HP. For engine replacement parts, see a B&S dealer.

$

$

Not available

26

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

Note: For 967324101-00

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539101231

IDLER SPINDLE

Note: For 967324203-00

$13.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 11

0

11

Husqvarna 587660101

SPACER.SPACER.625 W/OGURA.LCC

$6.99

$

Usually ships in 3-10 days

0

000000000

Note: For 967324302-00, 967324301-00, 967844601-00, 970467601-00, Engine, Kohler KT745 26 HP. For engine replacement parts, see a Kohler dealer.

$

$

Not available

25

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

Note: For 967324101-00, 967045201-01, 967324203-00

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 581332804

CLUTCH BOLT7/16-20X3.5 GR524HR

Note: For 967324303-00, 967045201-00, 967271701-00, 967638501-00, 96766550100

$7.99

$

In Stock, only 2 left!

0

23

Husqvarna 874520656

HCS 3/8-16X3-1/2 TAPBLT GR5 ZD

$

$

Not available

25

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

Note: For all EXCEPT 967324101-00, 967045201-01

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: For all EXCEPT 967324101-00

$6.99

$

In Stock, Qty 20+

0

5

Husqvarna 586839901

GASKET
(Superseded to 532186054)

Note: For 967324302-00, 967324301-00, 967844601-00, 970467601-00

$

$

Not available

38

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

Note: For 967324203-00

$

$

Not available

33

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

Note: For all EXCEPT 967324203-00

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: For all EXCEPT 967324302-00, 967324301-00, 967844601-00, 970467601-00, 967324101-00

$37.99

$

In Stock, only 1 left!

0

3

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

Note: For 967324302-00, 967324301-00, 967844601-00, 970467601-00

$20.99

$

In Stock, only 2 left!

0

31

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

Note: For all EXCEPT 967324101-00, 967324203-00

$4.99

$

In Stock, Qty 7

0

14

Husqvarna 587451202

GUARD.MUFFLER.WO.TOW.HITCHX431

$51.99

$

Usually ships in 3-10 days

0

30

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

37

Husqvarna 539112670

HEAVY WASHER

Note: For 967324203-00

$4.99

$

In Stock, Qty 10

0

7

Husqvarna 532448145

ARM IDLER
(Superseded to 583593901)

$13.99

$

In Stock, Qty 8

0

8

Husqvarna 582538901

SPINDLE.IDLER
(Superseded to 582538902)

Note: For all EXCEPT 967324203-00

$5.99

$

In Stock, Qty 6

0

3

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: For all EXCEPT 967324302-00, 967324301-00, 967844601-00, 970467601-00, 967324101-00

$37.99

$

In Stock, only 1 left!

0

2

Husqvarna 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$278.99

$

In Stock, only 1 left!

0

29

Husqvarna 817120616

SCREW 3/8-16X1

Note: For 967324302-00, 967324301-00, 967844601-00, 970467601-00, 967324203-00

$5.99

$

In Stock, Qty 19

0

12

Husqvarna 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

35

Husqvarna 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

Note: For all EXCEPT 967324302-00, 967324101-00, 967324301-00, 967844601-00

$

$

Not available

31

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: For 967324101-00

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 582539501

BOLT.FLANGE.1/2-13 X 2.75.GRD5

Note: For all EXCEPT 967324203-00

$

$

Not available

18

Husqvarna 539101363

CLAMP

Note: For all EXCEPT 967324101-00

$3.99

$

In Stock, only 1 left!

0

000000000

Note: For 967324303-00, 967045201-00, 967271701-00, 967638501-00, 96766550100, Engine, Kawasaki FX691V 23 HP. For engine replacement parts, see a Kawasaki dealer.

$

$

Not available

15

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 2 left!

0

29

Husqvarna 874780620

BOLT
(Superseded to 874760620)

Note: For all EXCEPT 967324302-00, 967324301-00, 967844601-00, 970467601-00, 967324101-00, 967045201-01

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

Note: For 967324203-00

$27.99

$

In Stock, only 1 left!

0

32

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

Note: For 967324101-00

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 581886702

BRACKET MUFFLER MS431BLK

$34.99

$

In Stock, only 1 left!

0

27

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0
