Z 254 F - Husqvarna 54" Zero-Turn Mower STEERING Parts Diagram

54" Zero-Turn Mower

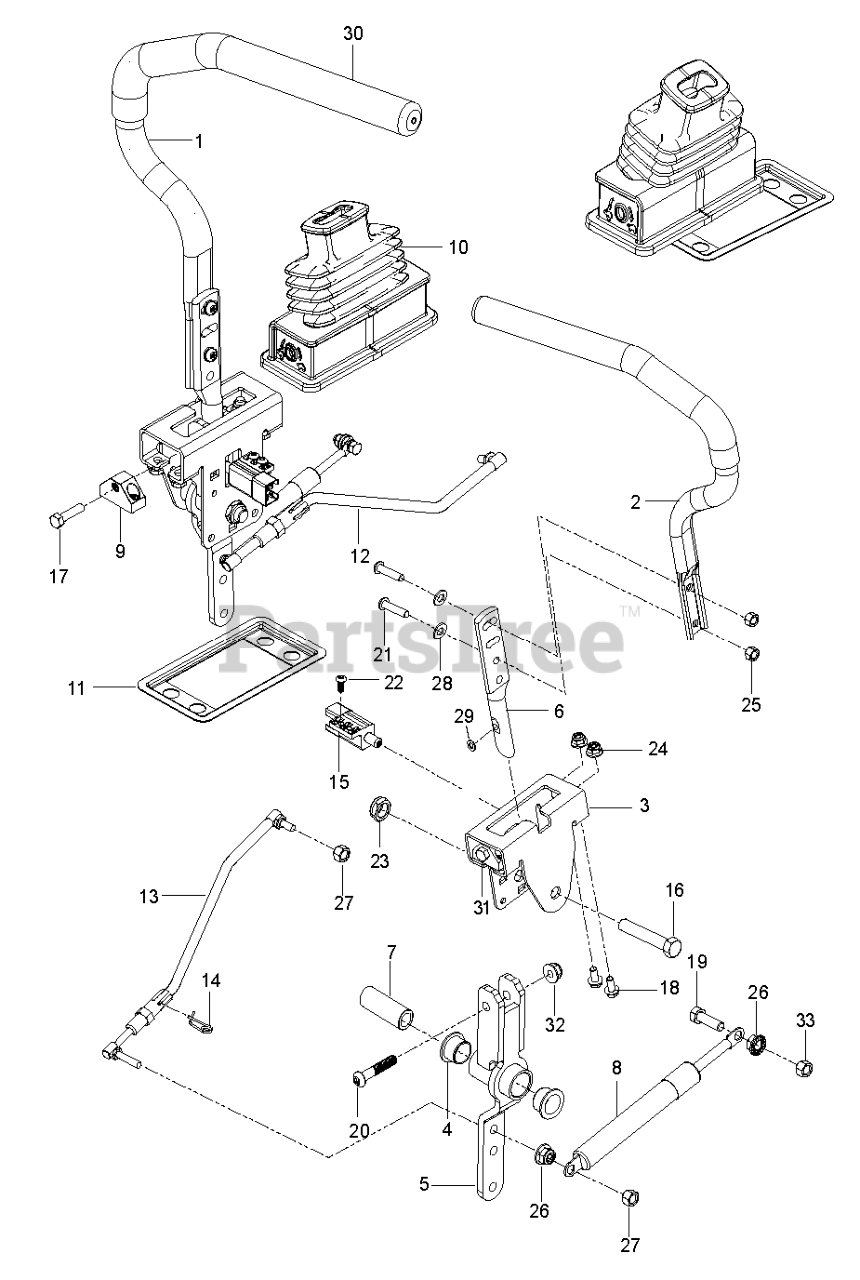

STEERING Parts Diagram

  • Title

19

Husqvarna 539990209

HCS 5/16C X 1

Note: For all EXCEPT 970459001-00, 970459001-01

$1.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587601702

CONTROL.LEVER.HANDLE

Note: For all EXCEPT 970459001-00, 970459001-01

$

$

Not available

28

Husqvarna 586309101

WASHER.11/32X11/16 BLACK
(Superseded to 819111116)

Note: For 967680901-00, 967681001-00, 967844901-00, 967681002-00

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 596039201

GSPW Hardware

Note: For 970459001-00, 970459001-01

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 592858702

Bolts

Note: For 970459001-00, 970459001-01

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 596580801

Bolts

Note: For 970459001-00, 970459001-01

$3.99

$

In Stock, only 2 left!

0

13

Husqvarna 588605001

ROD.ASM.LH.ADJUSTABLE

Note: For all EXCEPT 970459001-00, 970459001-01

$

$

Not available

10

Husqvarna 585831601

BOOT.STEERING.LEVER

$22.99

$

Usually ships in 3-10 days

0

24

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: For 970459001-00, 970459001-01

$6.99

$

In Stock, Qty 20+

0

33

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: For 967680901-00, 967681001-00, 967844901-00, 967681002-00

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

Note: For 970459001-00, 970459001-01

$4.99

$

In Stock, Qty 6

0

32

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

Note: For 967680901-00, 967681001-00, 967844901-00, 967681002-00

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 585986101

SCREW.SHAKEPROOF.1.25.BLACK

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 581437501

BLOCK TRACKING CONTROL ZTR

Note: For all EXCEPT 970459001-00, 970459001-01

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 590090804

TUBE.LEVER.CONTROL.ZTR.LT.428

Note: W/ GRIP

$51.99

$

In Stock, Qty 20+

0

5

Husqvarna 576140301

LEVER CONTROL PIVOT

$24.99

$

In Stock, only 4 left!

0

11

Husqvarna 585488202

CONTROL.BOOT.FLANGE.X431

$9.49

$

In Stock, only 3 left!

0

25

Husqvarna 585986001

NYLOCK.NUT.5/16-18 BLACK

Note: For all EXCEPT 970459001-00, 970459001-01

$

$

Not available

Husqvarna 598851704

TUBE RZ CONTROL LEVER LEFT MS

Note: Fits 967954001-01, 970459001-01

$51.99

$

In Stock, Qty 20+

0

28

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

Note: For 970459001-00, 970459001-01

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 596583702

Nuts

Note: For 970459001-00, 970459001-01

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 874490512

HHFS 5/16-18 X 3/4

Note: For all EXCEPT 970459001-00, 970459001-01

$

$

Not available

25

Husqvarna 596583702

Nuts

Note: For 970459001-00, 970459001-01

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 596434301

Bolts

Note: For 970459001-00, 970459001-01

$3.99

$

In Stock, only 1 left!

0

23

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

29

Husqvarna 587614201

WASHER.11/32ID.11/16OD.116THIC

Note: For all EXCEPT 96784490101, 96795400100, 967954001-01, 96784490102

$3.49

$

In Stock, only 2 left!

0

27

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

Note: For all EXCEPT 970459001-00, 970459001-01

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD

Note: For all EXCEPT 970459001-00, 970459001-01

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 588604901

ROD.ASM.RH.ADJUSTABLE

Note: For all EXCEPT 970459001-00, 970459001-01

$

$

Not available

14

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

6

Husqvarna 587601704

Controls

Note: For 970459001-00, 970459001-01

$13.99

$

In Stock, only 2 left!

0

24

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: For all EXCEPT 970459001-00, 970459001-01

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 586936001

SCREW.BUTTONHD.10-24X1/2.(2 2)

Note: For 967954002-00, 96784490101, 96795400100, 96795400300, 967954001-01, 96784490102

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: For 967954002-00, 96784490101, 96795400100, 96795400300, 967954001-01, 96784490102

$6.99

$

In Stock, Qty 20+

0

12

Husqvarna 588604902

Controls

Note: For 970459001-00, 970459001-01

$26.99

$

In Stock, only 3 left!

0

20

Husqvarna 587885301

SCREW.CAP.SOCKET.6PT.5/16-18

$4.99

$

In Stock, only 4 left!

0

31

Husqvarna 587885301

SCREW.CAP.SOCKET.6PT.5/16-18

Note: For 967954002-00, 96795400300

$4.99

$

In Stock, only 4 left!

0

32

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: For 970459001-00, 970459001-01

$6.99

$

In Stock, Qty 20+

0

31

Husqvarna 585985901

BUTTONHEAD.5/16-18X1.125.BLACK

Note: For 967680901-00, 967681001-00, 967844901-00, 967681002-00

$3.49

$

In Stock, only 4 left!

0

15

Husqvarna 587601501

SWITCH.INTLK.RZ.RFRSH.BUTTON

Note: For all EXCEPT 967680901-00, 967681001-00, 967844901-00, 967681002-00

$13.99

$

In Stock, only 2 left!

0

1

Husqvarna 598851703

TUBE RZ CONTROL LEVER RIGHT MS

Note: For 967954001-01, 970459001-01

$51.99

$

In Stock, only 1 left!

0

13

Husqvarna 588605002

Rods

Note: For 970459001-00, 970459001-01

$26.99

$

In Stock, only 1 left!

0

21

Husqvarna 585985901

BUTTONHEAD.5/16-18X1.125.BLACK

$3.49

$

In Stock, only 4 left!

0

9

Husqvarna 581437502

Blocks

Note: For 970459001-00, 970459001-01

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 5

0

8

Husqvarna 539102720

DAMPENER

$66.99

$

In Stock, only 3 left!

0

26

Husqvarna 539990585

NUT 5/16C WHIZ

Note: For all EXCEPT 970459001-00, 970459001-01

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 819111116

WASHER
(Superseded to 596204101)

Note: For 967954002-00, 96784490101, 96795400100, 96795400300, 967954001-01, 96784490102

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 525392902

PURCHASE THE COMPLETE LEVER

Note: For 967680901-00, 967681001-00, 967844901-00, 967681002-00

$

$

Not available

1

Husqvarna 590090803

TUBE.LEVER.CONTROL.ZTR.RT.428
(Superseded to 598851703)

Note: W/ GRIP

$51.99

$

In Stock, only 1 left!

0

3

Husqvarna 585124705

BRACKET.CONTROLS.ZTR.X431

$17.99

$

Usually ships in 3-10 days

0

7

Husqvarna 584927201

SPACER.PIVOT.CONTROL

$5.99

$

In Stock, only 4 left!

0
