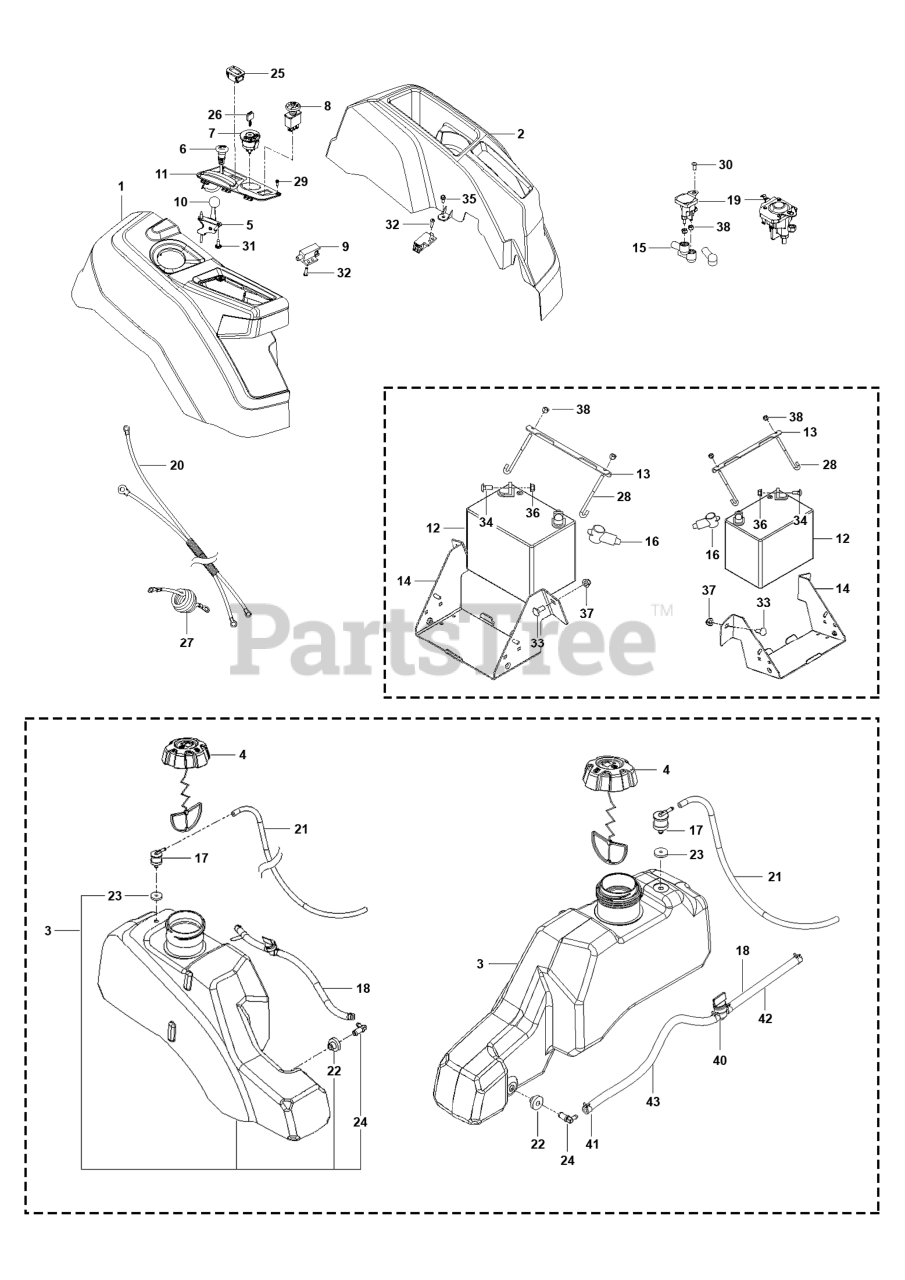

Z 254 F - Husqvarna 54" Zero-Turn Mower IGNITION SYSTEM Parts Diagram

54" Zero-Turn Mower

IGNITION SYSTEM Parts Diagram

  • Title

14

Husqvarna 582609602

BOX.PNT.BATTERY.RZ.EDIP

$37.99

$

Usually ships in 3-10 days

0

21

Husqvarna 587044531

NEEDS DESCRIPTION

Note: For 967844901-00

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532123487

HOSE CLAMP

Note: For all EXCEPT 967681001-00, 967681002-00, 970459001-00, 970459001-01

$7.49

$

In Stock, only 4 left!

0

16

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 587044529

HOSE 3/16" VAPOR LINE 29" LENG

Note: For 96784490101, 96784490102

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 585522703

CONTROL.PANEL.RZ.REFRESH.RH

Note: For 967680901-00

$11.99

$

In Stock, only 1 left!

0

23

Husqvarna 532437492

GROMMET.ROV.SENTEC
(Superseded to 584648201)

$4.99

$

In Stock, only 3 left!

0

40

Husqvarna 539916325

FUEL VALVE

Note: For all EXCEPT 967681001-00, 967681002-00, 970459001-00, 970459001-01

$47.99

$

In Stock, only 1 left!

0

19

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 20+

0

17

Husqvarna 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 8

0

5

Husqvarna 539112438

THROTTLE CABLE

Note: For all EXCEPT 967680901-00, 967844901-00, 96784490101, 96784490102

$

$

Not available

35

Husqvarna 539990071

HCS 1/4-20.

Note: For all EXCEPT 967954002-00, 96795400300

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

Note: For all EXCEPT 967681001-00, 967681002-00, 970459001-00, 970459001-01. NOT SHOWN.

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 589924702

TANK.ASM3"NECK.NOCAP.NOSHDRZ18
(Superseded to 589924705)

Note: Fits 2.75" filler neck. For 967844901-00, 967954002-00, 96784490101, 96795400100, 96795400300, 967954001-01, 96784490102

$157.99

$

Usually ships in 3-10 days

0

6

Husqvarna 586881502

CHOKE.PUSH-IN.STYLE.57"

Note: For 967844901-00, 96784490101, 96784490102

$24.99

$

In Stock, only 1 left!

0

18

Husqvarna 586123904

FUEL.HOSE.SHUT.OFF.ASM.10".3"

Note: For 967680901-00, 96784490101, 96784490102

$13.99

$

Usually ships in 3-10 days

0

Husqvarna 586337301

HARNESS.MAIN.RZ.WITHOUT.BRAKE

Note: NOT SHOWN

$93.99

$

In Stock, only 1 left!

0

42

Husqvarna 587044810

HOSE.1/4".LOW.PERM.FUEL.LN.10"

Note: For all EXCEPT 967681001-00, 967681002-00, 970459001-00, 970459001-01

$11.99

$

Usually ships in 3-10 days

0

1

Husqvarna 585522801

CONSOLE.ASSY.RZ.REFRESH.RH
(Superseded to 598602602)

$102.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

32

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

Note: For 967681001-00, 967681002-00, 970459001-00, 970459001-01

$4.99

$

In Stock, Qty 6

0

22

Husqvarna 532003645

BUSHING OUTLET T

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

7

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

30

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 588839401

HOOK.J.BATTERY

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

43

Husqvarna 587044818

HOSE 1/4" LOW PERMEATION FUEL

Note: For 967680901-00, 967844901-00, 967954002-00, 96795400100, 96795400300, 967954001-01

$10.99

$

In Stock, only 2 left!

0

Husqvarna 532109748

RELAY.ASSY.T

Note: NOT SHOWN

$30.99

$

In Stock, only 1 left!

0

26

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA
(Superseded to 532411935)

Note: For 967954002-00, 96784490101, 96795400100, 96795400300, 967954001-01, 96784490102

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532140401

KEY MLD GEN DELTA

Note: For 967680901-00, 967681001-00, 967844901-00, 967681002-00, 970459001-00, 970459001-01

$6.99

$

In Stock, Qty 9

0

11

Husqvarna 585522701

CONTROL.PANEL.RZ.REFRESH.RH

Note: For all EXCEPT 967680901-00

$13.99

$

In Stock, Qty 11

0

21

Husqvarna 587044550

HOSE.3/16".VAPOR.LINE.50"LGTH

Note: For all EXCEPT 967680901-00, 967844901-00, 96784490101, 96784490102

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 585974902

CABLE.THROTTLE.37"

Note: For 967680901-00

$66.99

$

In Stock, only 1 left!

0

6

Husqvarna 586881501

CHOKE.PUSH-IN.STYLE

Note: For 967681001-00, 967681002-00, 967954002-00, 96795400100, 96795400300, 970459001-00, 967954001-01, 970459001-01

$22.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB

Note: For 967844901-00, 96784490101, 96784490102

$

$

Not available

18

Husqvarna 586123906

FUEL.HOSE.SHUT.OFF.ASM.10".18"

Note: For 967844901-00, 967954002-00, 96795400100, 96795400300, 967954001-01

$20.99

$

Usually ships in 3-10 days

0

29

Husqvarna 545227101

SCREW 6-19X.437

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

Note: For all EXCEPT 967954002-00, 96795400100, 96795400300, 967954001-01

$18.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

4

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$20.99

$

Usually ships in 3-10 days

0

Husqvarna 586548101

HARNESS.LED.LIGHT.RZ

Note: For all EXCEPT 967680901-00, 967844901-00. NOT SHOWN.

$26.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 587044518

HOSE.3/16".VAPOR.LINE.18"LGTH

Note: For 967680901-00

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

8

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$28.99

$

In Stock, Qty 7

0

27

Husqvarna 586108201

CABLE BATTERY POS RZ

$10.99

$

In Stock, only 2 left!

0

35

Husqvarna 532141841

SCREW.PAN.HEAD.#10

Note: For 967954002-00, 96795400300

$7.49

$

In Stock, only 2 left!

0

13

Husqvarna 510030003

BRACKET.PNT.MOUNT.BATTERY.EDIP
(Superseded to 510030001)

$51.99

$

In Stock, only 1 left!

0

12

Husqvarna 579411601

BATTERY, 12 V 300 AMP DRY

$

$

Not available

9

Husqvarna 587601501

SWITCH.INTLK.RZ.RFRSH.BUTTON

Note: For 967681001-00, 967681002-00, 970459001-00, 970459001-01

$13.99

$

In Stock, Qty 5

0

18

Husqvarna 586123906

FUEL.HOSE.SHUT.OFF.ASM.10".18"

Note: For 967681001-00, 967681002-00, 970459001-00, 970459001-01

$20.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

20

Husqvarna 587198601

HARNESS.BTTRY.CABLE.RZ.REFRESH

$31.99

$

Usually ships in 3-10 days

0

3

Husqvarna 589924702

TANK.ASM3"NECK.NOCAP.NOSHDRZ18
(Superseded to 589924705)

Note: Fits 2.75" filler neck. For 967680901-00, 967681001-00, 967681002-00, 970459001-00, 970459001-01

$157.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck. For 967680901-00

$20.99

$

In Stock, only 1 left!

0

2

Husqvarna 586621201

CONSOLE.LH.ASM
(Superseded to 586621202)

$91.99

$

In Stock, only 4 left!

0

43

Husqvarna 587044803

HOSE.1/4".LOW.PERM.FUEL.LN.3"

Note: For 96784490101, 96784490102

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532139277

STEM FUEL TANK

$8.99

$

In Stock, Qty 8

0

33

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available
