Z 254 F (967954001-01) - Husqvarna 54" Zero-Turn Mower (2020-05) MOWER DECK / CUTTING DECK Parts Diagram

54" Zero-Turn Mower

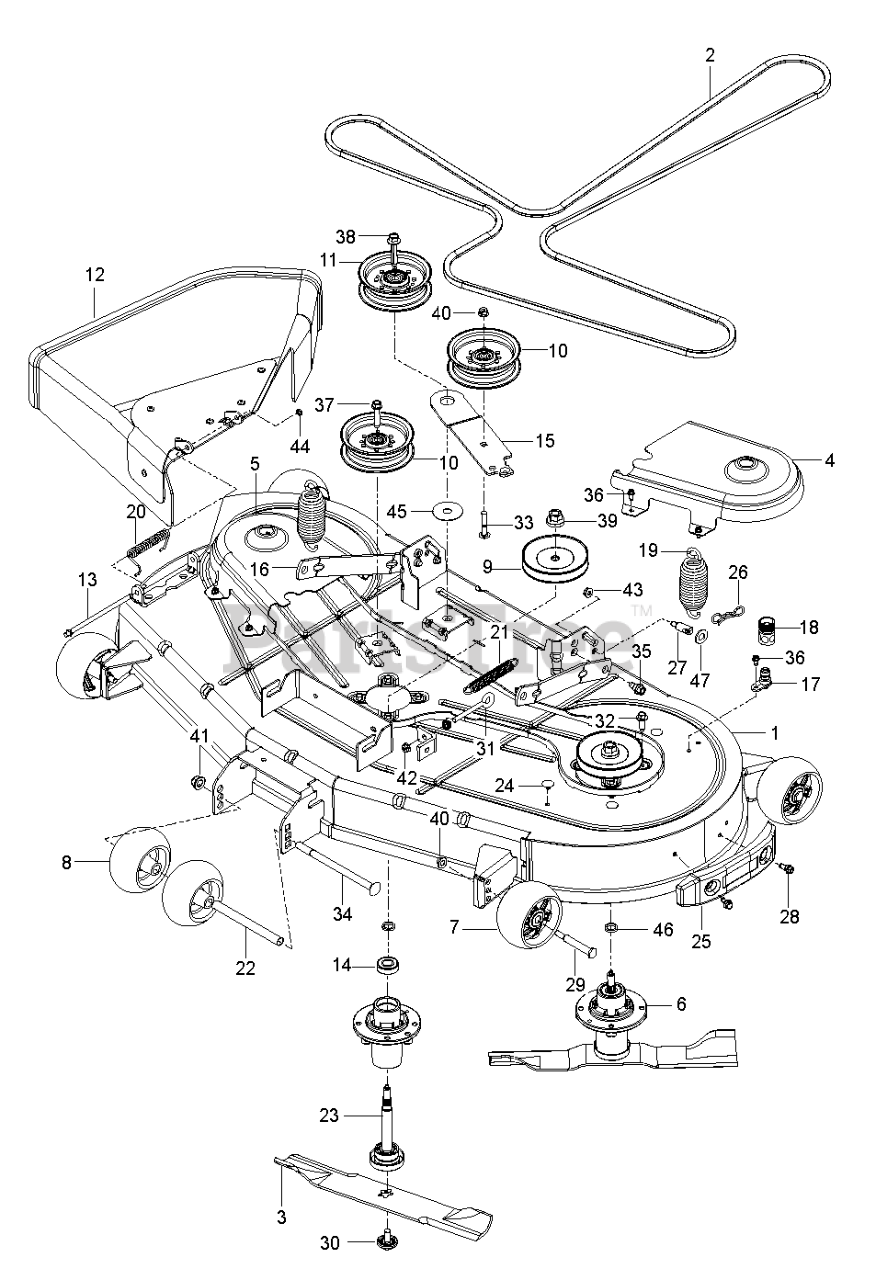

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 592951801

BELT.54CC.DRIVE.DECK.RZ.LONG

$103.99

$

In Stock, Qty 6

0

21

Husqvarna 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV
(Superseded to 532197251)

$11.99

$

In Stock, only 2 left!

0

8

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, only 3 left!

0

39

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

30

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

12

Husqvarna 590632201

DEFLECTOR ASSY 54 CLEARCUT RES

$74.99

$

In Stock, Qty 12

0

41

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

42

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

$6.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

7

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 590304203

COVER 54 CLEARCUT RH MANDREL G

$26.99

$

In Stock, only 1 left!

0

27

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

46

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

18

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 5

0

37

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

14

$13.99

$

In Stock, Qty 11

0

29

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 582219602

ARM IDLER ARM, CLEARCUT 54 BLA

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 10

0

32

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 10

0

3

Husqvarna 582760501

BLADE CC54 PZ STYLE HI LIFT BL
(Superseded to 582760502)

$39.99

$

In Stock, only 4 left!

0

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

10

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

11

Husqvarna 532197380

RB PULLEY.IDLER.4.50/HUB SPEC
(Superseded to 532196104)

$43.99

$

In Stock, Qty 16

0

34

Husqvarna 872140864

RHSNB 1/2-13 X 8 GR5 ZD

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

31

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

4

Husqvarna 590304403

COVER.PNT.54CC.MNDRL.LH.ZTR.GY

$20.99

$

In Stock, only 1 left!

0

25

Husqvarna 590732501

BUMPER ASSY 54 CLEARCUT TRIM S

$10.99

$

In Stock, only 4 left!

0

17

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 10

0

23

Husqvarna 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 8

0

43

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

38

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532175708

PULLEY.MANDREL.CRD 107CM.DOM.

$17.99

$

In Stock, only 2 left!

0

1

Husqvarna 582359102

DECK.SVC.54.CLRCT.RZ.MS668
(Superseded to 591120001)

$1709.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 5

0

13

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

24

Husqvarna 589813301

PLUG CHRISTMAS TREE

$3.49

$

In Stock, only 4 left!

0

6

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 11

0
