Z 254 F (967844901-02) - Husqvarna 54" Zero-Turn Mower (2020-08) SEAT 3 Parts Diagram

54" Zero-Turn Mower

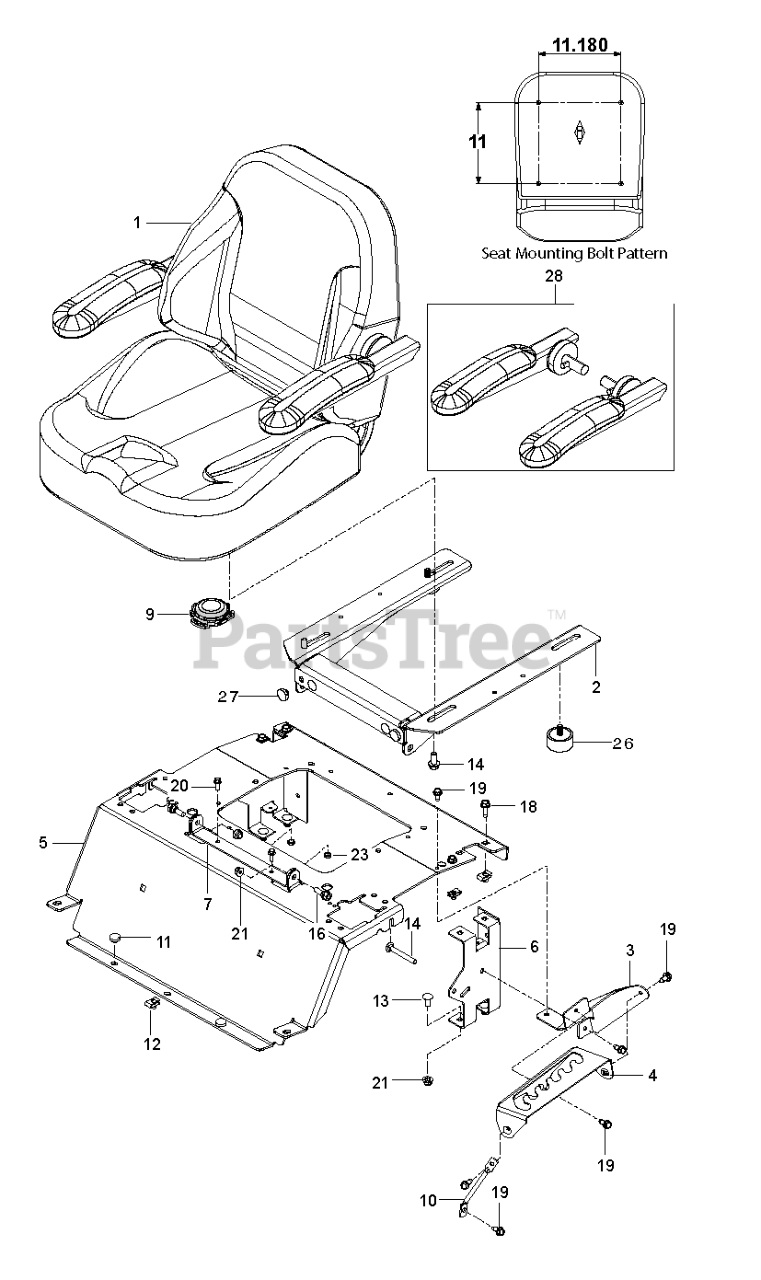

SEAT 3 Parts Diagram

  • Title

10

Husqvarna 586428601

SUPPORT.LEG.DECK.LIFT

$6.99

$

Usually ships in 3-10 days

0

1

Husqvarna 598696602

Seats

$740.99

$

Usually ships in 3-10 days

0

26

Husqvarna 582478702

BUMPER 5/16-18 CLEAR ZINC

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 586221202

PLATE.DECK.LIFT.X431

$17.99

$

In Stock, Qty 5

0

27

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

16

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 586220802

PLATE.SUPPORT.DECK.LIFT.X431

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna 596992703

Seat pan

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

19

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

20

Husqvarna 589028501

SCREW.FLG.LOCKING.1/4-20X.75

$

$

Not available

18

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, Qty 5

0

28

Husqvarna 590873402

SEAT KING 18" WOOD BTM, ARM

$182.99

$

Usually ships in 3-10 days

0

14

Husqvarna 592858702

Bolts

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 589761211

PLATE SEAT SUPPORT; RZ ORANGE

$125.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

12

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

6

Husqvarna 580308202

SUPPORT REAR SEAT BLACK

$22.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

7

Husqvarna 590899902

BRACKET.SEAT.REINF.X672

$10.99

$

Usually ships in 3-10 days

0
