Z 254 (967324301-00) - Husqvarna 54" Zero-Turn Mower (2016-10) ENGINE MOUNTING GUARDS MUFFLER Parts Diagram

54" Zero-Turn Mower

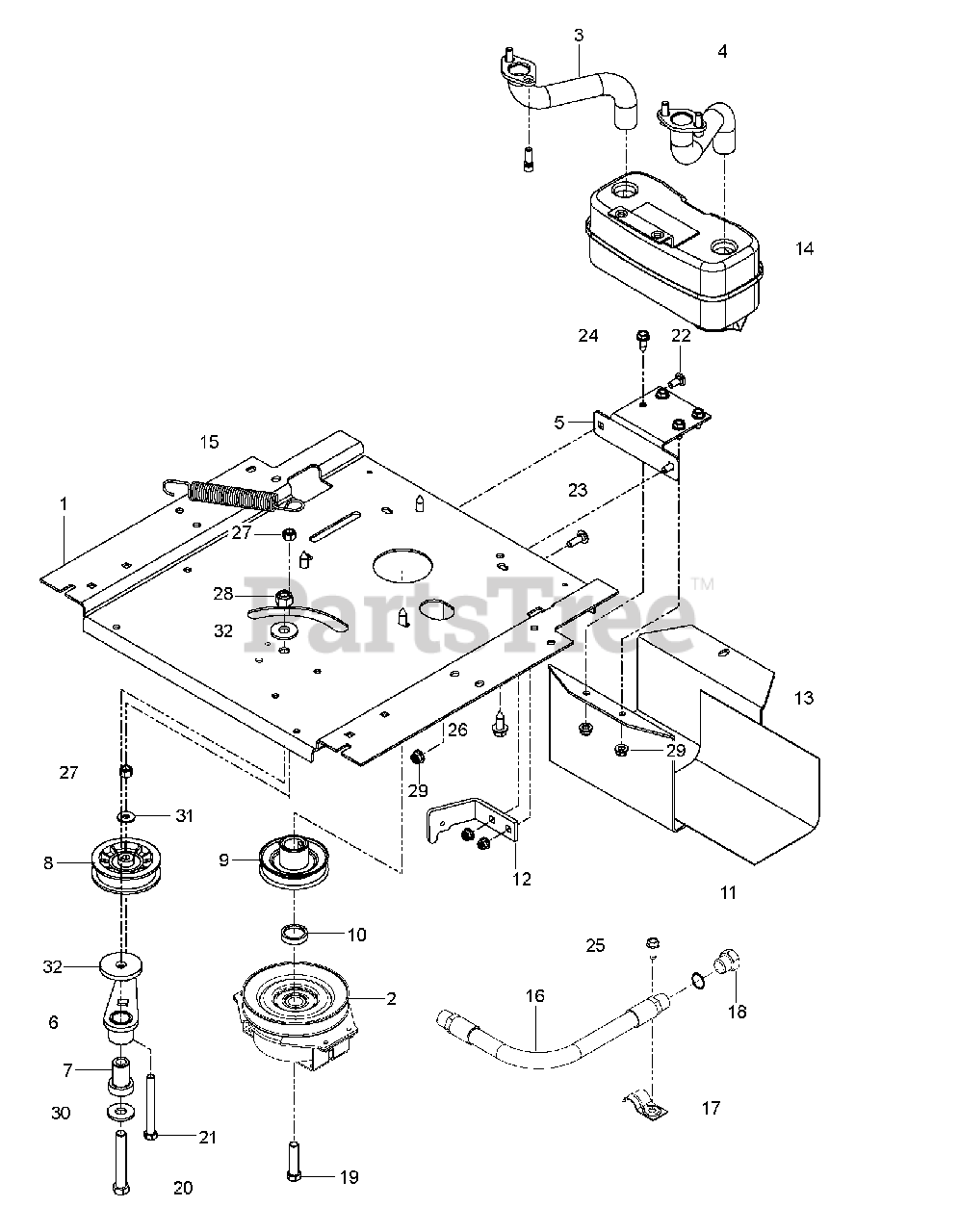

ENGINE MOUNTING GUARDS MUFFLER Parts Diagram

  • Title

1

Husqvarna 588017102

PLATE.ENGINE.PNT.23"FRAME.EDIP
(Superseded to 598736102)

$74.99

$

Usually ships in 3-10 days

0

2

Husqvarna 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$278.99

$

In Stock, only 1 left!

0

3

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

$20.99

$

In Stock, only 2 left!

0

4

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

$22.99

$

In Stock, only 1 left!

0

5

Husqvarna 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

6

Husqvarna 539112092

IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, Qty 8

0

7

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 587537401

PULLEY.ENGINE

$26.99

$

In Stock, only 3 left!

0

10

Husqvarna 587660101

SPACER.SPACER.625 W/OGURA.LCC

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587633302

CLUTCH.STOP.OGURA LCC.BLACK

$9.49

$

In Stock, only 1 left!

0

13

Husqvarna 587451202

GUARD.MUFFLER.WO.TOW.HITCHX431

$51.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 2 left!

0

15

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 11

0

16

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$31.99

$

In Stock, only 1 left!

0

17

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

18

Husqvarna 585807101

PLUG OIL DRAIN

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 581332803

CLUTCH BOLT7/16-20X2.5 GR524HR
(Superseded to 581332806)

$8.99

$

In Stock, Qty 10

0

20

Husqvarna 874780852

HCS 1/2-13 X 3-1/4 GD 5 ZD

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 874520656

HCS 3/8-16X3-1/2 TAPBLT GR5 ZD

$

$

Not available

22

Husqvarna 872140508

BOLT

$2.99

$

Usually ships in 3-10 days

0

23

Husqvarna 872140506

BOLT 5/16-18 X3/4 ZN/YEL GR 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 872140512

BOLT
(Superseded to 582736101)

$

$

Not available

25

Husqvarna 817490510

CAPSCREW.HXHD.FLG.5/16-18X.625

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 19

0

27

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

31

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 10

0
