Z 254 (967045201-01) - Husqvarna 54" Zero-Turn Mower (2018-06) SEAT Parts Diagram

54" Zero-Turn Mower

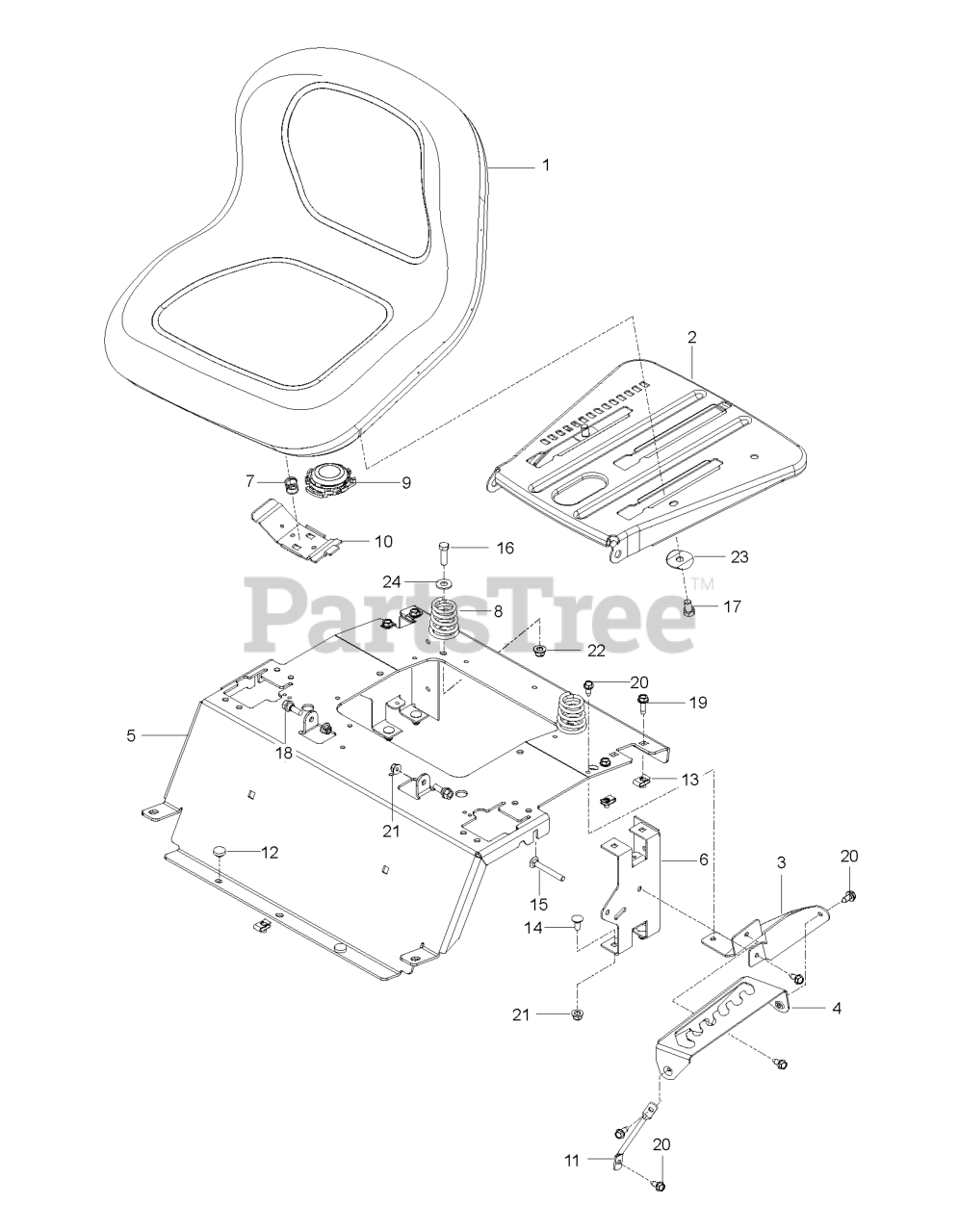

SEAT Parts Diagram

  • Title
1

Husqvarna 532439822

SEAT.TH150.MS498.GRY.HUSQ.TEX

Note: . 9

$218.99

$

In Stock, only 4 left!

0

2

Husqvarna 587232002

Seat Slide Plate, Pnt
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 586220802

PLATE.SUPPORT.DECK.LIFT.X431

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 586221202

PLATE.DECK.LIFT.X431

$17.99

$

In Stock, Qty 5

0

5

Husqvarna 589481206

PLATE.SUPPORT.SEAT.RZ.ORANGE
(Superseded to 589761211)

$125.99

$

Usually ships in 3-10 days

0

6

Husqvarna 580308202

SUPPORT REAR SEAT BLACK

$22.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 589483501

SPRING.COMPRESS.SEAT.

$9.49

$

In Stock, only 2 left!

0

9

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

10

Husqvarna 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

11

Husqvarna 586428601

SUPPORT.LEG.DECK.LIFT

$6.99

$

Usually ships in 3-10 days

0

12

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, Qty 5

0

13

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

14

Husqvarna 872140506

BOLT 5/16-18 X3/4 ZN/YEL GR 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874780620

BOLT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 817490512

SCREW
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

21

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

23

Husqvarna 501051801

Winged Washer, 38Id 1

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 819141614

WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532421499

Armrest Kit, 15" Tex
(Superseded to 582384601)

Note: OPTIONAL

$68.99

$

In Stock, only 1 left!

0
