Z 248 F (970467501-00) - Husqvarna 48" Zero-Turn Mower (2020-03) MOWER DECK / CUTTING DECK Parts Diagram

48" Zero-Turn Mower

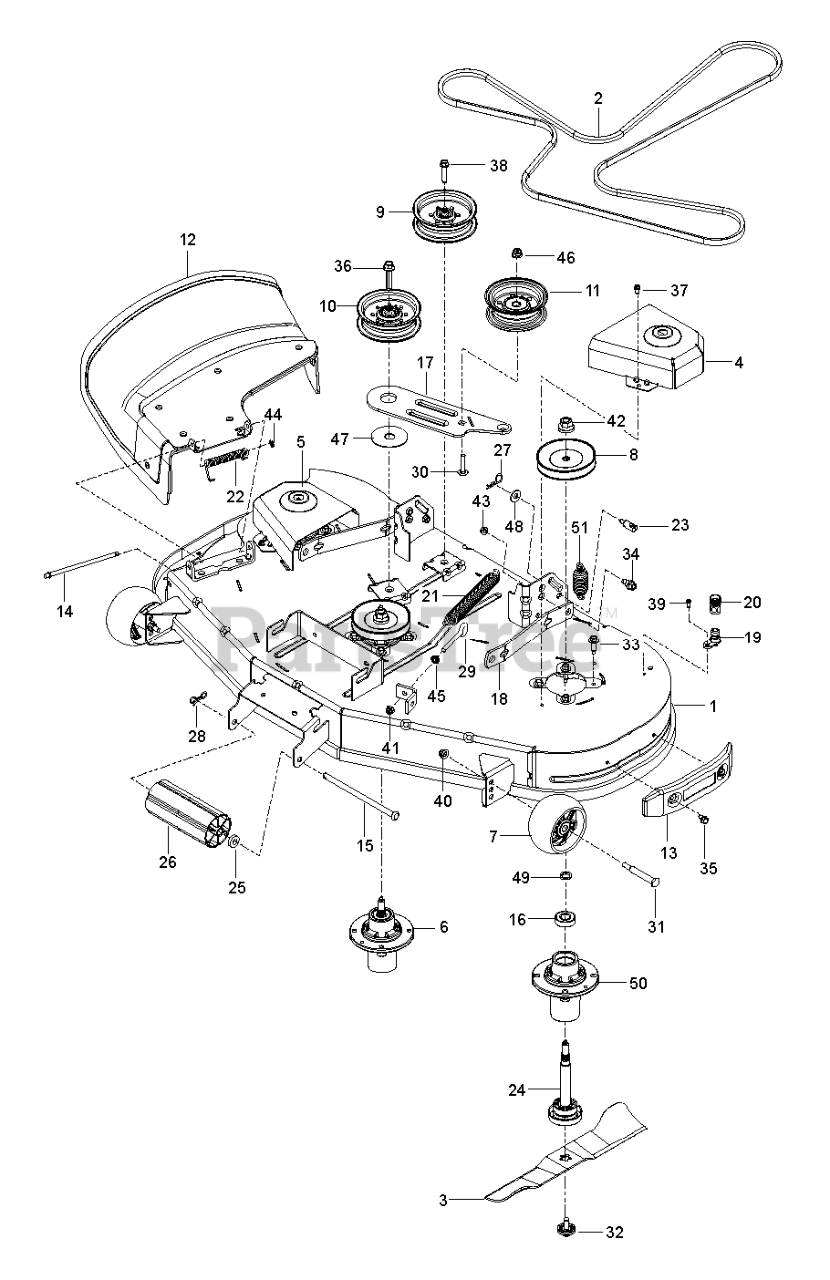

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

40

Husqvarna 521996502

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 3 left!

0

14

Husqvarna 595297001

Rods

$5.99

$

In Stock, Qty 20+

0

37

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 596136201

Bolts

$4.99

$

In Stock, only 1 left!

0

31

Husqvarna 596434404

Bolts

$5.99

$

In Stock, Qty 20+

0

44

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 588812402

COVER.PNT.MANDREL.RH.GREY

$39.99

$

In Stock, only 1 left!

0

19

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

6

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, only 4 left!

0

39

Husqvarna 596637301

Screws

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 10

0

4

Husqvarna 588812802

COVER.PNT.MANDREL.LH.ZTR.GREY

$31.99

$

In Stock, only 2 left!

0

51

Husqvarna 596482001

Springs

$7.99

$

In Stock, Qty 5

0

33

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 582541103

BUMPER 48 CLEARCUT TRIM SIDE A

$13.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 7

0

3

Husqvarna 588811002

BLADE.BAGGER.RES.CLRCT.48".BLK

$34.99

$

In Stock, only 4 left!

0

50

Husqvarna 539131767

MANDREL, HOUSING - CAST IRON
(Superseded to 539131898)

$80.99

$

In Stock, only 4 left!

0

48

Husqvarna 596320001

Washers

$3.99

$

In Stock, only 2 left!

0

46

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 588980701

DEFLECTOR.ASM.48".CLRCT.RES.OR

$

$

Not available

23

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 8

0

20

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 7

0

8

Husqvarna 532173435

MANDREL.PULLEY.38.BRIGHT.ZINC

$22.99

$

In Stock, Qty 8

0

24

Husqvarna 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 13

0

42

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

49

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 588812202

ARM.PNT.CLUTCHING.EDIP
(Superseded to 529470302)

$7.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 7

0

2

Husqvarna 582558001

BELT.DECK

$97.99

$

In Stock, Qty 6

0

36

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

38

Husqvarna 596564003

BOLT;HEX_3/8-16 X 1.78.CLRZINC

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 596240801

GSPW Bolts

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

34

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

27

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 14

0

16

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

9

Husqvarna 539113413

BELT SHIELD - L.H. ORANGE

$78.99

$

Usually ships in 3-10 days

0

1

Husqvarna 583810101

DECK SVC.48.CC.RZ 668
(Superseded to 583810104)

$911.99

$

Usually ships in 3-10 days

0

15

Husqvarna 594092501

Rods

$6.99

$

In Stock, Qty 20+

0

21

Husqvarna 582504001

SPRING.EXTENSION

$7.99

$

Usually ships in 3-10 days

0

45

Husqvarna 596039201

GSPW Hardware

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

25

Husqvarna 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 6

0

18

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0
