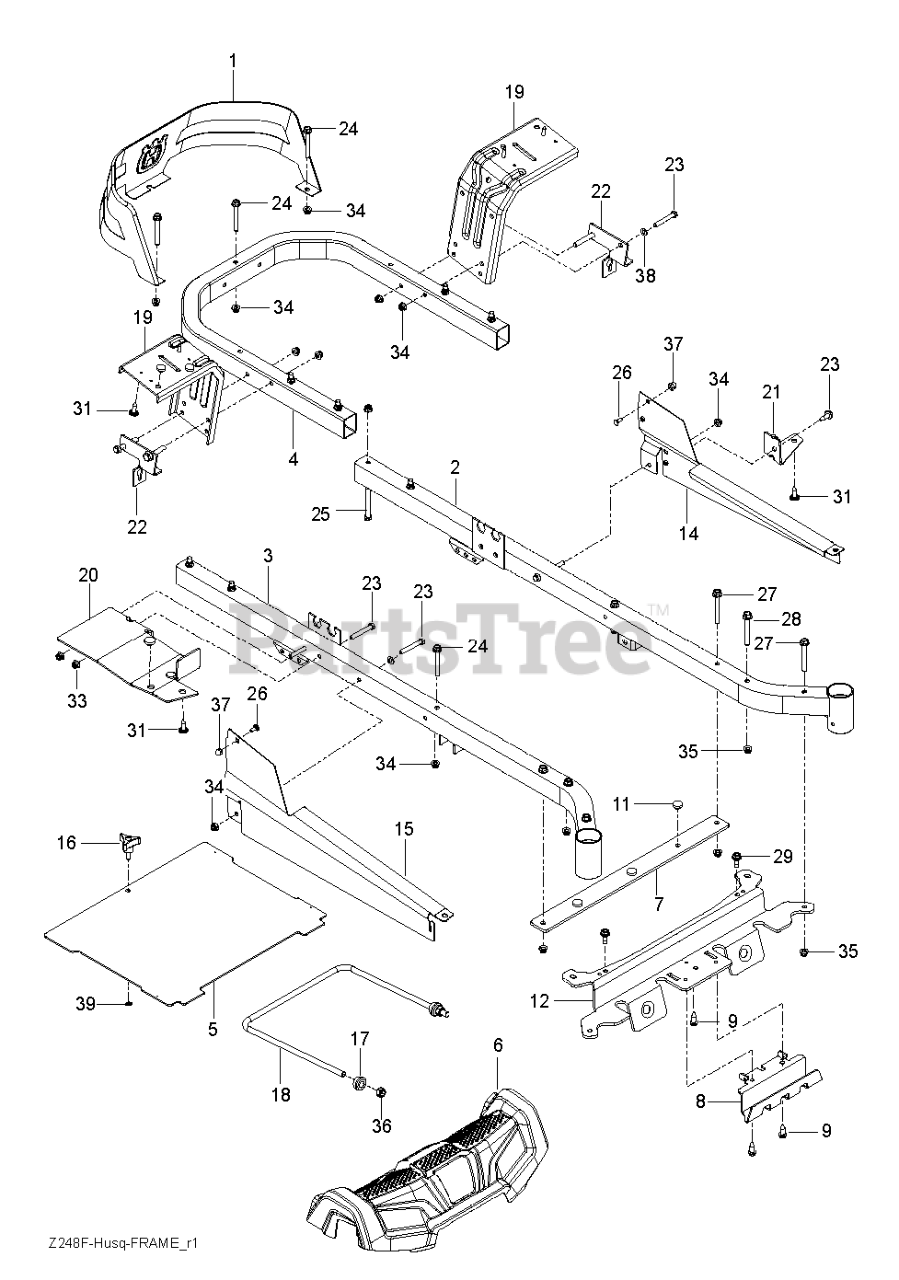

Z 248 F (967953903-00) - Husqvarna 48" Zero-Turn Mower (2018-10) FRAME Parts Diagram

48" Zero-Turn Mower

FRAME Parts Diagram

  • Title

33

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

37

Husqvarna 585938101

NUT ACORN,FLANGED,5/16-18

$3.49

$

In Stock, only 1 left!

0

36

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

7

Husqvarna 585523004

FOOTREST.PLATE.SUPPORT.X431

$

$

Not available

15

Husqvarna 585331502

COVER.RAIL.LH.RZ.X668

$43.99

$

Usually ships in 3-10 days

0

23

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$

$

Not available

29

Husqvarna 586881101

BOLT.5/16-18.THRD.ROLL.SHOULDR

$4.99

$

In Stock, only 3 left!

0

27

Husqvarna 577117701

HHFS 3/8-16 X 3 GRD 5 ZD
(Superseded to 577117702)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585523604

SUPPORT.PNT.LH.CONSOLE.FRONT

$39.99

$

Usually ships in 3-10 days

0

28

Husqvarna 586654301

BOLT SHOULDER,FLANGED,3/8-16X3

$

$

Not available

19

Husqvarna 521938101

LINK, FRONT SUSP.

$

$

Not available

20

Husqvarna 585523404

SUPPORT.PNT.RH.CONSOLE.FRONT
(Superseded to 593118304)

$20.99

$

Usually ships in 3-10 days

0

4

Husqvarna 584991002

TUBE.PNT.FRAME.RER.HUSQ.23".RZ

$85.99

$

Usually ships in 3-10 days

0

1

Husqvarna 585039802

GUARD.ENGINE.HUSQ.RZ.X498

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589283302

FRAME.TUBE.RZ.MAIN.WELD.LH.ORG

$91.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585523204

SKID.PLATE.PNT.RZ.REF.SIVER
(Superseded to 593118804)

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 581448602

PLATE FOOT ORANGE X668

Note: W/ SFTY DECALS

$

$

Not available

26

Husqvarna 585940001

BOLT.CARRIAGE.5/16-18.7/16

$3.49

$

In Stock, only 1 left!

0

11

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, Qty 5

0

9

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

24

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 585523604

SUPPORT.PNT.LH.CONSOLE.FRONT

$39.99

$

Usually ships in 3-10 days

0

3

Husqvarna 589283402

FRAME.TUBE.RZ.MAIN.WELD.RH.ORG

$91.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532195263

BUSHING SPHERICAL SUSP. FRONT

$

$

Not available

39

Husqvarna 532423063

WASHER 5/16"
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

25

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5

$

$

Not available

12

Husqvarna 585523104

CROSS.PNT.MEMBER.BLK

$96.99

$

Usually ships in 3-10 days

0

22

Husqvarna 585474302

BRKT ROD.BYPASS.EZT.X431

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

6

Husqvarna 586703801

COVER.FOOTREST.REFRESH.ASM

Note: W/ DECALS

$120.99

$

In Stock, only 2 left!

0

35

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

14

Husqvarna 585331602

COVER.RAIL.RH.RZ.X668

$43.99

$

Usually ships in 3-10 days

0

38

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+
