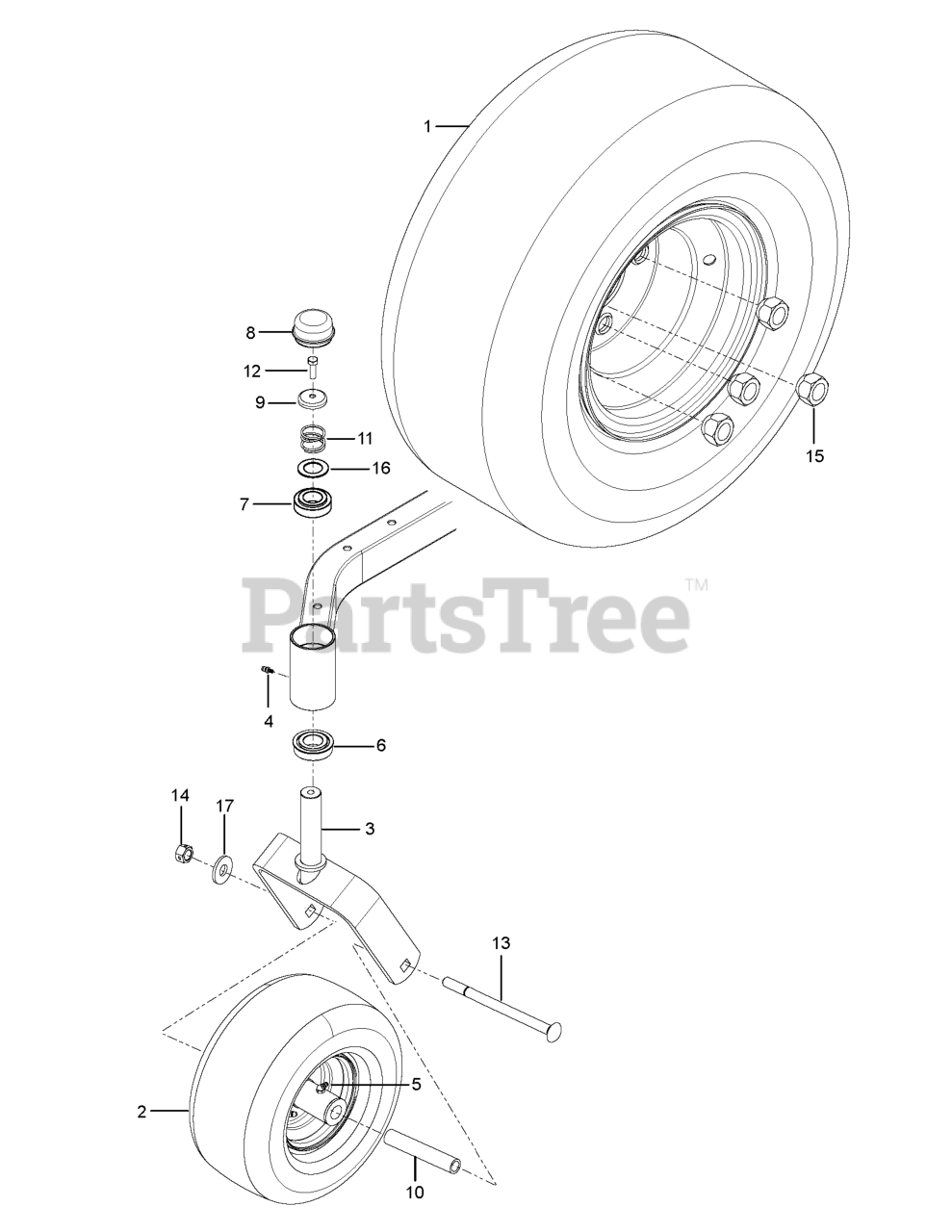

Z 248 F (967844801-01) - Husqvarna 48" Zero-Turn Mower (2018-10) WHEELS & TIRES Parts Diagram

48" Zero-Turn Mower

WHEELS & TIRES Parts Diagram

  • Title

17

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

9

Husqvarna 539115749

CASTER.PLUG

$

$

Not available

11

Husqvarna 539115747

SPRING, CASTER

$

$

Not available

13

Husqvarna 576601501

RHSNB 1/2-13 X 7.5
(Superseded to 576601503)

$11.99

$

In Stock, Qty 14

0

6

Husqvarna 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

5

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

12

Husqvarna 874950516

5/16-18X1 HHB G5W/NY

$

$

Not available

2

Husqvarna 576588602

WHEEL ASSY, WIDE, RZ

$121.99

$

In Stock, only 4 left!

0

3

Husqvarna 586650302

YOKE.PNT.CASTER.ORG
(Superseded to 586650309)

$56.99

$

In Stock, only 2 left!

0

15

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

8

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 4 left!

0

10

Husqvarna 585995401

SPACER.PIVOT

$7.99

$

In Stock, only 3 left!

0

1

Husqvarna 590486601

WHEEL CARLSTAR 18X9.5-8" SILVE

$182.99

$

Usually ships in 3-10 days

0

14

Husqvarna 873930800

NUT. 1/2-13 HEX CNTRLK GR 5 ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

7

Husqvarna 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0
