Z 248 F (967336702-01) - Husqvarna 48" Zero-Turn Mower (2016-01) ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

48" Zero-Turn Mower

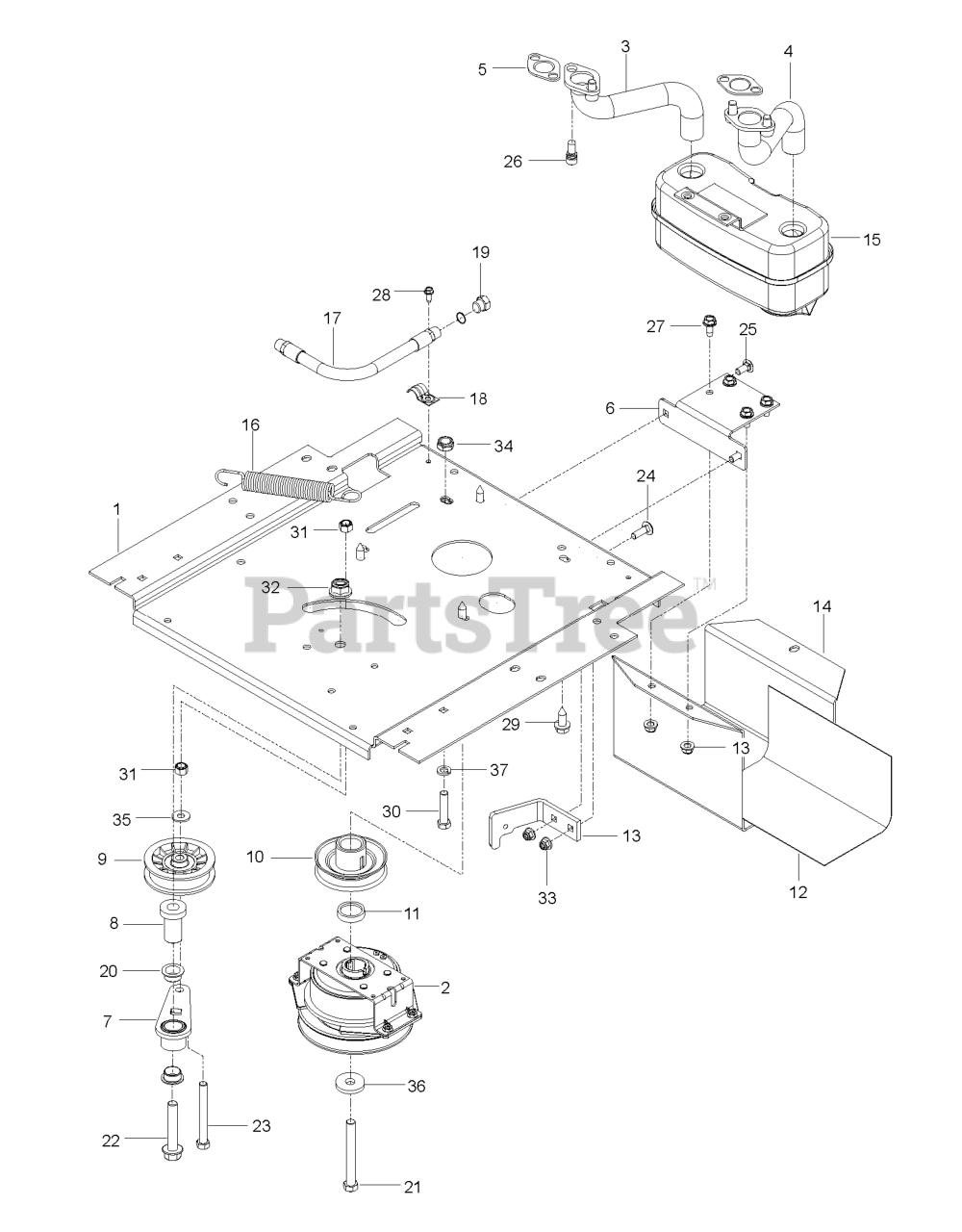

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

26

Husqvarna 532192443

SCREW.TUBE.MUFFLER.VANGUARD

$4.99

$

In Stock, only 2 left!

0

35

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

22

Husqvarna 582539501

BOLT.FLANGE.1/2-13 X 2.75.GRD5

$

$

Not available

31

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

In Stock, Qty 20+

0

37

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 16

0

25

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 587660101

SPACER.SPACER.625 W/OGURA.LCC

$6.99

$

In Stock, only 3 left!

0

000000000

Note: Engine, Briggs & Stratton VanguardT 17.1 kW (23 hp). For engine replacement parts, see a B&S Dealer.

$

$

Not available

1

Husqvarna 588017102

PLATE.ENGINE.PNT.23"FRAME.EDIP
(Superseded to 598736102)

$74.99

$

Usually ships in 3-10 days

0

19

Husqvarna 585807101

PLUG OIL DRAIN

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

23

Husqvarna 874520656

HCS 3/8-16X3-1/2 TAPBLT GR5 ZD

$

$

Not available

8

Husqvarna 582538901

SPINDLE.IDLER
(Superseded to 582538902)

$5.99

$

In Stock, only 4 left!

0

4

Husqvarna 532191548

EXHAUST.TUBE.MUFFLR.LH.VANG

$84.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532448145

ARM IDLER
(Superseded to 583593901)

$13.99

$

In Stock, only 4 left!

0

15

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 4 left!

0

14

Husqvarna 587451202

GUARD.MUFFLER.WO.TOW.HITCHX431

$51.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

13

Husqvarna 587633302

CLUTCH.STOP.OGURA LCC.BLACK

$9.49

$

In Stock, only 1 left!

0

33

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 501603701

BEARING.FLANGED.PLASTIC.3/4ID

$6.99

$

In Stock, only 4 left!

0

28

Husqvarna 817490410

SCR 1/4-20X5/8 HEX SELF TAP ZD

$

$

Not available

30

Husqvarna 539976949

BOLT, HCS 3/8-16X1-3/4

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 589543901

KIT.ARM.IDLER.RZ

Note: NOT SHOWN

$37.99

$

Usually ships in 3-10 days

0

27

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

10

Husqvarna 587537401

PULLEY.ENGINE

$26.99

$

In Stock, only 3 left!

0

17

Husqvarna 584825502

HOSE ASSY OIL DRAIN. VAN GUARD

$20.99

$

Usually ships in 3-10 days

0

6

Husqvarna 581886702

BRACKET MUFFLER MS431BLK

$34.99

$

In Stock, only 1 left!

0

36

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

21

Husqvarna 581332803

CLUTCH BOLT7/16-20X2.5 GR524HR
(Superseded to 581332806)

$8.99

$

In Stock, Qty 9

0

29

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

24

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532191549

EXHAUST.TUBE.MUFFLR.RH.VANG

$91.99

$

Usually ships in 3-10 days

0

2

Husqvarna 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$278.99

$

In Stock, only 1 left!

0

16

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 8

0

5

Husqvarna 532192442

GASKET.MUFF 806237 NOW 806425

$14.99

$

Usually ships in 3-10 days

0
