Z 248 F (967303602-00) - Husqvarna 48" Zero-Turn Mower (2015-01) MOWER DECK / CUTTING DECK Parts Diagram

48" Zero-Turn Mower

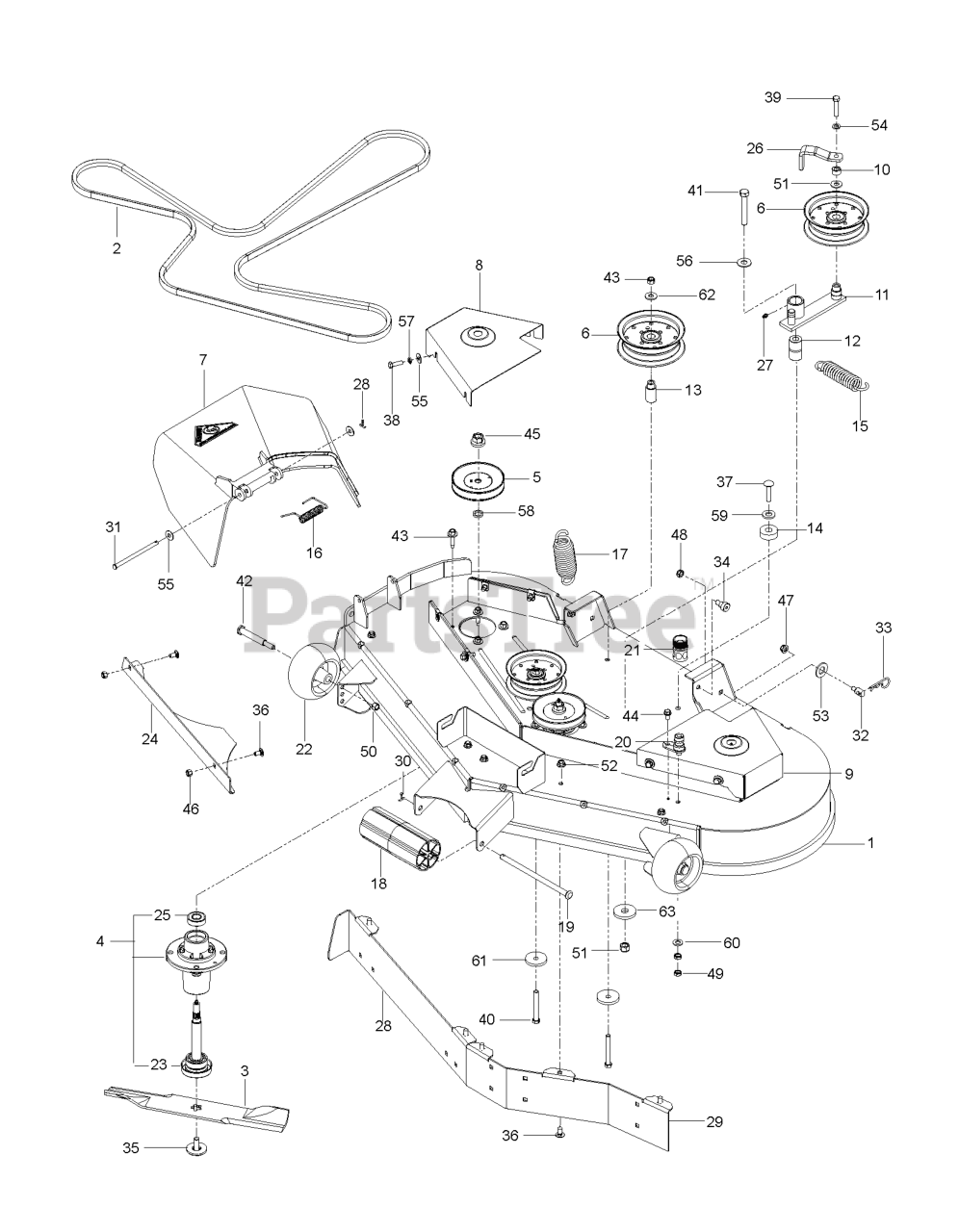

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

58

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 539114981

GUIDE, BELT

$

$

Not available

17

Husqvarna 539118762

SPRING

$

$

Not available

28

Husqvarna 583833601

KIT.BOLT.BAFFLES.FRONT.48".ORN

$43.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

33

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 819212113

WASHER
(Superseded to 583609901)

$

$

Not available

35

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

12

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

62

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

49

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

24

Husqvarna 539113427

CONFINEMENT PLATE 48" BLK

$

$

Not available

7

Husqvarna 539110732

DISCHARGE CHUTE 48"

$53.99

$

In Stock, Qty 6

0

2

Husqvarna 539109243

BELT, DECK

$85.99

$

In Stock, only 2 left!

0

16

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

41

Husqvarna 874780852

HCS 1/2-13 X 3-1/4 GD 5 ZD

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539923515

SPACER

$5.99

$

In Stock, only 2 left!

0

39

Husqvarna 874780628

BOLT
(Superseded to 582740701)

$6.49

$

In Stock, only 2 left!

0

38

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

8

Husqvarna 539113411

BELT SHIELD - R.H. ORANGE

$78.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

55

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5

$

$

Not available

48

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

20

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

Note: ALUMINUM

$79.99

$

In Stock, Qty 20+

0

18

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

6

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

In Stock, Qty 12

0

31

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

3

Husqvarna 539113425

BLADE, 16-1/4"

$22.99

$

In Stock, Qty 19

0

27

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

57

Husqvarna 810030500

WASH.5/16.SLW.ZD
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

14

Husqvarna 539116378

ISO-MOUNT BUSHING

$6.49

$

In Stock, Qty 7

0

47

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

60

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532173436

PULLEY MANDREL

$17.99

$

In Stock, Qty 20+

0

56

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539112198

IDLER ARM

$121.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539113413

BELT SHIELD - L.H. ORANGE

$78.99

$

Usually ships in 3-10 days

0

59

Husqvarna 819171713

WASHER STEEL

$3.99

$

In Stock, Qty 8

0

63

Husqvarna 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 10

0

45

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

23

Husqvarna 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 13

0

50

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990923

RHSNB 3/8-16X1-3/4

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

19

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

1

Husqvarna 595965601

DECKS
(Superseded to 583810104)

Note: W/ DECALS

$911.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539131898

MANDREL ASM, CAST IRON

Note: CAST IRON

$80.99

$

In Stock, only 4 left!

0

36

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 583833601

KIT.BOLT.BAFFLES.FRONT.48".ORN

$43.99

$

Usually ships in 3-10 days

0

46

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 7

0
