Z 246 (967323902) - Husqvarna 46" Zero-Turn Mower (2015-01) STEERING Parts Diagram

46" Zero-Turn Mower

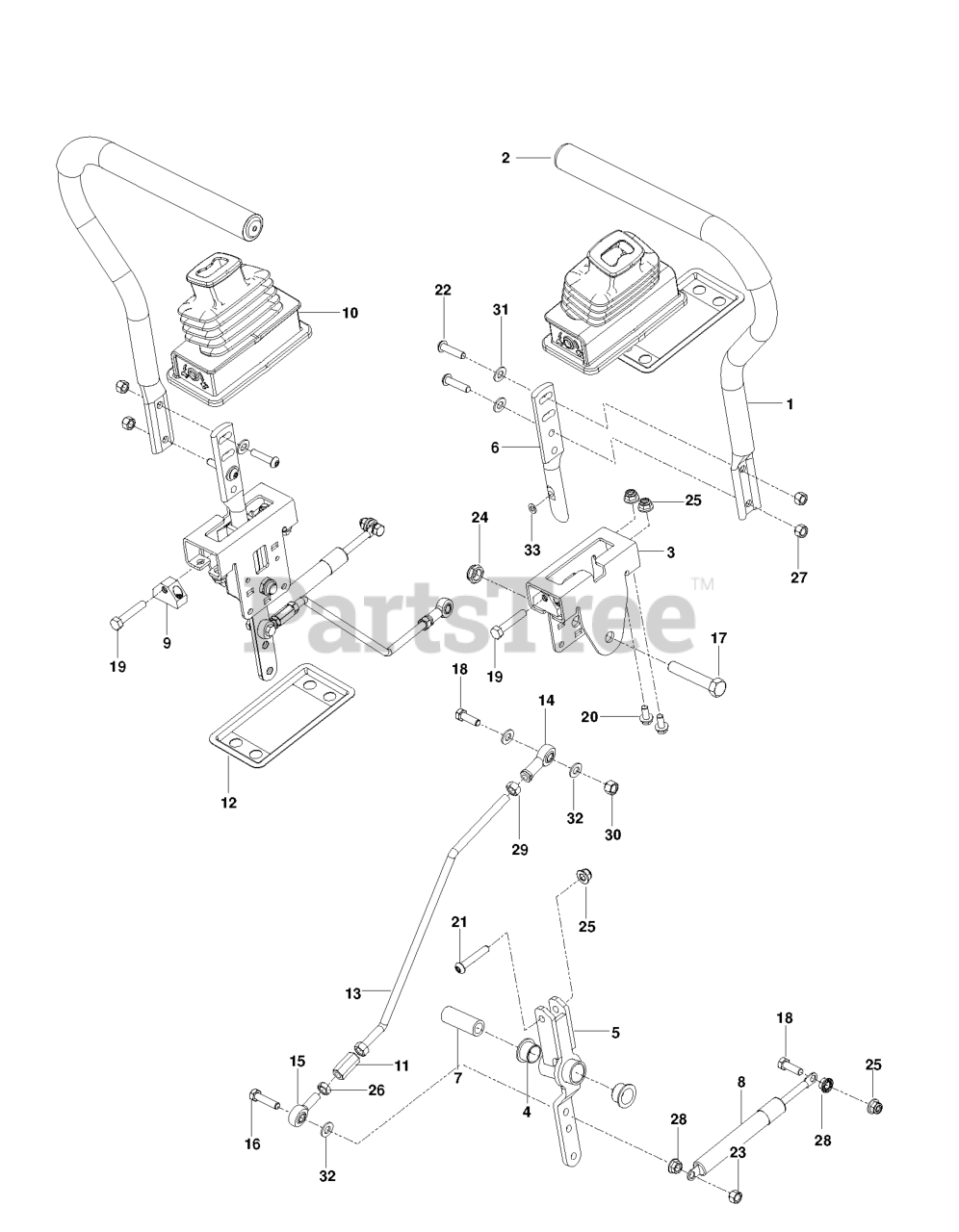

STEERING Parts Diagram

  • Title
1

Husqvarna 581826701

CONTROL.TUBE.RZ (2 2)

$36.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525392901

GRIP, DRIVE LEVER

$

$

Not available

3

Husqvarna 585124705

BRACKET.CONTROLS.ZTR.X431

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 5

0

5

Husqvarna 576140301

LEVER CONTROL PIVOT

$24.99

$

In Stock, only 4 left!

0

6

Husqvarna 587601702

CONTROL.LEVER.HANDLE

$

$

Not available

7

Husqvarna 584927201

SPACER.PIVOT.CONTROL

$5.99

$

In Stock, only 4 left!

0

8

$66.99

$

In Stock, only 3 left!

0

9

Husqvarna 581437501

BLOCK TRACKING CONTROL ZTR

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 585831601

BOOT.STEERING.LEVER

$22.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539116689

ROD END COUPLER

$

$

Not available

12

Husqvarna 585488202

CONTROL.BOOT.FLANGE.X431

$9.49

$

In Stock, only 3 left!

0

13

Husqvarna 580624201

ROD MOTION CONTROL

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 539115729

RH ROD END
(Superseded to 579764601)

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539116690

RB ROD.END.LH
(Superseded to 588692502)

$10.99

$

In Stock, only 1 left!

0

$7.49

$

In Stock, only 2 left!

0

17

Husqvarna 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 585986101

SCREW.SHAKEPROOF.1.25.BLACK

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

21

Husqvarna 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 585985901

BUTTONHEAD.5/16-18X1.125.BLACK

$3.49

$

In Stock, only 4 left!

0

23

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

25

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 585986001

NYLOCK.NUT.5/16-18 BLACK

$

$

Not available

28

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

29

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539115617

5/16-18 THIN PROF NY

$

$

Not available

31

Husqvarna 586309101

WASHER.11/32X11/16 BLACK
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 587614201

WASHER.11/32ID.11/16OD.116THIC

$3.49

$

In Stock, only 2 left!

0
